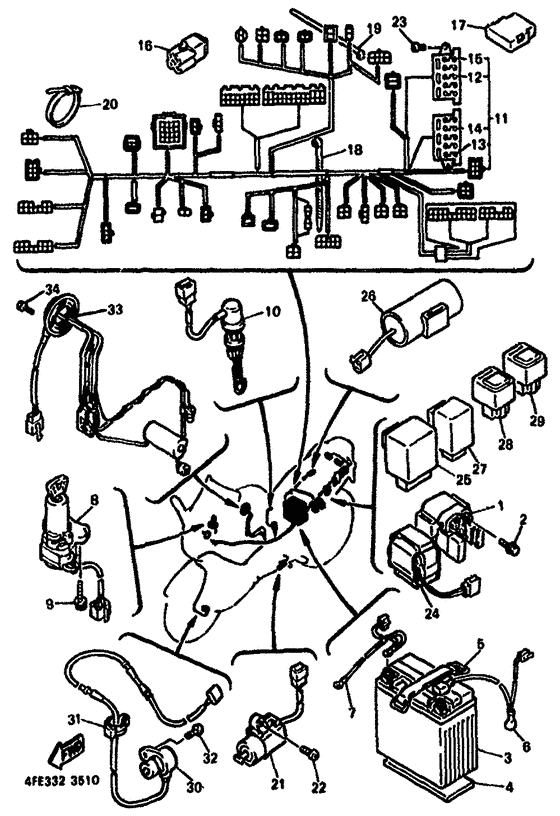

Electrical 2 Diagram Yamaha GTS1000
- Year
- 1994
- Colour
- Deep Red Cocktail 2 (DRC2; 0376)
- Model code
- 4FV4
- Sales region
- Europe (General) (999)
- Engine Capacity
- 1000
- Model
- GTS1000A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4BH-81940-00-00 Starter Relay Assy (Rc19-005) |
4BH-81940-00-00 |
from US $97.40 |
||
| replacement | |||||
|
1
|
1
4BH-81940-02-00 Starter Relay Assy (Rc19-005) |
4BH-81940-02-00 |
from US $108.50 |
||
|
2
|
2
95021-06008-00 Bolt, Flange |
95021-06008-00 |
from US $2.83 |
||
| replacement | |||||
|
2
|
2
95024-06008-00 Bolt, Flange |
95024-06008-00 |
from US $2.83 |
||
|
3
|
3
3XW-82100-00-00
Battery Assy (Ytx14-Bs)
|
3XW-82100-00-00 |
— | ||
| replacements | |||||
|
3
|
3
YTX-14BS0-00-00
Ytx14Bs Yuasa Battery -Sa
|
YTX-14BS0-00-00 |
— | ||
|
3
|
3
GTX-14BS0-00-00
CB12A-A GS BATTERY
|
GTX-14BS0-00-00 |
— | ||
|
4
|
4
5X2-24183-00-00 Seat, Battery |
5X2-24183-00-00 |
from US $4.53 |
||
| replacement | |||||
|
4
|
4
5Y1-82122-00-00 Seat, Battery |
5Y1-82122-00-00 |
from US $4.47 |
||
|
5
|
5
2T4-82131-00-00 Band, Battery |
2T4-82131-00-00 |
from US $9.78 |
||
|
6
|
6
4BH-82115-00-00
Wire, Plus Lead
|
4BH-82115-00-00 |
— | ||
|
7
|
7
4BH-82116-00-00 Wire, Minus Lead |
4BH-82116-00-00 |
US $21.49 |
||
|
8
|
8
4BH-82501-00-00 Main Swch Strg Lck |
4BH-82501-00-00 |
US $281.27 |
||
| replacements | |||||
|
8
|
8
4BH-82501-02-00
Switch Assy, Main
|
4BH-82501-02-00 |
— | ||
|
8
|
8
4BH-82501-01-00
Main Switch Steering Lock
|
4BH-82501-01-00 |
— | ||
|
9
|
9
90109-06614-00 Bolt |
90109-06614-00 |
from US $1.98 |
||
| replacements | |||||
|
9
|
9
901-09062-82-00 Bolt |
901-09062-82-00 |
from US $1.62 |
||
|
9
|
9
97527-06516-00 Bolt, W/ Plain |
97527-06516-00 |
from US $1.70 |
||
|
10
|
10
4FE-82530-00-00
Stop Switch Assembly
|
4FE-82530-00-00 |
— | ||
|
11
|
11
4FE-82590-00-00
Wire Harness Assembly
|
4FE-82590-00-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
1AE-82151-00-00 Fuse (30A-Bl) |
1AE-82151-00-00 |
from US $2.02 |
||
|
13
|
13
2GH-82151-00-00 Fuse (20A) |
2GH-82151-00-00 |
from US $2.13 |
||
| replacement | |||||
|
13
|
13
2GV-82151-00-00 Fuse (20A-Bl) |
2GV-82151-00-00 |
from US $1.70 |
||
|
14
|
14
42X-82151-00-00 Fuse (10A-Bl) |
42X-82151-00-00 |
from US $1.66 |
||
|
15
|
15
1NL-82151-00-00 Fuse (5A-Bl) |
1NL-82151-00-00 |
from US $6.38 |
||
|
16
|
16
3YA-82378-00-00 Connector |
3YA-82378-00-00 |
from US $11.05 |
||
|
17
|
17
4BH-87272-00-00
Cap
|
4BH-87272-00-00 |
— | ||
|
18
|
18
904-64141-17-00
Clamp
|
904-64141-17-00 |
— | ||
| replacement | |||||
|
18
|
18
904-64151-52-00 Clamp |
904-64151-52-00 |
from US $3.05 |
||
|
19
|
19
90465-13169-00 Band |
90465-13169-00 |
from US $1.28 |
||
| replacement | |||||
|
19
|
19
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
20
|
20
5Y9-12491-00-00 Clamp 1 |
5Y9-12491-00-00 |
from US $1.81 |
||
|
21
|
21
3LD-82566-40-00 Switch, Side Stand |
3LD-82566-40-00 |
from US $61.74 |
||
| replacement | |||||
|
21
|
21
3LD-82566-41-00 Switch, Side Stand |
3LD-82566-41-00 |
US $77.69 |
||
|
22
|
22
901-57050-79-00
Screw, Pan Head
|
901-57050-79-00 |
— | ||
| replacement | |||||
|
22
|
22
985-07050-14-00 Screw, Pan Head |
985-07050-14-00 |
from US $1.42 |
||
|
23
|
23
90109-060E9-00 Bolt |
90109-060E9-00 |
from US $1.84 |
||
|
24
|
24
4BH-82576-00-00 Sensor, Lean AngleLean angle sensor |
4BH-82576-00-00 |
from US $92.45 |
||
| replacement | |||||
|
24
|
24
4BH-82576-01-00 Sensor, Lean Angle |
4BH-82576-01-00 |
from US $130.01 |
||
|
25
|
25
2UJ-81950-00-00 Relay Assy (2Uj-00) |
2UJ-81950-00-00 |
from US $73.64 |
||
| replacements | |||||
|
25
|
25
2UJ-81950-01-00 |
2UJ-81950-01-00 |
from US $73.64 |
||
|
25
|
25
2UJ-81950-02-00 Relay Assy |
2UJ-81950-02-00 |
US $73.04 |
||
|
26
|
26
1NL-81965-00-00 Condenser, Smoothing |
1NL-81965-00-00 |
from US $122.13 |
||
| replacement | |||||
|
26
|
26
1NL-81965-01-00 Condenser, Smoothing |
1NL-81965-01-00 |
from US $121.72 |
||
|
27
|
27
4BH-8195A-00-00 Relay Assembly |
4BH-8195A-00-00 |
from US $88.92 |
||
|
28
|
28
25G-81950-01-00 Relay Assy (25G-01) |
25G-81950-01-00 |
from US $34.43 |
||
| replacement | |||||
|
28
|
28
25G-81950-02-00 реле в сборереле в сборе |
25G-81950-02-00 |
from US $33.05 |
||
|
29
|
29
4U8-81950-02-00 Relay Assy (4U8-02) |
4U8-81950-02-00 |
from US $83.86 |
||
| replacement | |||||
|
29
|
29
4U8-81950-03-00 Relay Assy |
4U8-81950-03-00 |
US $97.13 |
||
|
30
|
30
4BH-85970-01-00
Wheel Sensor Assembly, Front
|
4BH-85970-01-00 |
— | ||
|
31
|
31
90465-14310-00 Clamp |
90465-14310-00 |
from US $1.98 |
||
|
32
|
32
90149-08297-00 Bolt, Button Head |
90149-08297-00 |
from US $1.56 |
||
| replacement | |||||
|
32
|
32
92014-08016-00 Bolt, Button |
92014-08016-00 |
from US $1.66 |
||
|
33
|
33
4BH-85752-00-00
Sender Unit Assembly, Fuel Mete
|
4BH-85752-00-00 |
— | ||
|
34
|
34
901-19050-71-00 Bolt, With Washer |
901-19050-71-00 |
from US $1.84 |
||
