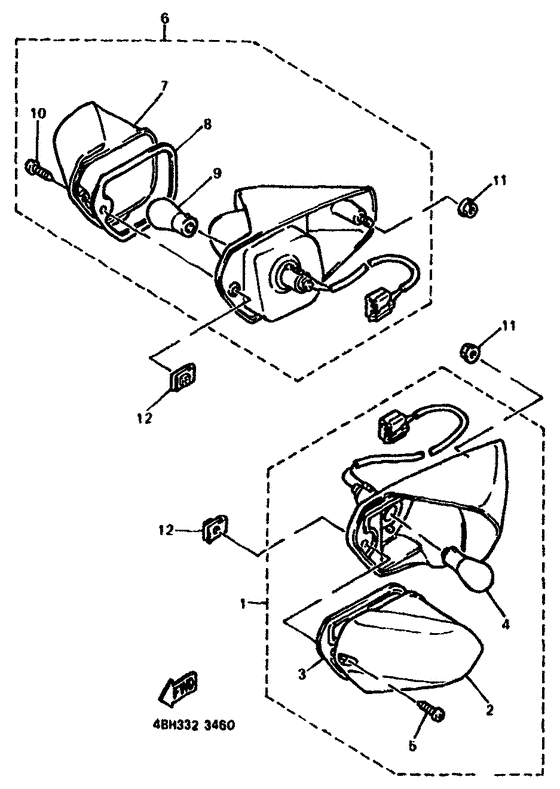

Flasher light Diagram Yamaha GTS1000
- Year
- 1994
- Colour
- Deep Red Cocktail 2 (DRC2; 0376)
- Model code
- 4FV4
- Sales region
- Europe (General) (999)
- Engine Capacity
- 1000
- Model
- GTS1000A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4BH-83310-00-P1 Front Flasher Light Assy 1Ur |
4BH-83310-00-P1 |
US $140.92 |
||
|
1
|
1
4BH-83310-00-P3
Front Flasher Light Assy 1
Ur |
4BH-83310-00-P3 |
— | ||
|
2
|
2
4BH-83312-00-00
Lens, Flasher
|
4BH-83312-00-00 |
— | ||
|
3
|
3
4BH-83313-00-00
Gasket, Flasher Lens
|
4BH-83313-00-00 |
— | ||
|
4
|
4
32H-83331-00-00 Bulb, Flasher (12V-21W) |
32H-83331-00-00 |
from US $7.51 |
||
| replacements | |||||
|
4
|
4
306-83311-40-00 Bulb, Flasher (12V-21W) |
306-83311-40-00 |
from US $7.51 |
||
|
4
|
4
NH7-H3311-00-01
Bulb, Flasher
|
NH7-H3311-00-01 |
— | ||
|
5
|
5
97702-40125-00 Screw, Tapping |
97702-40125-00 |
from US $1.13 |
||
| replacement | |||||
|
5
|
5
97780-40525-00 Screw, Tapping |
97780-40525-00 |
from US $1.13 |
||
|
6
|
6
4BH-83320-00-P1 Front Flasher Light Assy 2Ur |
4BH-83320-00-P1 |
US $127.74 |
||
|
6
|
6
4BH-83320-00-P3
Front Flasher Light Assy 2
Ur |
4BH-83320-00-P3 |
— | ||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
Ur |
999-99999-99-00 |
— | ||
|
7
|
7
4BH-83322-00-00
Lens, Flasher 2
|
4BH-83322-00-00 |
— | ||
|
8
|
8
4BH-83313-00-00
Gasket, Flasher Lens
|
4BH-83313-00-00 |
— | ||
|
9
|
9
32H-83331-00-00 Bulb, Flasher (12V-21W) |
32H-83331-00-00 |
from US $7.51 |
||
| replacements | |||||
|
9
|
9
306-83311-40-00 Bulb, Flasher (12V-21W) |
306-83311-40-00 |
from US $7.51 |
||
|
9
|
9
NH7-H3311-00-01
Bulb, Flasher
|
NH7-H3311-00-01 |
— | ||
|
10
|
10
97702-40125-00 Screw, Tapping |
97702-40125-00 |
from US $1.13 |
||
| replacement | |||||
|
10
|
10
97780-40525-00 Screw, Tapping |
97780-40525-00 |
from US $1.13 |
||
|
11
|
11
957-01055-00-00
Nut, Flange
|
957-01055-00-00 |
— | ||
| replacement | |||||
|
11
|
11
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
12
|
12
90183-04056-00 Nut, Spring |
90183-04056-00 |
from US $1.13 |
||
