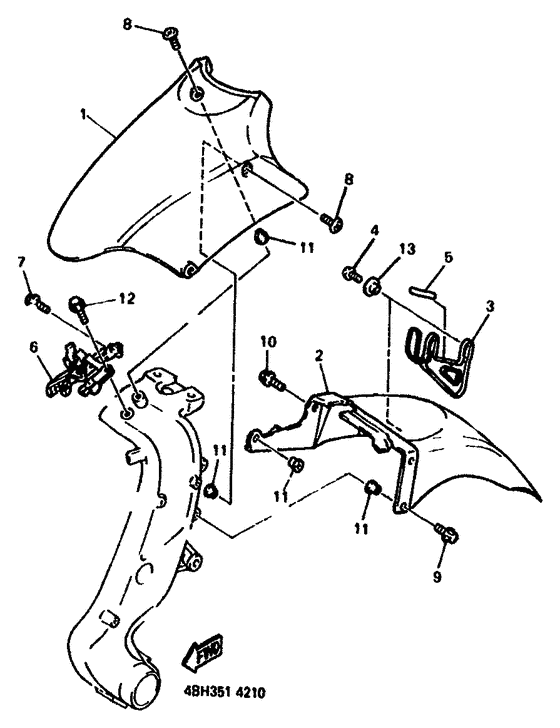

Front fender Diagram Yamaha GTS1000
- Year
- 1994
- Colour
- Deep Red Cocktail 2 (DRC2; 0376)
- Model code
- 4FV4
- Sales region
- Europe (General) (999)
- Engine Capacity
- 1000
- Model
- GTS1000A
