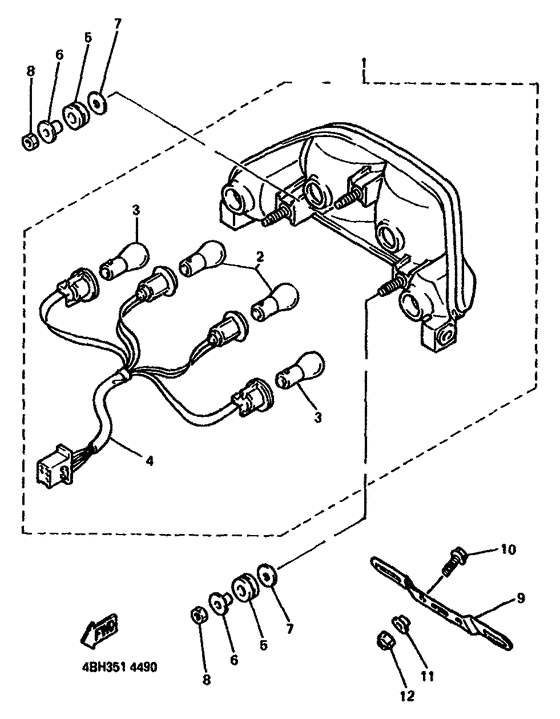

Taillight Diagram Yamaha GTS1000
- Year
- 1994
- Colour
- Deep Red Cocktail 2 (DRC2; 0376)
- Model code
- 4FV4
- Sales region
- Europe (General) (999)
- Engine Capacity
- 1000
- Model
- GTS1000A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4BH-84710-00-00
Taillight Unit Assy
|
4BH-84710-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
31L-84714-00-00
Bulb (12V-21/5W)
|
31L-84714-00-00 |
— | ||
| replacements | |||||
|
2
|
2
1A2-84714-50-00 Bulb (12V-21/5W) |
1A2-84714-50-00 |
from US $5.28 |
||
|
2
|
2
1A2-84714-41-00
Bulb
|
1A2-84714-41-00 |
— | ||
|
3
|
3
32H-83331-00-00 Bulb, Flasher (12V-21W) |
32H-83331-00-00 |
from US $7.51 |
||
| replacements | |||||
|
3
|
3
306-83311-40-00 Bulb, Flasher (12V-21W) |
306-83311-40-00 |
from US $7.51 |
||
|
3
|
3
NH7-H3311-00-01
Bulb, Flasher
|
NH7-H3311-00-01 |
— | ||
|
4
|
4
4BH-84735-00-00
Cord Assembly
|
4BH-84735-00-00 |
— | ||
|
5
|
5
90480-18276-00 Grommet |
90480-18276-00 |
from US $1.56 |
||
|
6
|
6
90387-06033-00 Collar |
90387-06033-00 |
from US $3.83 |
||
|
7
|
7
90201-063J2-00 Washer, Plate(36Y) |
90201-063J2-00 |
from US $3.12 |
||
|
8
|
8
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
9
|
9
3YF-84751-00-00 Bracket, License |
3YF-84751-00-00 |
from US $11.19 |
||
| replacement | |||||
|
9
|
9
3YF-84751-01-00 Bracket, License |
3YF-84751-01-00 |
from US $11.19 |
||
|
10
|
10
95026-06012-00 Bolt, Flange |
95026-06012-00 |
from US $1.42 |
||
| replacement | |||||
|
10
|
10
950-27060-12-00 Bolt, Flange |
950-27060-12-00 |
from US $1.28 |
||
|
11
|
11
90387-07717-00 Collar |
90387-07717-00 |
from US $2.36 |
||
|
12
|
12
956-16061-00-00
Nut (17W)
|
956-16061-00-00 |
— | ||
| replacement | |||||
|
12
|
12
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
