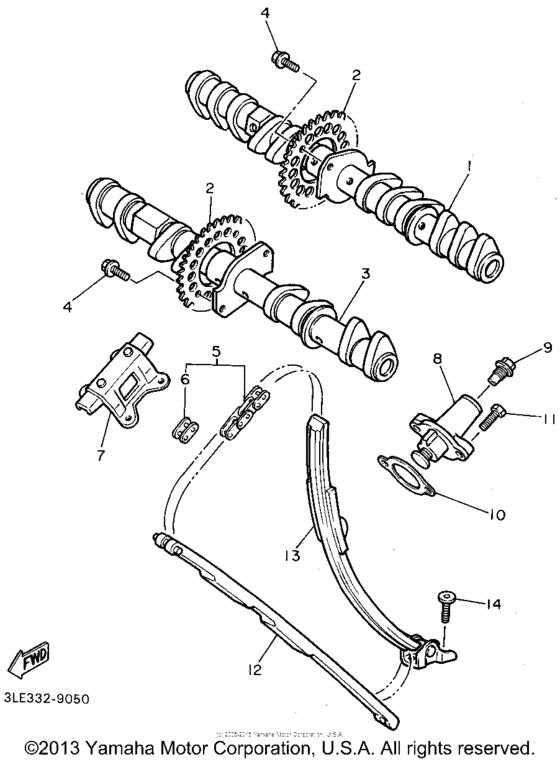

Camshaft & chain Diagram Yamaha GTS1000
- Year
- 1994
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- GTS1000A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4BH-12171-00-00
Camshaft 1
|
4BH-12171-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
3GM-12176-00-00
Sprocket, Cam Chain
|
3GM-12176-00-00 |
— | ||
|
3
|
3
4BH-12181-00-00
Camshaft 2
|
4BH-12181-00-00 |
— | ||
|
4
|
4
90105-07342-00 Bolt, Flange |
90105-07342-00 |
from US $2.55 |
||
| replacement | |||||
|
4
|
4
90105-07004-00 Bolt, Flange |
90105-07004-00 |
from US $2.02 |
||
|
5
|
5
94581-01108-00 Chain |
94581-01108-00 |
US $92.61 |
||
| replacement | |||||
|
5
|
5
9Y5-81011-07-00 Chain (Did219Fs-108L)Chain (did219fs-108l) |
9Y5-81011-07-00 |
US $273.70 |
||
|
6
|
6
946-81010-21-00 Pin, Joint |
946-81010-21-00 |
from US $4.27 |
||
| replacement | |||||
|
6
|
6
4SV-11498-00-00 Pin, Joint |
4SV-11498-00-00 |
from US $6.66 |
||
|
7
|
7
2GH-12241-00-00
Guide, Stopper 2
|
2GH-12241-00-00 |
— | ||
|
8
|
8
4BH-12210-00-00
Tensioner Assembly, Cam Chain
|
4BH-12210-00-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
90109-112F1-00 Bolt |
90109-112F1-00 |
from US $10.85 |
||
|
10
|
10
4BE-12213-00-00
Gasket, Tensioner Case
|
4BE-12213-00-00 |
— | ||
| replacement | |||||
|
10
|
10
4FM-12213-00-00 Gasket, Tensioner Case |
4FM-12213-00-00 |
from US $1.81 |
||
|
11
|
11
95023-06025-00 Bolt, Flange (Small Head) |
95023-06025-00 |
from US $1.56 |
||
| replacement | |||||
|
11
|
11
95024-06025-00 Bolt, Flange (Small Head) |
95024-06025-00 |
from US $1.66 |
||
|
12
|
12
3GM-12251-00-00
Damper, Chain 1
|
3GM-12251-00-00 |
— | ||
|
13
|
13
3GM-12252-00-00
Damper, Chain 2
|
3GM-12252-00-00 |
— | ||
| replacement | |||||
|
13
|
13
3GM-12252-01-00
Damper, Chain 2
|
3GM-12252-01-00 |
— | ||
|
14
|
14
90109-065A8-00 Bolt |
90109-065A8-00 |
from US $3.12 |
||
