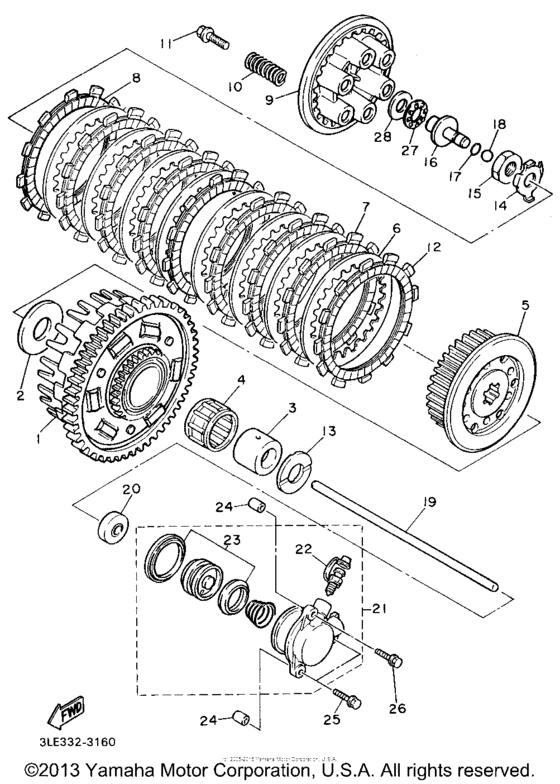

Clutch Diagram Yamaha GTS1000
- Year
- 1994
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- GTS1000A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3GM-16150-01-00
Primary Driven Gear Comp
|
3GM-16150-01-00 |
— | ||
|
2
|
2
1AE-16154-00-00 Plate, Thrust 1 |
1AE-16154-00-00 |
US $55.78 |
||
|
3
|
3
905-60252-70-00
Collar
|
905-60252-70-00 |
— | ||
| replacement | |||||
|
3
|
3
903-87250-24-00 Collar |
903-87250-24-00 |
from US $30.10 |
||
|
4
|
4
93310-340N8-00 Bearing |
93310-340N8-00 |
from US $23.16 |
||
|
5
|
5
4BH-16371-01-00
Boss, Clutch
|
4BH-16371-01-00 |
— | ||
| replacement | |||||
|
5
|
5
4BH-16371-02-00
Boss, Clutch
|
4BH-16371-02-00 |
— | ||
|
6
|
6
31A-16325-00-00 Plate, Clutch 2 (T=2.0)T=2.0 |
31A-16325-00-00 |
from US $13.18 |
||
|
7
|
7
4H7-16321-01-00
Plate, Friction
|
4H7-16321-01-00 |
— | ||
| replacement | |||||
|
7
|
7
4H7-16321-02-00 Plate, Friction |
4H7-16321-02-00 |
from US $13.14 |
||
|
8
|
8
31A-16321-00-00
Plate, Friction
|
31A-16321-00-00 |
— | ||
| replacement | |||||
|
8
|
8
4H7-16321-02-00 Plate, Friction |
4H7-16321-02-00 |
from US $13.14 |
||
|
9
|
9
3GM-16351-00-00
Plate, Pressure 1
|
3GM-16351-00-00 |
— | ||
|
10
|
10
90501-230E4-00 Spring, Compression |
90501-230E4-00 |
from US $4.04 |
||
|
11
|
11
90159-06123-00 Screw, With Washer |
90159-06123-00 |
from US $2.13 |
||
|
12
|
12
3GM-16321-00-00 Plate, Friction |
3GM-16321-00-00 |
from US $21.67 |
||
|
13
|
13
1AE-16164-00-00 Plate, Thrust 2 |
1AE-16164-00-00 |
from US $11.33 |
||
|
14
|
14
902-15202-31-00 Washer, Lock (34L) |
902-15202-31-00 |
from US $2.02 |
||
|
15
|
15
90170-20327-00 Nut (34L) |
90170-20327-00 |
from US $6.94 |
||
|
16
|
16
1LJ-16356-00-00
Rod, Push 1
|
1LJ-16356-00-00 |
— | ||
|
17
|
17
93210-06632-00 O-Ring |
93210-06632-00 |
from US $1.94 |
||
|
18
|
18
93511-32027-00 Ball |
93511-32027-00 |
from US $1.66 |
||
|
19
|
19
1AE-16357-00-00
Rod, Push 2
|
1AE-16357-00-00 |
— | ||
|
20
|
20
93109-08061-00 Oil Seal |
93109-08061-00 |
from US $3.38 |
||
|
21
|
21
1TV-16381-10-00
Push Lever Comp
|
1TV-16381-10-00 |
— | ||
| replacement | |||||
|
21
|
21
1TV-16381-12-00 Push Lever Comp |
1TV-16381-12-00 |
from US $182.37 |
||
|
22
|
22
36Y-W0048-00-00 Bleed Screw Kit |
36Y-W0048-00-00 |
from US $6.06 |
||
|
23
|
23
26H-W0098-00-00 Push Lever Seal Kit |
26H-W0098-00-00 |
from US $15.82 |
||
|
24
|
24
995-10080-12-00
Pin, Dowel
|
995-10080-12-00 |
— | ||
| replacement | |||||
|
24
|
24
91808-12024-00 Pin, Dowel |
91808-12024-00 |
from US $1.84 |
||
|
25
|
25
950-26060-30-00
Bolt, Flange
|
950-26060-30-00 |
— | ||
| replacements | |||||
|
25
|
25
95027-06030-00 Bolt, Flange |
95027-06030-00 |
from US $1.52 |
||
|
25
|
25
95817-06030-00 Bolt, Flange |
95817-06030-00 |
from US $1.07 |
||
|
26
|
26
950-26060-90-00
Bolt, Flange
|
950-26060-90-00 |
— | ||
| replacements | |||||
|
26
|
26
95022-06090-00 Bolt, Flange |
95022-06090-00 |
from US $1.52 |
||
|
26
|
26
95027-06090-00 Bolt, Flange |
95027-06090-00 |
from US $1.56 |
||
|
27
|
27
93340-21505-00 Bearing |
93340-21505-00 |
from US $10.10 |
||
|
28
|
28
902-01150-H2-00
Washer, Plate
|
902-01150-H2-00 |
— | ||
| replacement | |||||
|
28
|
28
90201-150U6-00 Washer, Plate |
90201-150U6-00 |
from US $8.32 |
||
