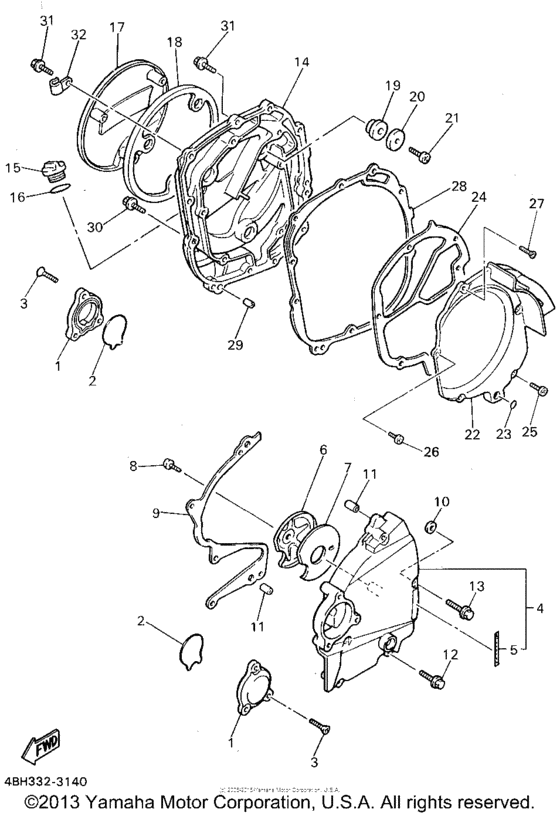

Crankcase cover (1) Diagram Yamaha GTS1000
- Year
- 1994
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- GTS1000A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3GM-15416-00-00
Cover, Oil Pump
|
3GM-15416-00-00 |
— | ||
|
2
|
2
1AE-15456-00-00 Gasket, Oil Pump Cover 1 |
1AE-15456-00-00 |
from US $7.70 |
||
|
3
|
3
901-52060-14-00
Screw, Flat Head
|
901-52060-14-00 |
— | ||
| replacement | |||||
|
3
|
3
98707-06016-00 Screw, Flat Head |
98707-06016-00 |
from US $1.56 |
||
|
4
|
4
3GM-15410-00-00
Crankcase Cover Assembly 1
|
3GM-15410-00-00 |
— | ||
| replacement | |||||
|
4
|
4
3GM-15410-01-00
Crankcase Cover Assembly 1
|
3GM-15410-01-00 |
— | ||
|
5
|
5
2GH-15435-00-00
Emblem
|
2GH-15435-00-00 |
— | ||
|
6
|
6
3GM-15427-00-00 Cover, Cap 2 |
3GM-15427-00-00 |
US $16.31 |
||
|
7
|
7
1AE-15316-00-00
Damper 1
|
1AE-15316-00-00 |
— | ||
|
8
|
8
92011-06010-00 Screw |
92011-06010-00 |
from US $1.56 |
||
| replacement | |||||
|
8
|
8
92017-06010-00 Bolt, Button Head |
92017-06010-00 |
from US $1.56 |
||
|
9
|
9
4BH-15451-00-00
Gasket, Crankcase Cover 1
|
4BH-15451-00-00 |
— | ||
| replacement | |||||
|
9
|
9
4FM-15451-00-00 Gasket, Crankcase Cover 1 |
4FM-15451-00-00 |
from US $7.23 |
||
|
10
|
10
4CR-15467-00-00
Gasket
|
4CR-15467-00-00 |
— | ||
| replacement | |||||
|
10
|
10
4FM-15467-00-00 Gasket |
4FM-15467-00-00 |
from US $3.54 |
||
|
11
|
11
995-10080-12-00
Pin, Dowel
|
995-10080-12-00 |
— | ||
| replacement | |||||
|
11
|
11
91808-12024-00 Pin, Dowel |
91808-12024-00 |
from US $1.84 |
||
|
12
|
12
95023-06040-00 Bolt, Flange (Small Head) |
95023-06040-00 |
from US $1.56 |
||
| replacement | |||||
|
12
|
12
95024-06040-00 Bolt, Flange (Small Head) |
95024-06040-00 |
from US $1.56 |
||
|
13
|
13
95021-06050-00 Bolt, Flange |
95021-06050-00 |
US $1.53 |
||
| replacements | |||||
|
13
|
13
90105-06798-00 Bolt, Flange |
90105-06798-00 |
from US $3.89 |
||
|
13
|
13
950-27060-50-00
Bolt, Flange
|
950-27060-50-00 |
— | ||
|
14
|
14
4BH-15421-00-00
Cover, Crankcase 2
|
4BH-15421-00-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
3F9-15362-00-00 Plug, Oil Level |
3F9-15362-00-00 |
from US $10.63 |
||
| replacements | |||||
|
15
|
15
3F9-15362-10-00 Plug, Oil Level |
3F9-15362-10-00 |
from US $11.79 |
||
|
15
|
15
BAT-15362-00-00 PLUG OIL LEVEL |
BAT-15362-00-00 |
from US $7.76 |
||
|
16
|
16
932-10277-78-00 O-Ring(1Kt) |
932-10277-78-00 |
from US $4.04 |
||
|
17
|
17
3GM-15417-00-00
Cover, Cap
|
3GM-15417-00-00 |
— | ||
|
18
|
18
3GM-15449-00-00
Ring, Rubber
|
3GM-15449-00-00 |
— | ||
|
19
|
19
4H7-15486-00-00 Grommet |
4H7-15486-00-00 |
from US $6.66 |
||
|
20
|
20
90209-06096-00 Washer |
90209-06096-00 |
from US $1.84 |
||
|
21
|
21
985-80060-10-00 Screw, Pan Head (92503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
22
|
22
3GM-15346-00-00
Breather 1
|
3GM-15346-00-00 |
— | ||
| replacement | |||||
|
22
|
22
4SV-15346-00-00
Breather 1
|
4SV-15346-00-00 |
— | ||
|
23
|
23
93210-09418-00 O-Ring |
93210-09418-00 |
from US $6.38 |
||
|
24
|
24
4BH-15463-00-00
Gasket, 2
|
4BH-15463-00-00 |
— | ||
| replacement | |||||
|
24
|
24
4FM-15463-00-00
Gasket, 2
|
4FM-15463-00-00 |
— | ||
|
25
|
25
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
26
|
26
901-57061-04-00
Screw, Pan Head
|
901-57061-04-00 |
— | ||
| replacement | |||||
|
26
|
26
98517-06020-00 Screw, Pan |
98517-06020-00 |
from US $1.25 |
||
|
27
|
27
901-52060-24-00
Screw, Flat Head
|
901-52060-24-00 |
— | ||
| replacement | |||||
|
27
|
27
98707-06016-00 Screw, Flat Head |
98707-06016-00 |
from US $1.56 |
||
|
28
|
28
4BH-15461-00-00
Gasket, Crankcase Cover 2
|
4BH-15461-00-00 |
— | ||
| replacement | |||||
|
28
|
28
4FM-15461-00-00 Gasket, Crankcase Cover 2 |
4FM-15461-00-00 |
from US $15.73 |
||
|
29
|
29
995-10080-12-00
Pin, Dowel
|
995-10080-12-00 |
— | ||
| replacement | |||||
|
29
|
29
91808-12024-00 Pin, Dowel |
91808-12024-00 |
from US $1.84 |
||
|
30
|
30
95023-06030-00 Bolt, Flange (Small Head) |
95023-06030-00 |
from US $1.56 |
||
| replacement | |||||
|
30
|
30
95024-06030-00 Bolt, Flange (Small Head) |
95024-06030-00 |
from US $1.56 |
||
|
31
|
31
95023-06020-00 Bolt, Flg.(Small Head) |
95023-06020-00 |
from US $1.56 |
||
| replacement | |||||
|
31
|
31
95024-06020-00 Bolt, Flange (Small Head) |
95024-06020-00 |
from US $1.66 |
||
|
32
|
32
90465-06038-00 Clamp |
90465-06038-00 |
from US $2.41 |
||
| replacement | |||||
|
32
|
32
90465-06376-00 Clamp |
90465-06376-00 |
from US $2.41 |
||
