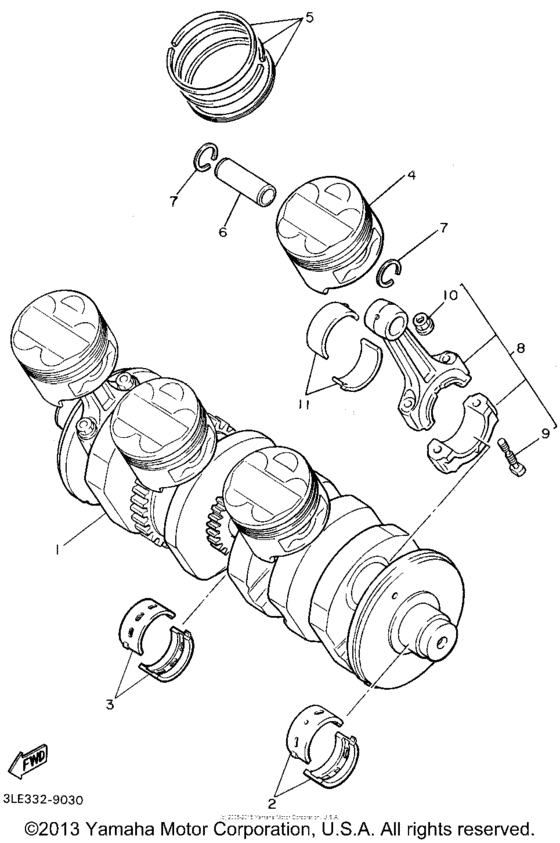

Crankshaft & Piston Diagram Yamaha GTS1000
- Year
- 1994
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- GTS1000A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4BH-11411-00-00
Crankshaft
|
4BH-11411-00-00 |
— | ||
|
2
|
2
2GH-11416-40-00
Plane Bearing, Crankshaft 1
UR YELLOW |
2GH-11416-40-00 |
— | ||
|
2
|
2
2GH-11416-30-00 Plane Bearing, Crankshaft 1UR GREEN |
2GH-11416-30-00 |
from US $13.99 |
||
|
2
|
2
2GH-11416-20-00 Plane Bearing, Crankshaft 1UR BROWN |
2GH-11416-20-00 |
from US $12.44 |
||
|
2
|
2
2GH-11416-10-00 Plane Bearing, Crankshaft 1UR BLACK |
2GH-11416-10-00 |
from US $21.73 |
||
|
2
|
2
2GH-11416-00-00
Plane Bearing, Crankshaft 1
UR BLUE |
2GH-11416-00-00 |
— | ||
|
3
|
3
3GM-11416-40-00 Plane Bearing, Crankshaft 1 (Ur Yellow )UR YELLOW |
3GM-11416-40-00 |
from US $14.24 |
||
|
3
|
3
3GM-11416-30-00 Plane Bearing, Crankshaft 1 (Ur Green )UR GREEN |
3GM-11416-30-00 |
from US $22.67 |
||
|
3
|
3
3GM-11416-20-00 Plane Bearing, Crankshaft 1 (Ur Brown)UR BROWN |
3GM-11416-20-00 |
from US $11.46 |
||
|
3
|
3
3GM-11416-10-00 Plane Bearing, Crankshaft 1 (Ur Black)UR BLACK |
3GM-11416-10-00 |
from US $12.12 |
||
|
3
|
3
3GM-11416-00-00 Plane Bearing, Crankshaft 1 (Ur Blue)UR BLUE |
3GM-11416-00-00 |
from US $12.12 |
||
|
4
|
4
4BH-11631-00-00 Piston (Std) |
4BH-11631-00-00 |
US $121.37 |
||
|
4
|
4
4BH-11636-00-00 Piston (0.50Mm O/s)0.50MM O/S AP |
4BH-11636-00-00 |
US $119.02 |
||
|
5
|
5
4BH-11605-00-00 Piston Ring Set (0.50Mm O/s)0.50MM O/S AP |
4BH-11605-00-00 |
from US $92.05 |
||
|
5
|
5
4BH-11603-00-00 Piston Ring Set (Std) |
4BH-11603-00-00 |
from US $78.21 |
||
|
6
|
6
3GM-11633-00-00 Pin, Piston |
3GM-11633-00-00 |
US $20.99 |
||
|
7
|
7
93450-19095-00 Circlip |
93450-19095-00 |
from US $1.81 |
||
|
8
|
8
3GM-11650-01-00
Connecting Rod Assembly
|
3GM-11650-01-00 |
— | ||
| replacement | |||||
|
8
|
8
3GM-11650-10-00 Connecting Rod Assembly |
3GM-11650-10-00 |
from US $266.17 |
||
|
9
|
9
12R-11654-00-00 Bolt, Connecting Rod |
12R-11654-00-00 |
from US $7.73 |
||
|
10
|
10
90179-08327-00 Nut |
90179-08327-00 |
from US $1.81 |
||
|
11
|
11
3GM-11656-20-00 Plane Bearing, Connecting Rod (UR Brown)UR BROWN |
3GM-11656-20-00 |
from US $23.94 |
||
|
11
|
11
3GM-11656-10-00 Plane Bearing, Connecting Rod (UR Black)UR BLACK |
3GM-11656-10-00 |
from US $12.80 |
||
|
11
|
11
3GM-11656-00-00 Plane Bearing, Connecting Rod (UR Blue)UR BLUE |
3GM-11656-00-00 |
from US $12.80 |
||
|
11
|
11
3GM-11656-30-00 Plane Bearing, Connecting Rod (UR Green)UR GREEN |
3GM-11656-30-00 |
from US $16.43 |
||
