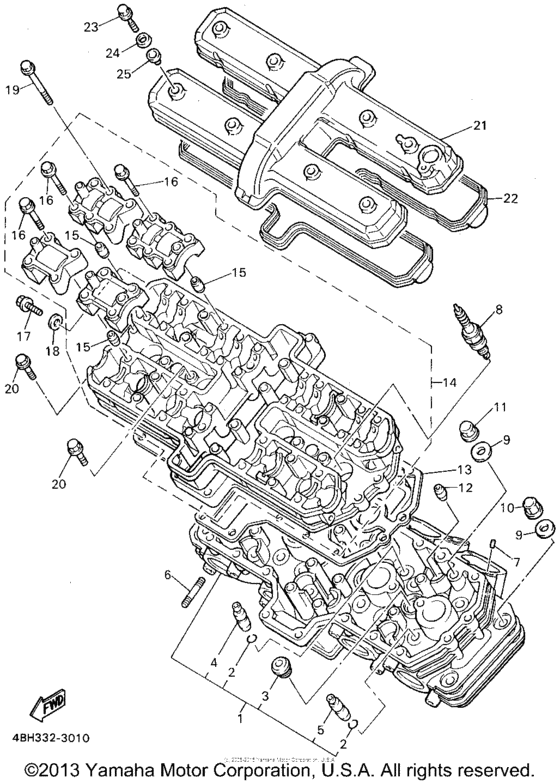

Cylinder head Diagram Yamaha GTS1000
- Year
- 1994
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- GTS1000A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4BH-11102-00-00
Cylinder Head Assembly
|
4BH-11102-00-00 |
— | ||
|
2
|
2
93440-10153-00 Circlip |
93440-10153-00 |
from US $1.84 |
||
|
3
|
3
90340-18101-00 Plug, Straight Screw |
90340-18101-00 |
from US $7.51 |
||
|
4
|
4
3GM-11133-10-00
Guide, Valve 1
|
3GM-11133-10-00 |
— | ||
|
5
|
5
3GM-11134-10-00 Guide, Valve 2 |
3GM-11134-10-00 |
from US $51.92 |
||
|
6
|
6
95611-08625-00 Bolt, Stud |
95611-08625-00 |
from US $3.83 |
||
| replacement | |||||
|
6
|
6
95617-08625-00 Bolt, Stud |
95617-08625-00 |
from US $4.16 |
||
|
7
|
7
93604-10011-00 Pin, Dowel |
93604-10011-00 |
from US $1.70 |
||
|
8
|
8
NGK-DPR8E-A9-00
Dpr8Ea-9 Ngk 10Pk
UR |
NGK-DPR8E-A9-00 |
— | ||
| replacement | |||||
|
8
|
8
DPR-8EA90-00-00 DPR8EA-9 NGK 10PK (10-PACK)UR |
DPR-8EA90-00-00 |
US $63.40 |
||
|
9
|
9
90201-103M4-00 Washer, Plate |
90201-103M4-00 |
from US $1.84 |
||
|
10
|
10
90176-10049-00 Nut, Crown |
90176-10049-00 |
from US $4.39 |
||
| replacement | |||||
|
10
|
10
90176-10075-00 Nut, Crown |
90176-10075-00 |
from US $4.86 |
||
|
11
|
11
90179-10584-00 Nut |
90179-10584-00 |
from US $19.20 |
||
|
12
|
12
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
12
|
12
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $2.02 |
||
|
12
|
12
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
13
|
13
3GM-11182-00-00
Gasket, Cylinder Head 2
|
3GM-11182-00-00 |
— | ||
| replacement | |||||
|
13
|
13
3FV-11182-00-00 Gasket, Cylinder Head 2 |
3FV-11182-00-00 |
from US $50.84 |
||
|
14
|
14
4BH-1115A-00-00 Cam Case Assembly |
4BH-1115A-00-00 |
US $544.93 |
||
| replacement | |||||
|
14
|
14
4BH-1115A-01-00
Cam Case Assy
|
4BH-1115A-01-00 |
— | ||
|
15
|
15
995-10080-16-00
P1N, Dowel
|
995-10080-16-00 |
— | ||
| replacement | |||||
|
15
|
15
918-08160-23-00 Pin, Dowel(3Xw) |
918-08160-23-00 |
from US $1.66 |
||
|
16
|
16
90105-06153-00 Bolt, Flange |
90105-06153-00 |
from US $1.70 |
||
|
17
|
17
95023-06012-00 Bolt, Flange (Small Head) |
95023-06012-00 |
from US $1.56 |
||
| replacement | |||||
|
17
|
17
95024-06012-00 Bolt, Flange (Small Head) |
95024-06012-00 |
from US $1.56 |
||
|
18
|
18
904-30060-14-00 Gasket (Copper washer) |
904-30060-14-00 |
from US $1.39 |
||
|
19
|
19
90105-06541-00 Bolt, Flange |
90105-06541-00 |
US $1.56 |
||
| replacement | |||||
|
19
|
19
95817-06070-00 Bolt, Flange |
95817-06070-00 |
from US $1.56 |
||
|
20
|
20
95023-06025-00 Bolt, Flange (Small Head) |
95023-06025-00 |
from US $1.56 |
||
| replacement | |||||
|
20
|
20
95024-06025-00 Bolt, Flange (Small Head) |
95024-06025-00 |
from US $1.66 |
||
|
21
|
21
4BH-11191-00-00
Cover, Cylinder Head 1
|
4BH-11191-00-00 |
— | ||
|
22
|
22
3GM-11193-00-00
Gasket, Head Cover 1
|
3GM-11193-00-00 |
— | ||
| replacements | |||||
|
22
|
22
4SV-11193-00-00
Gasket, Head Cover 1
|
4SV-11193-00-00 |
— | ||
|
22
|
22
4SV-11193-01-00 Gasket, Head Cover 1 |
4SV-11193-01-00 |
from US $51.71 |
||
|
23
|
23
90109-064F0-00 Bolt |
90109-064F0-00 |
from US $5.24 |
||
|
24
|
24
902-09112-62-00 Washer |
902-09112-62-00 |
from US $1.98 |
||
|
25
|
25
2GH-1111G-00-00 Rubber, Mount 1 |
2GH-1111G-00-00 |
from US $6.24 |
||
