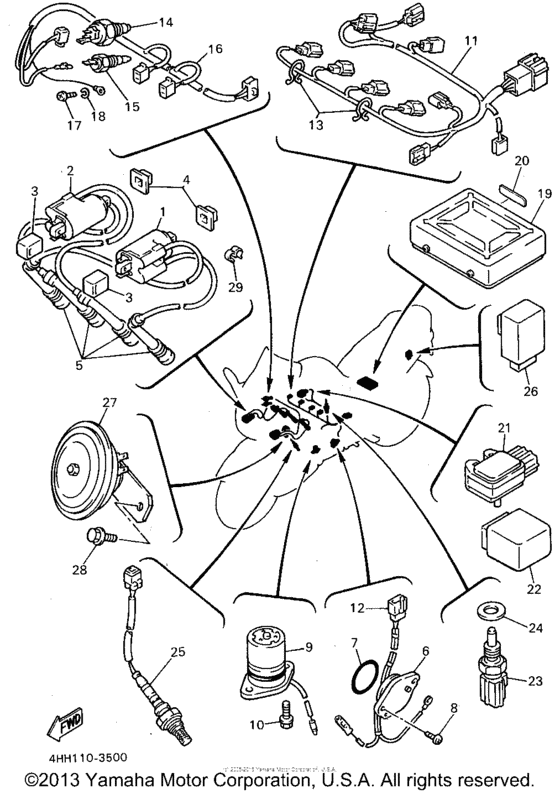

Electrical (1) Diagram Yamaha GTS1000
- Year
- 1994
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- GTS1000A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4BH-82310-00-00
Ignition Coil Assy
|
4BH-82310-00-00 |
— | ||
| replacement | |||||
|
1
|
1
4BH-82310-01-00
Ignition Coil Assy
|
4BH-82310-01-00 |
— | ||
|
2
|
2
4BH-82320-00-00 Ignition Coil Assy |
4BH-82320-00-00 |
US $228.76 |
||
| replacement | |||||
|
2
|
2
4BH-82320-01-00
Ignition Coil Assy
|
4BH-82320-01-00 |
— | ||
|
3
|
3
4BH-82317-00-00 Damper, Ignition Coil |
4BH-82317-00-00 |
US $4.21 |
||
| replacement | |||||
|
3
|
3
4BH-82317-01-00 Damper, Ignition Coil |
4BH-82317-01-00 |
US $15.71 |
||
|
4
|
4
4U8-82317-00-00 Damper, Ignition Coil |
4U8-82317-00-00 |
from US $5.38 |
||
|
5
|
5
2KT-82370-00-00 Plug Cap Assembly |
2KT-82370-00-00 |
from US $42.14 |
||
|
6
|
6
1AE-82540-00-00 Neutral Switch Assy |
1AE-82540-00-00 |
from US $23.16 |
||
|
7
|
7
93210-29196-00 O-Ring (371) |
93210-29196-00 |
from US $1.66 |
||
|
8
|
8
98502-06016-00 Screw, Pan Head(3Js) |
98502-06016-00 |
US $2.77 |
||
| replacement | |||||
|
8
|
8
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
9
|
9
3GM-85720-00-00 Oil Level Gauge Assembly |
3GM-85720-00-00 |
US $260.91 |
||
|
10
|
10
950-26060-16-00
Bolt, Flange
|
950-26060-16-00 |
— | ||
| replacement | |||||
|
10
|
10
901-05066-96-00 Bolt, Flange |
901-05066-96-00 |
from US $2.64 |
||
|
11
|
11
4BH-82580-00-00
Wire Harness Assembly 2
|
4BH-82580-00-00 |
— | ||
|
12
|
12
4BH-82541-00-00
Wire, Lead
|
4BH-82541-00-00 |
— | ||
|
13
|
13
90464-16115-00 Clamp |
90464-16115-00 |
from US $2.69 |
||
|
14
|
14
2EL-82560-00-00 Thermo Switch Assy |
2EL-82560-00-00 |
from US $59.22 |
||
| replacement | |||||
|
14
|
14
3LN-82560-01-00 Thermo Switch Assy |
3LN-82560-01-00 |
from US $61.07 |
||
|
15
|
15
3YX-82560-00-00 Thermo Switch Assy |
3YX-82560-00-00 |
from US $78.34 |
||
|
16
|
16
4BH-82509-00-00
Wire, Sub Lead
|
4BH-82509-00-00 |
— | ||
|
17
|
17
985-80050-08-00 Screw, Pan Head |
985-80050-08-00 |
from US $1.66 |
||
|
18
|
18
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
19
|
19
4HH-8591A-10-00
Engine Control Unit Assembly
|
4HH-8591A-10-00 |
— | ||
|
20
|
20
4FV-13843-00-00
Plate1
|
4FV-13843-00-00 |
— | ||
|
21
|
21
4BH-82380-00-00
Sensor, Pressure
|
4BH-82380-00-00 |
— | ||
|
22
|
22
4BH-8235Y-00-00
Damper
|
4BH-8235Y-00-00 |
— | ||
|
23
|
23
4BH-83591-00-00 Thermo Unit |
4BH-83591-00-00 |
from US $65.30 |
||
|
24
|
24
90430-12202-00 Gasket |
90430-12202-00 |
from US $1.39 |
||
|
25
|
25
4BH-8592A-00-00
Sensor
|
4BH-8592A-00-00 |
— | ||
|
26
|
26
3YA-83350-00-00 Flasher Relay Assembly |
3YA-83350-00-00 |
from US $75.16 |
||
|
27
|
27
25G-83371-00-00 Horn |
25G-83371-00-00 |
from US $58.17 |
||
|
28
|
28
95816-08012-00 Bolt, Flange |
95816-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
28
|
28
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
29
|
29
90464-10075-00 Clamp |
90464-10075-00 |
from US $1.70 |
||
| replacement | |||||
|
29
|
29
90464-09M31-00 Clamp |
90464-09M31-00 |
from US $1.77 |
||
