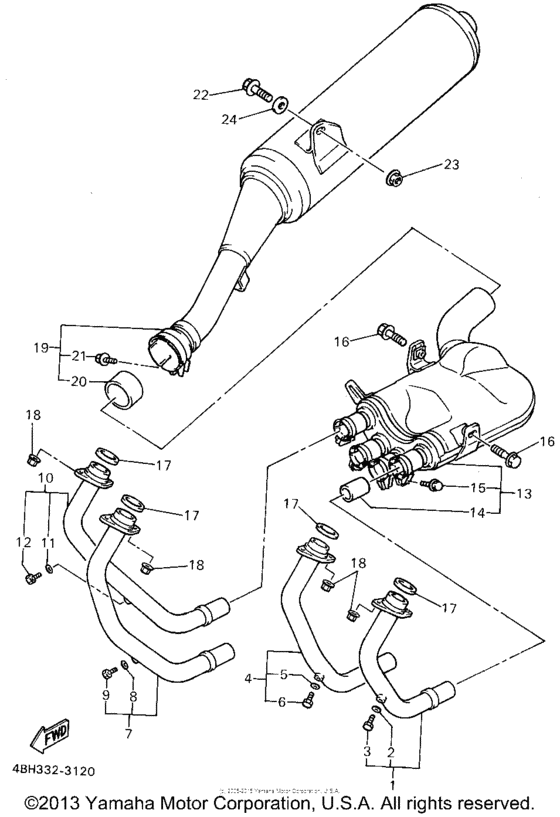

Exhaust Diagram Yamaha GTS1000
- Year
- 1994
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- GTS1000A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4BH-14610-00-00 Exhaust Pipe Assembly 1 |
4BH-14610-00-00 |
US $67.81 |
||
| replacement | |||||
|
1
|
1
4BH-14610-10-00
Exhaust Pipe Assy 1
|
4BH-14610-10-00 |
— | ||
|
2
|
2
929-06066-00-00
Washer
|
929-06066-00-00 |
— | ||
| replacement | |||||
|
2
|
2
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
3
|
3
90101-06576-00 Bolt |
90101-06576-00 |
from US $1.70 |
||
|
4
|
4
4BH-14620-00-00
Exhaust Pipe Assembly 2
|
4BH-14620-00-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
929-06066-00-00
Washer
|
929-06066-00-00 |
— | ||
| replacement | |||||
|
5
|
5
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
6
|
6
90101-06576-00 Bolt |
90101-06576-00 |
from US $1.70 |
||
|
7
|
7
4BH-14630-00-00
Exhaust Pipe Assembly 3
|
4BH-14630-00-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
929-06066-00-00
Washer
|
929-06066-00-00 |
— | ||
| replacement | |||||
|
8
|
8
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
9
|
9
90101-06576-00 Bolt |
90101-06576-00 |
from US $1.70 |
||
|
10
|
10
4BH-14650-00-00
Exhaust Pipe Assembly 4
|
4BH-14650-00-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
929-06066-00-00
Washer
|
929-06066-00-00 |
— | ||
| replacement | |||||
|
11
|
11
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
12
|
12
90101-06576-00 Bolt |
90101-06576-00 |
from US $1.70 |
||
|
13
|
13
4BH-14730-00-00
Chamber Assy
|
4BH-14730-00-00 |
— | ||
| replacement | |||||
|
13
|
13
4BH-14730-01-00
Chamber Assy
|
4BH-14730-01-00 |
— | ||
|
14
|
14
4BH-14714-00-00 Gasket, Muffler |
4BH-14714-00-00 |
from US $23.31 |
||
|
15
|
15
95023-08020-00 Bolt, Flange |
95023-08020-00 |
from US $1.07 |
||
| replacement | |||||
|
15
|
15
95024-08020-00 Bolt, Flange (Small Head) |
95024-08020-00 |
from US $1.18 |
||
|
16
|
16
95811-08035-00 Bolt, Flange (95821-08035-00) |
95811-08035-00 |
from US $1.07 |
||
| replacement | |||||
|
16
|
16
95817-08035-00 Bolt, Flange |
95817-08035-00 |
from US $1.18 |
||
|
17
|
17
3YF-14613-01-00 Gasket, Exhaust Pipe |
3YF-14613-01-00 |
from US $3.38 |
||
|
18
|
18
90179-08410-00 Nut |
90179-08410-00 |
from US $1.81 |
||
|
19
|
19
4BH-14710-00-00
Muffler Assembly 1
|
4BH-14710-00-00 |
— | ||
|
20
|
20
3HE-14755-00-00 Gasket, Silencer |
3HE-14755-00-00 |
from US $59.85 |
||
|
21
|
21
95821-08025-00 Bolt, Flange |
95821-08025-00 |
from US $1.07 |
||
| replacement | |||||
|
21
|
21
95817-08025-00 Bolt, Flange |
95817-08025-00 |
from US $1.07 |
||
|
22
|
22
901-05103-16-00
Bolt, Flange
|
901-05103-16-00 |
— | ||
| replacements | |||||
|
22
|
22
958-14100-40-00 Bolt, Flange |
958-14100-40-00 |
from US $2.91 |
||
|
22
|
22
90105-10778-00 Bolt, Flange |
90105-10778-00 |
from US $4.53 |
||
|
23
|
23
957-01105-00-00
Nut, With Washer
|
957-01105-00-00 |
— | ||
| replacements | |||||
|
23
|
23
95704-10500-00 Nut, With Washer |
95704-10500-00 |
from US $1.18 |
||
|
23
|
23
90179-10394-00 Nut, Flange |
90179-10394-00 |
from US $1.66 |
||
|
24
|
24
90201-10669-00 Washer, Plate |
90201-10669-00 |
from US $1.39 |
||
