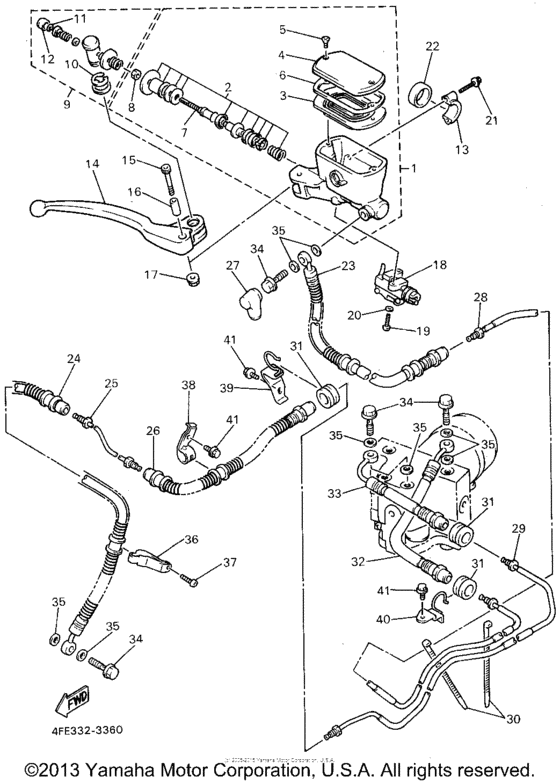

Front master cylinder Diagram Yamaha GTS1000
- Year
- 1994
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- GTS1000A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4BH-W2587-01-00
Master Cylinder Sub Assembly
|
4BH-W2587-01-00 |
— | ||
| replacement | |||||
|
1
|
1
4BH-W2587-02-00 Master Cylinder Sub Assy |
4BH-W2587-02-00 |
US $513.90 |
||
|
2
|
2
4BH-W0041-00-00
Cylinder Kit, Master
|
4BH-W0041-00-00 |
— | ||
| replacement | |||||
|
2
|
2
4TX-25807-04-00 Cylinder Kit, Master |
4TX-25807-04-00 |
from US $82.31 |
||
|
3
|
3
4BH-25854-01-00
Diaphragm, Reservoir
|
4BH-25854-01-00 |
— | ||
| replacement | |||||
|
3
|
3
4BH-25854-02-00 Diaphragm, Reservoir |
4BH-25854-02-00 |
from US $26.78 |
||
|
4
|
4
4BH-25852-00-00
Cap, Reservoir
|
4BH-25852-00-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
987-06040-12-00
Screw, Flat Head
|
987-06040-12-00 |
— | ||
| replacement | |||||
|
5
|
5
98707-04012-00 Screw, Flat Head |
98707-04012-00 |
from US $1.52 |
||
|
6
|
6
4BH-25815-00-00 Seal, Piston |
4BH-25815-00-00 |
from US $25.66 |
||
|
7
|
7
3YX-25880-00-00 Push Rod Comp |
3YX-25880-00-00 |
from US $35.28 |
||
|
8
|
8
956-01062-00-00
Nut, U-Flange
|
956-01062-00-00 |
— | ||
| replacement | |||||
|
8
|
8
95604-06200-00 Nut, U Flange |
95604-06200-00 |
from US $1.52 |
||
|
9
|
9
3YX-W0091-02-00 Screw Kit, Master Cylinder |
3YX-W0091-02-00 |
from US $84.42 |
||
|
10
|
10
3YX-25866-00-00 Circlip |
3YX-25866-00-00 |
from US $1.42 |
||
| replacement | |||||
|
10
|
10
99001-08600-00 Circlip |
99001-08600-00 |
from US $1.52 |
||
|
11
|
11
3YX-25866-10-00 Circlip |
3YX-25866-10-00 |
US $1.56 |
||
| replacement | |||||
|
11
|
11
99080-03600-00 Circlip |
99080-03600-00 |
from US $1.50 |
||
|
12
|
12
3YX-2583H-00-00 Boot |
3YX-2583H-00-00 |
from US $7.65 |
||
|
13
|
13
56A-25867-00-00 Bracket, Master Cylinder |
56A-25867-00-00 |
from US $13.46 |
||
|
14
|
14
3YX-83922-09-00 Lever |
3YX-83922-09-00 |
from US $22.53 |
||
|
15
|
15
3YX-2589F-00-00 Bolt, Lever |
3YX-2589F-00-00 |
from US $6.52 |
||
|
16
|
16
3YX-25838-00-00 Sleeve, Caliper |
3YX-25838-00-00 |
from US $12.18 |
||
|
17
|
17
956-16061-00-00
Nut (17W)
|
956-16061-00-00 |
— | ||
| replacement | |||||
|
17
|
17
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
18
|
18
4FE-83980-00-00 Front Stop Switch Assembly |
4FE-83980-00-00 |
US $125.73 |
||
|
19
|
19
98506-04012-00 Screw, Pan Head |
98506-04012-00 |
from US $1.07 |
||
| replacement | |||||
|
19
|
19
98517-04012-00 Screw, Pan Head |
98517-04012-00 |
from US $1.07 |
||
|
20
|
20
92906-04600-00 Washer |
92906-04600-00 |
from US $1.07 |
||
| replacement | |||||
|
20
|
20
92907-04600-00 Washer(Jf2) |
92907-04600-00 |
from US $1.07 |
||
|
21
|
21
950-26060-25-00
Bolt, Flange
|
950-26060-25-00 |
— | ||
| replacements | |||||
|
21
|
21
90105-060A0-00 Bolt, Washer Based(4Kg) |
90105-060A0-00 |
from US $2.22 |
||
|
21
|
21
95027-06025-00 Bolt, Flange |
95027-06025-00 |
from US $1.52 |
||
|
22
|
22
90387-22660-00 Collar |
90387-22660-00 |
from US $1.84 |
||
|
23
|
23
4FE-25872-01-00 Hose, Brake 1 |
4FE-25872-01-00 |
US $33.88 |
||
| replacement | |||||
|
23
|
23
4FE-25872-02-00
Hose, Brake 1
|
4FE-25872-02-00 |
— | ||
|
24
|
24
4FE-25873-01-00 Hose, Brake 2 |
4FE-25873-01-00 |
US $44.75 |
||
| replacement | |||||
|
24
|
24
4FE-25873-02-00
Hose, Brake 2
|
4FE-25873-02-00 |
— | ||
|
25
|
25
4FE-25871-00-00
Pipe, Brake
|
4FE-25871-00-00 |
— | ||
|
26
|
26
4FE-2581K-01-00
Hose, Brake 5
|
4FE-2581K-01-00 |
— | ||
| replacement | |||||
|
26
|
26
4FE-2581K-02-00
Hose, Brake 5
|
4FE-2581K-02-00 |
— | ||
|
27
|
27
4L0-25862-00-00 Boot, Master Cylinder |
4L0-25862-00-00 |
from US $10.34 |
||
| replacement | |||||
|
27
|
27
4L0-25862-01-00 Boot, Master Cylinder |
4L0-25862-01-00 |
from US $10.34 |
||
|
28
|
28
4FE-25882-00-00 Pipe, Brake 2 |
4FE-25882-00-00 |
US $67.46 |
||
|
29
|
29
4FE-25883-00-00
Pipe, Brake 3
|
4FE-25883-00-00 |
— | ||
|
30
|
30
90465-13169-00 Band |
90465-13169-00 |
from US $1.28 |
||
| replacement | |||||
|
30
|
30
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
31
|
31
341-25881-00-00 Protector, Brake Hose |
341-25881-00-00 |
from US $13.95 |
||
|
32
|
32
4FE-25874-01-00 Hose, Brake |
4FE-25874-01-00 |
US $20.95 |
||
| replacement | |||||
|
32
|
32
4FE-25874-02-00
Hose, Brake
|
4FE-25874-02-00 |
— | ||
|
33
|
33
4FE-2581J-01-00
Hose, Brake 4
|
4FE-2581J-01-00 |
— | ||
|
34
|
34
90401-10159-00 Bolt, Union(3Gm) |
90401-10159-00 |
from US $3.26 |
||
|
35
|
35
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.39 |
||
| replacement | |||||
|
35
|
35
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $1.39 |
||
|
36
|
36
4BH-25875-00-00
Holder, Brake Hose 1
|
4BH-25875-00-00 |
— | ||
| replacement | |||||
|
36
|
36
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
37
|
37
92011-06016-00 Bolt, Button Head |
92011-06016-00 |
from US $1.42 |
||
| replacement | |||||
|
37
|
37
92014-06016-00 Bolt, Button Head |
92014-06016-00 |
from US $1.52 |
||
|
38
|
38
4BH-25887-00-00
Holder, Brake Hose
|
4BH-25887-00-00 |
— | ||
|
39
|
39
4BH-2587A-00-00
Holder, Break Hose
|
4BH-2587A-00-00 |
— | ||
|
40
|
40
4FE-2587A-00-00
Holder, Break Hose
|
4FE-2587A-00-00 |
— | ||
|
41
|
41
958-11060-12-00
Bolt, Flange (4H7)
|
958-11060-12-00 |
— | ||
| replacements | |||||
|
41
|
41
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
41
|
41
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.07 |
||
