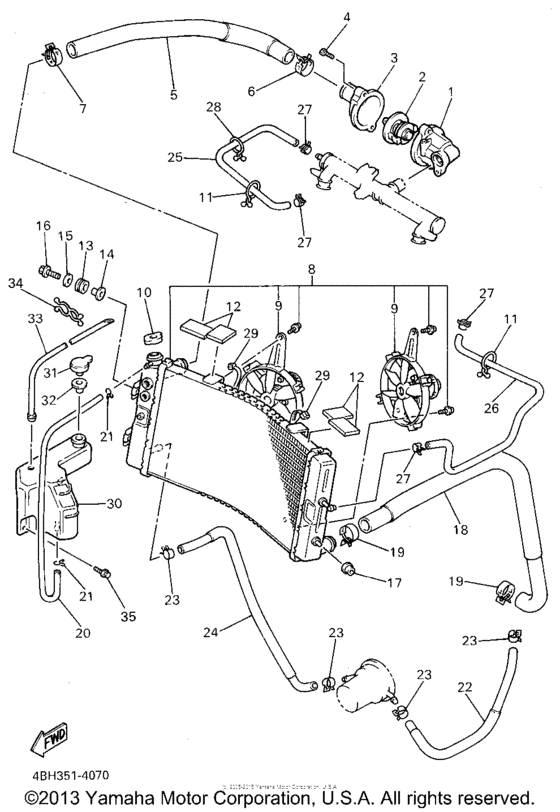

Radiator & hose Diagram Yamaha GTS1000
- Year
- 1994
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- GTS1000A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3GM-12417-00-00 Housing, Thermostat |
3GM-12417-00-00 |
US $97.61 |
||
|
2
|
2
3GM-12410-00-00 Thermostat Assy |
3GM-12410-00-00 |
from US $42.26 |
||
| replacement | |||||
|
2
|
2
3GM-12410-01-00 Thermostat Assy |
3GM-12410-01-00 |
US $66.67 |
||
|
3
|
3
3GM-12413-00-00
Cover, Thermostat
|
3GM-12413-00-00 |
— | ||
|
4
|
4
95023-06025-00 Bolt, Flange (Small Head) |
95023-06025-00 |
from US $1.56 |
||
| replacement | |||||
|
4
|
4
95024-06025-00 Bolt, Flange (Small Head) |
95024-06025-00 |
from US $1.66 |
||
|
5
|
5
4BH-12576-00-00
Hose 1
|
4BH-12576-00-00 |
— | ||
|
6
|
6
90467-33143-00 Clip |
90467-33143-00 |
from US $3.24 |
||
|
7
|
7
90467-28142-00 Clip(4Bh) |
90467-28142-00 |
from US $3.54 |
||
| replacement | |||||
|
7
|
7
90467-28046-00 Clip (8M6) |
90467-28046-00 |
from US $3.54 |
||
|
8
|
8
4BH-1240A-00-00
Radiator Assembly
|
4BH-1240A-00-00 |
— | ||
|
9
|
9
4BH-12405-00-00
Blower Assembly
|
4BH-12405-00-00 |
— | ||
|
10
|
10
22W-12462-00-00
Cap, Radiator
|
22W-12462-00-00 |
— | ||
| replacements | |||||
|
10
|
10
1B3-12462-00-00 Cap, Radiator |
1B3-12462-00-00 |
from US $38.78 |
||
|
10
|
10
4FL-12462-00-00 Cap, Radiator |
4FL-12462-00-00 |
from US $36.80 |
||
|
11
|
11
90464-18116-00 Clamp |
90464-18116-00 |
from US $2.09 |
||
|
12
|
12
3BB-22261-00-00 Damper, Sub Tank |
3BB-22261-00-00 |
US $2.66 |
||
|
13
|
13
90480-18276-00 Grommet |
90480-18276-00 |
from US $1.56 |
||
|
14
|
14
90387-07037-00 Collar |
90387-07037-00 |
from US $3.54 |
||
|
15
|
15
90201-063J2-00 Washer, Plate(36Y) |
90201-063J2-00 |
from US $3.12 |
||
|
16
|
16
958-26060-20-00
Bolt, Flange
|
958-26060-20-00 |
— | ||
| replacement | |||||
|
16
|
16
95817-06020-00 Bolt, Flange |
95817-06020-00 |
from US $1.25 |
||
|
17
|
17
90480-20566-00 Grommet |
90480-20566-00 |
from US $2.93 |
||
|
18
|
18
4BH-12577-00-00
Hose 2
|
4BH-12577-00-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
90467-28142-00 Clip(4Bh) |
90467-28142-00 |
from US $3.54 |
||
| replacement | |||||
|
19
|
19
90467-28046-00 Clip (8M6) |
90467-28046-00 |
from US $3.54 |
||
|
20
|
20
904-45091-15-00
Hose (L460)
|
904-45091-15-00 |
— | ||
| replacement | |||||
|
20
|
20
90445-083J5-00 Hose (L460) |
90445-083J5-00 |
from US $3.72 |
||
|
21
|
21
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.81 |
||
|
22
|
22
4BH-12588-00-00
Hose 5
|
4BH-12588-00-00 |
— | ||
| replacement | |||||
|
22
|
22
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
23
|
23
90467-15141-00 Clip |
90467-15141-00 |
from US $1.28 |
||
|
24
|
24
4BH-12589-00-00
Hose 6
|
4BH-12589-00-00 |
— | ||
|
25
|
25
4BH-12578-00-00
Hose 3
|
4BH-12578-00-00 |
— | ||
|
26
|
26
4BH-12579-00-00
Hose 4
|
4BH-12579-00-00 |
— | ||
|
27
|
27
90467-11139-00 Clip |
90467-11139-00 |
US $2.50 |
||
|
28
|
28
90464-23041-00 Clamp (4N0) |
90464-23041-00 |
from US $1.70 |
||
| replacement | |||||
|
28
|
28
90464-25267-00 Clamp |
90464-25267-00 |
from US $1.70 |
||
|
29
|
29
904-64130-73-00
Clamp
|
904-64130-73-00 |
— | ||
| replacement | |||||
|
29
|
29
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.39 |
||
|
30
|
30
4BH-21871-00-00
Tank, Recovery
|
4BH-21871-00-00 |
— | ||
|
31
|
31
4L0-21875-00-00 Cap |
4L0-21875-00-00 |
from US $9.07 |
||
| replacement | |||||
|
31
|
31
1AA-21815-00-00 Cap |
1AA-21815-00-00 |
from US $6.40 |
||
|
32
|
32
1AA-21874-00-00 Gasket |
1AA-21874-00-00 |
from US $1.94 |
||
|
33
|
33
4BH-21877-00-00 Pipe, Overflow (L1400) |
4BH-21877-00-00 |
from US $16.04 |
||
|
34
|
34
90464-26114-00 Clamp |
90464-26114-00 |
from US $1.35 |
||
|
35
|
35
90119-06192-00 Bolt, With Washer |
90119-06192-00 |
from US $1.98 |
||
