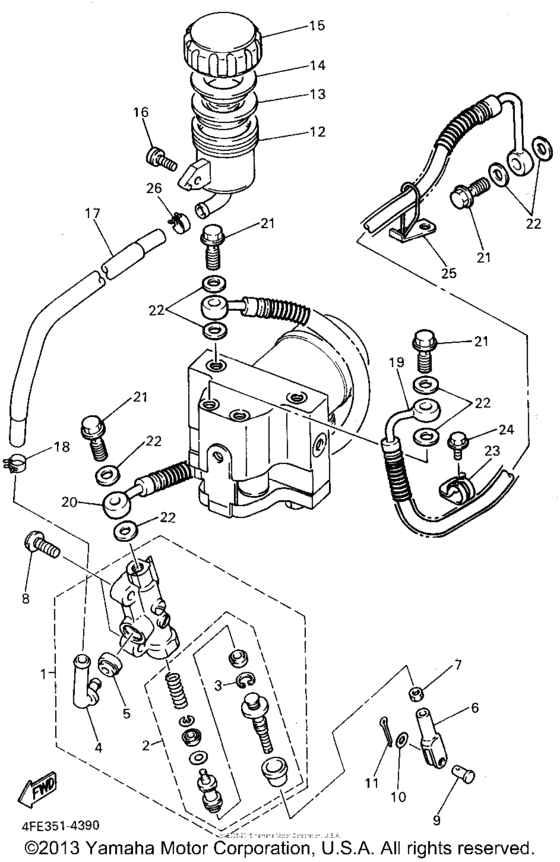

Rear master cylinder Diagram Yamaha GTS1000
- Year
- 1994
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- GTS1000A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4BH-2583V-00-00 Rr. Master Cylinder Assy |
4BH-2583V-00-00 |
from US $138.11 |
||
|
2
|
2
4BH-W0042-50-00 Cylinder Kit, Master |
4BH-W0042-50-00 |
from US $86.15 |
||
|
3
|
3
3LN-2585G-00-00 Circlip |
3LN-2585G-00-00 |
from US $3.26 |
||
|
4
|
4
4BP-2582A-00-00 Joint |
4BP-2582A-00-00 |
from US $10.06 |
||
|
5
|
5
4BP-2585F-00-00 O-Ring |
4BP-2585F-00-00 |
from US $5.67 |
||
| replacement | |||||
|
5
|
5
4BP-2585F-01-00 O-Ring |
4BP-2585F-01-00 |
from US $6.24 |
||
|
6
|
6
31A-27222-00-00 Joint |
31A-27222-00-00 |
from US $30.04 |
||
|
7
|
7
953-03087-00-00
Nut
|
953-03087-00-00 |
— | ||
| replacement | |||||
|
7
|
7
95380-08700-00 Nut |
95380-08700-00 |
from US $1.52 |
||
|
8
|
8
90150-08034-00 Screw, Round Head |
90150-08034-00 |
from US $1.56 |
||
| replacement | |||||
|
8
|
8
92014-08025-00 Bolt, Button Head |
92014-08025-00 |
from US $1.56 |
||
|
9
|
9
90240-08013-00 Pin, Clevis |
90240-08013-00 |
from US $1.94 |
||
|
10
|
10
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
11
|
11
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
11
|
11
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
12
|
12
47X-25894-00-00 Tank, Reservoir |
47X-25894-00-00 |
from US $24.70 |
||
|
13
|
13
360-25854-00-00 Diaphragm, Reservoir |
360-25854-00-00 |
from US $15.58 |
||
| replacement | |||||
|
13
|
13
360-25854-01-00 Gasket, Diaphragm |
360-25854-01-00 |
from US $17.20 |
||
|
14
|
14
2GU-25855-00-00 Bush,diaphragm |
2GU-25855-00-00 |
from US $11.46 |
||
|
15
|
15
2KF-25852-50-00 Cap, Reservoir |
2KF-25852-50-00 |
from US $8.05 |
||
|
16
|
16
90159-06056-00 Screw, With Washer |
90159-06056-00 |
from US $1.70 |
||
| replacement | |||||
|
16
|
16
901-59068-47-00 Screw, With Washer |
901-59068-47-00 |
from US $1.70 |
||
|
17
|
17
4BH-25895-00-00
Hose, Reservoir
|
4BH-25895-00-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
90467-14057-00 Clip |
90467-14057-00 |
from US $1.28 |
||
|
19
|
19
4FE-2582J-01-00
Hose, Brake 6
|
4FE-2582J-01-00 |
— | ||
| replacement | |||||
|
19
|
19
4FE-2582J-02-00
Hose, Brake 6
|
4FE-2582J-02-00 |
— | ||
|
20
|
20
4FE-2582K-01-00
Hose, Brake 7
|
4FE-2582K-01-00 |
— | ||
| replacement | |||||
|
20
|
20
4FE-2582K-02-00
Hose, Brake 7
|
4FE-2582K-02-00 |
— | ||
|
21
|
21
90401-10159-00 Bolt, Union(3Gm) |
90401-10159-00 |
from US $3.26 |
||
|
22
|
22
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.39 |
||
| replacement | |||||
|
22
|
22
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $1.39 |
||
|
23
|
23
3XV-25875-00-00 Holder, Brake Hose 1 |
3XV-25875-00-00 |
from US $10.39 |
||
|
24
|
24
950-26060-16-00
Bolt, Flange
|
950-26060-16-00 |
— | ||
| replacement | |||||
|
24
|
24
901-05066-96-00 Bolt, Flange |
901-05066-96-00 |
from US $2.64 |
||
|
25
|
25
4BH-25886-10-00
Holder, Brake Hose
|
4BH-25886-10-00 |
— | ||
|
26
|
26
90467-13062-00 Clip(Mg5) |
90467-13062-00 |
US $1.39 |
||
| replacement | |||||
|
26
|
26
90467-14117-00 Clip |
90467-14117-00 |
from US $1.28 |
||
