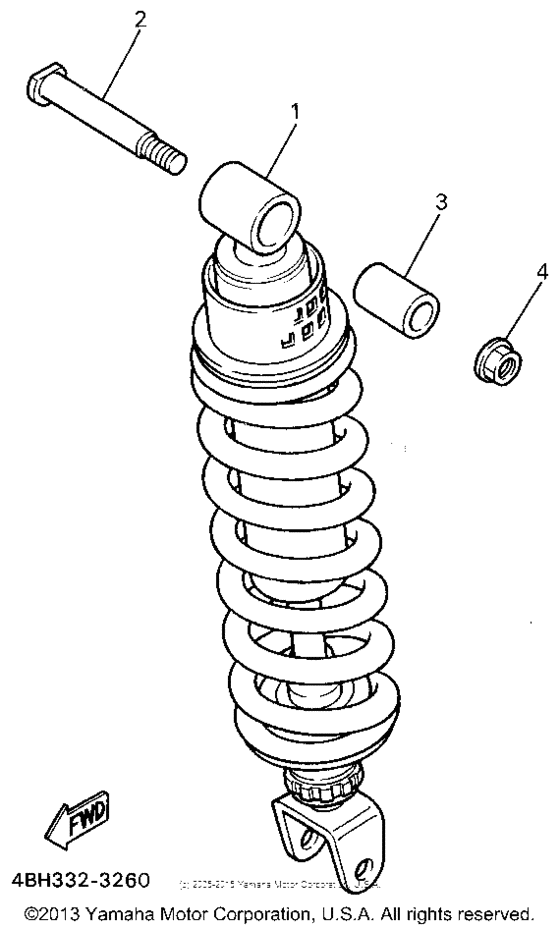

Rear suspension Diagram Yamaha GTS1000
- Year
- 1994
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- GTS1000A
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4BH-22210-11-00
Shk/abs Asy,rear
|
4BH-22210-11-00 |
— | ||
| replacement | |||||
|
1
|
1
4BH-22210-21-00
Shock Absorber Assy, Rear
|
4BH-22210-21-00 |
— | ||
|
2
|
2
90109-101F1-00
Bolt
|
90109-101F1-00 |
— | ||
|
3
|
3
903-87102-T0-00
Collar
|
903-87102-T0-00 |
— | ||
|
4
|
4
95601-10200-00 Nut, Self-Locking |
95601-10200-00 |
from US $6.43 |
||
| replacement | |||||
|
4
|
4
90185-10170-00 Nut, Self-Locking |
90185-10170-00 |
from US $6.94 |
||
