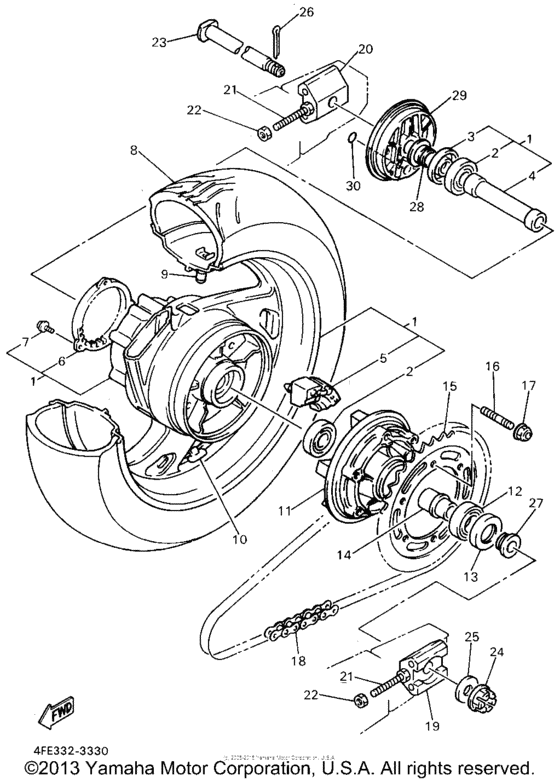

Rear wheel Diagram Yamaha GTS1000
- Year
- 1994
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- GTS1000A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4FE-25370-00-P0
Cast Wheel, Rear
|
4FE-25370-00-P0 |
— | ||
|
2
|
2
933-06304-37-00 Bearing |
933-06304-37-00 |
from US $13.04 |
||
|
3
|
3
931-06300-29-00 Oil Seal |
931-06300-29-00 |
from US $4.58 |
||
|
4
|
4
90560-20386-00 Spacer |
90560-20386-00 |
US $15.43 |
||
|
5
|
5
2GH-25364-00-00 Damper |
2GH-25364-00-00 |
from US $25.50 |
||
|
6
|
6
3YA-2517G-00-00
Rotor, Sensor
|
3YA-2517G-00-00 |
— | ||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
7
|
7
90159-05155-00 Screw, With Washer(2Ja) |
90159-05155-00 |
from US $1.21 |
||
|
8
|
8
94117-176Y0-00
Tire (170/60 Zr17 D202)
170/60 ZR17 D202 DUNLOP |
94117-176Y0-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
170/60 ZR17 D202 DUNLOP |
999-99999-99-00 |
— | ||
|
9
|
9
939-00000-30-00 Valve, Rim (Tr412) |
939-00000-30-00 |
from US $7.65 |
||
|
10
|
10
29L-25398-20-00 Balancer, Wheel (30G)30G UN |
29L-25398-20-00 |
from US $7.65 |
||
| replacement | |||||
|
10
|
10
5MT-25398-20-00 Balancer, Wheel (30G)30G UN |
5MT-25398-20-00 |
from US $8.46 |
||
|
10
|
10
29L-25398-10-00
Balancer, Wheel (20G)
20G UN |
29L-25398-10-00 |
— | ||
| replacement | |||||
|
10
|
10
5MT-25398-10-00 Balancer, Wheel (20G)20G UN |
5MT-25398-10-00 |
from US $8.46 |
||
|
10
|
10
29L-25398-00-00
Balancer, Wheel (10G)
10G UN |
29L-25398-00-00 |
— | ||
| replacement | |||||
|
10
|
10
5MT-25398-00-00 Balancer, Wheel (10G)10G UN |
5MT-25398-00-00 |
from US $8.46 |
||
|
11
|
11
36Y-25366-01-00
Clutch, Hub
|
36Y-25366-01-00 |
— | ||
|
12
|
12
93306-30562-00 Bearing |
93306-30562-00 |
from US $29.89 |
||
|
13
|
13
93106-35030-00 Oil Seal |
93106-35030-00 |
from US $10.31 |
||
|
14
|
14
36Y-25377-00-00
Collar, Wheel
|
36Y-25377-00-00 |
— | ||
|
15
|
15
2GH-25447-22-00
Sprocket, Driven (47T)
47T |
2GH-25447-22-00 |
— | ||
|
16
|
16
90116-10485-00 Bolt, Stud |
90116-10485-00 |
from US $2.69 |
||
|
17
|
17
95601-10200-00 Nut, Self-Locking |
95601-10200-00 |
from US $6.43 |
||
| replacement | |||||
|
17
|
17
90185-10170-00 Nut, Self-Locking |
90185-10170-00 |
from US $6.94 |
||
|
18
|
18
94571-31118-00
Chain
UR TAKASAGO |
94571-31118-00 |
— | ||
| replacement | |||||
|
18
|
18
94581-57118-00
Chain(4Bh)
UR TAKASAGO |
94581-57118-00 |
— | ||
|
18
|
18
94581-57118-00
Chain(4Bh)
UR DAIDO |
94581-57118-00 |
— | ||
|
19
|
19
3GM-25388-00-00 Puller, Chain 1 |
3GM-25388-00-00 |
US $82.28 |
||
|
20
|
20
3GM-25389-00-00 Puller, Chain 2 |
3GM-25389-00-00 |
from US $54.50 |
||
|
21
|
21
90101-08705-00 Bolt |
90101-08705-00 |
from US $1.81 |
||
| replacement | |||||
|
21
|
21
90101-08777-00 Bolt |
90101-08777-00 |
from US $1.81 |
||
|
22
|
22
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
22
|
22
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
23
|
23
3GM-25381-00-00 Axle, Wheel |
3GM-25381-00-00 |
from US $66.04 |
||
| replacement | |||||
|
23
|
23
3GM-25381-10-00 Axle, Wheel |
3GM-25381-10-00 |
from US $91.05 |
||
|
24
|
24
90171-18051-00
Nut, Castle
|
90171-18051-00 |
— | ||
|
25
|
25
90201-18264-00 Washer, Plate (5K7) |
90201-18264-00 |
from US $9.07 |
||
|
26
|
26
91401-40040-00 Pin,cotter |
91401-40040-00 |
from US $3.54 |
||
| replacement | |||||
|
26
|
26
91490-40045-00 Pin. Cotter |
91490-40045-00 |
from US $3.04 |
||
|
27
|
27
90387-203X0-00 Collar |
90387-203X0-00 |
from US $17.48 |
||
|
28
|
28
90387-202X9-00 Collar |
90387-202X9-00 |
from US $16.09 |
||
|
29
|
29
4FE-2537A-00-P0
Housing, Sensor Rear
|
4FE-2537A-00-P0 |
— | ||
|
30
|
30
932-10183-22-00 O-Ring |
932-10183-22-00 |
from US $1.81 |
||
