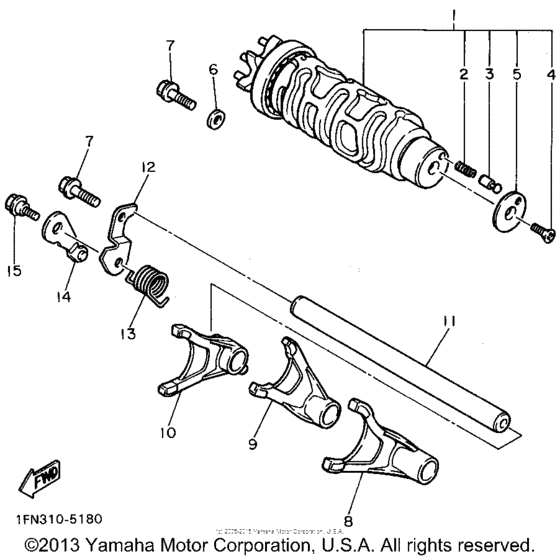

Shift Cam & Fork Diagram Yamaha GTS1000
- Year
- 1994
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- GTS1000A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4BH-18540-00-00 Shift Cam Asy |
4BH-18540-00-00 |
from US $179.28 |
||
| replacement | |||||
|
1
|
1
4BH-18540-02-00 Shift Cam Assy |
4BH-18540-02-00 |
from US $179.28 |
||
|
2
|
2
90501-06022-00 Spring, Compression |
90501-06022-00 |
from US $1.70 |
||
|
3
|
3
278-18542-00-00 Point, Neutral |
278-18542-00-00 |
from US $1.94 |
||
| replacement | |||||
|
3
|
3
4UN-18542-00-00 Point, Neutral |
4UN-18542-00-00 |
from US $1.94 |
||
|
4
|
4
98701-05012-00 Screw, Countersunk |
98701-05012-00 |
from US $1.26 |
||
| replacement | |||||
|
4
|
4
98707-05012-00 Screw, Countersunk |
98707-05012-00 |
from US $2.21 |
||
|
5
|
5
278-18566-00-00
Plate, Side 2
|
278-18566-00-00 |
— | ||
|
6
|
6
90201-06643-00 Washer, Plate |
90201-06643-00 |
from US $1.28 |
||
| replacement | |||||
|
6
|
6
90201-06045-00 Washer, Plate |
90201-06045-00 |
from US $1.28 |
||
|
7
|
7
95811-06016-00 Bolt, Flange |
95811-06016-00 |
from US $1.07 |
||
| replacement | |||||
|
7
|
7
958-17060-16-00 Bolt, Flange |
958-17060-16-00 |
from US $1.18 |
||
|
8
|
8
2GH-18511-00-00 Fork, Shift 1 |
2GH-18511-00-00 |
from US $78.93 |
||
| replacement | |||||
|
8
|
8
3LE-18511-00-00 Fork, Shift 1 |
3LE-18511-00-00 |
from US $85.41 |
||
|
9
|
9
2GH-18512-00-00 Fork, Shift 2 |
2GH-18512-00-00 |
US $84.96 |
||
| replacement | |||||
|
9
|
9
3LE-18512-00-00 Fork, Shift 2 |
3LE-18512-00-00 |
US $84.96 |
||
|
10
|
10
2GH-18513-00-00 Fork, Shift 3 |
2GH-18513-00-00 |
from US $84.29 |
||
| replacement | |||||
|
10
|
10
3LE-18513-00-00 Fork, Shift 3 |
3LE-18513-00-00 |
from US $49.05 |
||
|
11
|
11
4BH-18531-00-00 Bar, Shift Fork Guide 1 |
4BH-18531-00-00 |
from US $30.41 |
||
| replacement | |||||
|
11
|
11
4SV-18531-00-00 Bar, Shift Fork Guide 1 |
4SV-18531-00-00 |
from US $30.41 |
||
|
12
|
12
1AE-18536-00-00 Stopper, Shift Bar |
1AE-18536-00-00 |
US $17.42 |
||
|
13
|
13
90508-26681-00 Spring, Torsion |
90508-26681-00 |
from US $2.80 |
||
|
14
|
14
36Y-18140-00-00 Stopper Lever Assy |
36Y-18140-00-00 |
from US $16.55 |
||
|
15
|
15
90109-063F8-00 Bolt |
90109-063F8-00 |
from US $2.27 |
||
| replacement | |||||
|
15
|
15
90109-06036-00 Bolt |
90109-06036-00 |
from US $2.27 |
||
