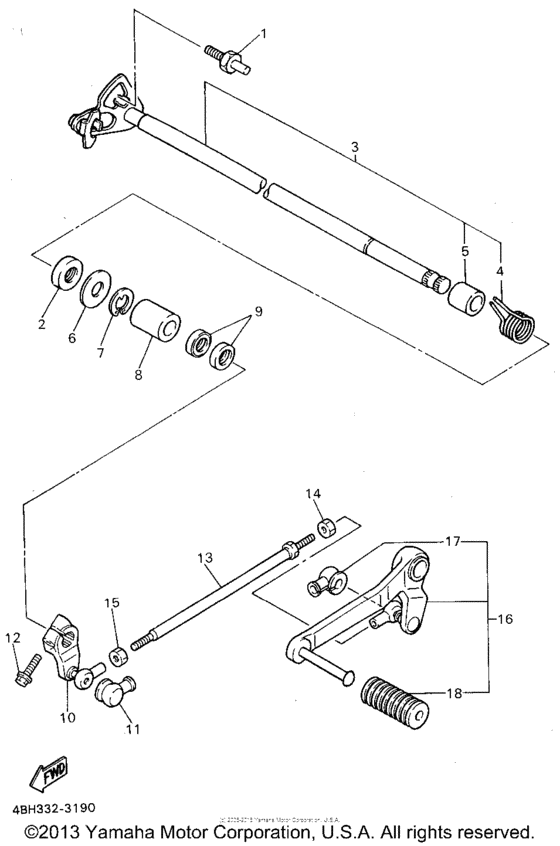

Shift shaft Diagram Yamaha GTS1000
- Year
- 1994
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- GTS1000A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4G0-18127-00-00 Stopper, Screw |
4G0-18127-00-00 |
from US $6.94 |
||
| replacement | |||||
|
1
|
1
5VK-18127-00-00 Stopper, Screw |
5VK-18127-00-00 |
from US $6.94 |
||
|
2
|
2
931-02123-21-00 Oil Seal |
931-02123-21-00 |
from US $4.86 |
||
|
3
|
3
1AE-18101-01-00 Shift Shaft Asy.1 |
1AE-18101-01-00 |
from US $35.99 |
||
| replacements | |||||
|
3
|
3
1AE-18101-02-00 SHIFT PEDAL ASY |
1AE-18101-02-00 |
from US $35.99 |
||
|
3
|
3
1AE-18101-03-00 Shift Shaft Assy |
1AE-18101-03-00 |
from US $31.28 |
||
|
4
|
4
905-08326-82-00
Spring, Torsion
|
905-08326-82-00 |
— | ||
| replacement | |||||
|
4
|
4
905-08321-42-00 Spring, Torsion |
905-08321-42-00 |
from US $4.99 |
||
|
5
|
5
90387-114K8-00 Collar |
90387-114K8-00 |
from US $4.68 |
||
|
6
|
6
90201-12575-00 Washer, Plate (353) |
90201-12575-00 |
from US $1.70 |
||
|
7
|
7
99006-10600-00 Circlip |
99006-10600-00 |
from US $1.39 |
||
|
8
|
8
90560-12191-00 Spacer |
90560-12191-00 |
from US $3.54 |
||
|
9
|
9
931-09120-53-00
Oil Seal
|
931-09120-53-00 |
— | ||
| replacement | |||||
|
9
|
9
931-09120-75-00 Oil Seal |
931-09120-75-00 |
from US $4.16 |
||
|
10
|
10
4BH-18112-00-00
Arm, Shift
|
4BH-18112-00-00 |
— | ||
|
11
|
11
2H9-18154-00-00 Cover, Dust |
2H9-18154-00-00 |
from US $5.68 |
||
|
12
|
12
958-26060-20-00
Bolt, Flange
|
958-26060-20-00 |
— | ||
| replacement | |||||
|
12
|
12
95817-06020-00 Bolt, Flange |
95817-06020-00 |
from US $1.25 |
||
|
13
|
13
2H9-18115-00-00 Rod, Shift |
2H9-18115-00-00 |
from US $15.30 |
||
|
14
|
14
901-70062-28-00 Nut (Counter Clockwise) |
901-70062-28-00 |
from US $1.81 |
||
|
15
|
15
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
| replacement | |||||
|
15
|
15
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
16
|
16
4BH-18110-00-00 Shift Pedal Assembly |
4BH-18110-00-00 |
from US $142.30 |
||
|
17
|
17
2H9-18154-00-00 Cover, Dust |
2H9-18154-00-00 |
from US $5.68 |
||
|
18
|
18
132-18113-01-00 Cover, Shift Pedal |
132-18113-01-00 |
from US $2.02 |
||
