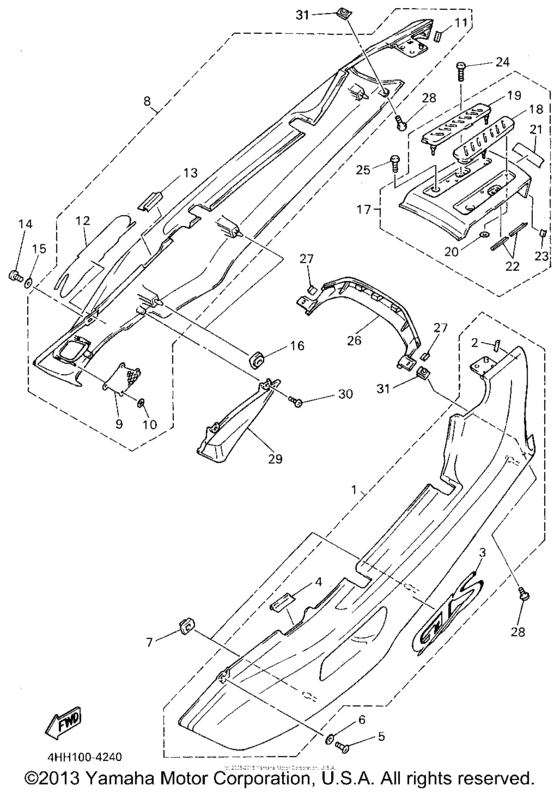

Side cover Diagram Yamaha GTS1000
- Year
- 1994
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- GTS1000A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4BH-Y2171-80-P4
Cover, Side 1
DARK PURPLISH BLUE METALLIC 2 |
4BH-Y2171-80-P4 |
— | ||
|
2
|
2
3TU-2178A-00-00 Label |
3TU-2178A-00-00 |
from US $2.69 |
||
|
3
|
3
4BH-21737-00-00 Emblem |
4BH-21737-00-00 |
from US $62.96 |
||
|
4
|
4
1JK-21268-00-00 Seal |
1JK-21268-00-00 |
from US $5.98 |
||
|
5
|
5
98906-06012-00 Screw, Bind |
98906-06012-00 |
from US $1.42 |
||
| replacement | |||||
|
5
|
5
98907-06012-00 Screw, Bind |
98907-06012-00 |
from US $1.42 |
||
|
6
|
6
90202-06113-00 Washer, Plate |
90202-06113-00 |
from US $1.42 |
||
|
7
|
7
90480-01510-00
Grommet
|
90480-01510-00 |
— | ||
|
8
|
8
4BH-Y2172-80-P4
Cover, Side 2
DARK PURPLISH BLUE METALLIC 2 |
4BH-Y2172-80-P4 |
— | ||
|
9
|
9
4BH-2172A-00-00 Panel 1 |
4BH-2172A-00-00 |
US $22.19 |
||
|
10
|
10
90183-03010-00 Nut, Spring |
90183-03010-00 |
from US $1.21 |
||
|
11
|
11
3TU-2178A-00-00 Label |
3TU-2178A-00-00 |
from US $2.69 |
||
|
12
|
12
4FE-21782-00-00
Emblem 2
|
4FE-21782-00-00 |
— | ||
|
13
|
13
1JK-21268-00-00 Seal |
1JK-21268-00-00 |
from US $5.98 |
||
|
14
|
14
98906-06012-00 Screw, Bind |
98906-06012-00 |
from US $1.42 |
||
| replacement | |||||
|
14
|
14
98907-06012-00 Screw, Bind |
98907-06012-00 |
from US $1.42 |
||
|
15
|
15
90202-06113-00 Washer, Plate |
90202-06113-00 |
from US $1.42 |
||
|
16
|
16
90480-01510-00
Grommet
|
90480-01510-00 |
— | ||
|
17
|
17
4BH-Y2165-50-P4
Cover, Rear Fender
|
4BH-Y2165-50-P4 |
— | ||
|
18
|
18
4BH-21639-00-00
Damper 2
|
4BH-21639-00-00 |
— | ||
|
19
|
19
4BH-21649-00-00
Damper
|
4BH-21649-00-00 |
— | ||
|
20
|
20
90183-04005-00 Nut Spring 116283170100 |
90183-04005-00 |
from US $1.70 |
||
|
21
|
21
99237-00080-00 Emblem, Yamaha |
99237-00080-00 |
from US $7.90 |
||
| replacement | |||||
|
21
|
21
992-47000-80-00 Emblem, Yamaha |
992-47000-80-00 |
from US $7.76 |
||
|
22
|
22
46X-21269-00-00 Seal |
46X-21269-00-00 |
from US $5.38 |
||
|
23
|
23
3TU-2178A-00-00 Label |
3TU-2178A-00-00 |
from US $2.69 |
||
|
24
|
24
98903-06012-00 Screw, Bind |
98903-06012-00 |
from US $1.07 |
||
| replacement | |||||
|
24
|
24
98980-06012-00 Screw, Bind |
98980-06012-00 |
from US $1.18 |
||
|
25
|
25
98980-06016-00 Screw, Bind (705) |
98980-06016-00 |
from US $1.52 |
||
|
26
|
26
4BH-2172X-00-P4
Cover, Taillight
|
4BH-2172X-00-P4 |
— | ||
|
27
|
27
3MA-27491-00-00 Protector |
3MA-27491-00-00 |
from US $4.39 |
||
|
28
|
28
98906-06012-00 Screw, Bind |
98906-06012-00 |
from US $1.42 |
||
| replacement | |||||
|
28
|
28
98907-06012-00 Screw, Bind |
98907-06012-00 |
from US $1.42 |
||
|
29
|
29
4FE-21731-00-00 Cover, Side 3 |
4FE-21731-00-00 |
US $65.99 |
||
|
30
|
30
97706-50012-00 Screw, Truss Head Tapping |
97706-50012-00 |
from US $1.28 |
||
| replacement | |||||
|
30
|
30
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
31
|
31
90183-06023-00 Nut, Spring |
90183-06023-00 |
from US $3.68 |
||
