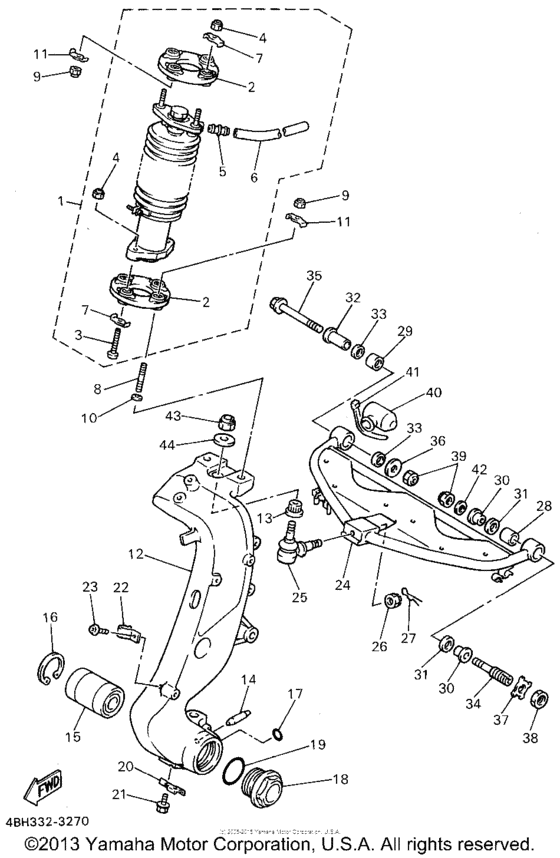

Steering Diagram Yamaha GTS1000
- Year
- 1994
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- GTS1000A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4BH-23530-00-00
Tube Steering Comp
|
4BH-23530-00-00 |
— | ||
|
2
|
2
4BH-2353A-00-00
Joint, Ring
|
4BH-2353A-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
90109-087F9-00 Bolt, Button Head |
90109-087F9-00 |
from US $2.12 |
||
| replacement | |||||
|
3
|
3
92017-08040-00 Bolt, Button Head |
92017-08040-00 |
from US $3.74 |
||
|
4
|
4
95616-08100-00 Nut, U (5V6) |
95616-08100-00 |
from US $3.26 |
||
| replacement | |||||
|
4
|
4
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
5
|
5
4BH-24119-00-00
Tube, Connecting
|
4BH-24119-00-00 |
— | ||
|
6
|
6
4BH-2384R-00-00
Hose
|
4BH-2384R-00-00 |
— | ||
|
7
|
7
4BH-23392-00-00
Washer, Special
|
4BH-23392-00-00 |
— | ||
|
8
|
8
95611-08630-00 Bolt, Stud |
95611-08630-00 |
from US $3.19 |
||
| replacement | |||||
|
8
|
8
95617-08630-00 Bolt, Stud |
95617-08630-00 |
from US $4.03 |
||
|
9
|
9
95616-08100-00 Nut, U (5V6) |
95616-08100-00 |
from US $3.26 |
||
| replacement | |||||
|
9
|
9
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
10
|
10
90201-08085-00 Washer, Plate |
90201-08085-00 |
from US $1.70 |
||
|
11
|
11
4BH-23392-00-00
Washer, Special
|
4BH-23392-00-00 |
— | ||
|
12
|
12
4BH-23512-10-P1 Arm, Knuckle 1LIGHT YELLOWISH GRAY 1 |
4BH-23512-10-P1 |
US $1,237.66 |
||
|
13
|
13
4BH-23526-00-00
Bush
|
4BH-23526-00-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
91609-40032-00 Pin, Spring |
91609-40032-00 |
US $2.41 |
||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
93307-20602-00
Bearing
|
93307-20602-00 |
— | ||
|
16
|
16
934-20620-70-00
Circlip
|
934-20620-70-00 |
— | ||
| replacement | |||||
|
16
|
16
99009-62500-00 Circlip |
99009-62500-00 |
from US $2.08 |
||
|
17
|
17
932-10183-22-00 O-Ring |
932-10183-22-00 |
from US $1.81 |
||
|
18
|
18
4BH-23741-00-00 Cap 1 |
4BH-23741-00-00 |
US $59.45 |
||
|
19
|
19
93210-59748-00 O-Ring |
93210-59748-00 |
from US $7.51 |
||
|
20
|
20
4BH-2332U-00-00
Plate, Support
|
4BH-2332U-00-00 |
— | ||
|
21
|
21
95811-06010-00 Bolt, Flange |
95811-06010-00 |
from US $1.07 |
||
| replacements | |||||
|
21
|
21
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
21
|
21
95812-06010-00 Bolt, Flange |
95812-06010-00 |
from US $1.07 |
||
|
22
|
22
4BH-23317-00-00
Holder, Cable
|
4BH-23317-00-00 |
— | ||
|
23
|
23
92011-06012-00 Screw |
92011-06012-00 |
from US $1.07 |
||
| replacement | |||||
|
23
|
23
92014-06012-00 Bolt, Button Head |
92014-06012-00 |
from US $1.18 |
||
|
24
|
24
4FE-23540-00-33
Front Upper Arm Comp. (Left)
|
4FE-23540-00-33 |
— | ||
|
25
|
25
4BH-23549-00-00
Ball Joint 1
|
4BH-23549-00-00 |
— | ||
|
26
|
26
95611-10200-00 Nut, U Flange |
95611-10200-00 |
from US $2.75 |
||
| replacements | |||||
|
26
|
26
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.69 |
||
|
26
|
26
956-17102-00-00
Nut, U Flange
|
956-17102-00-00 |
— | ||
|
27
|
27
90468-20100-00
Clip
|
90468-20100-00 |
— | ||
|
28
|
28
93399-99901-00
Bearing
|
93399-99901-00 |
— | ||
| replacement | |||||
|
28
|
28
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
29
|
29
933-17317-01-00 Bearing |
933-17317-01-00 |
from US $11.23 |
||
|
30
|
30
90387-1200E-00
Collar
|
90387-1200E-00 |
— | ||
| replacement | |||||
|
30
|
30
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
31
|
31
93104-15101-00 Oil Seal |
93104-15101-00 |
US $2.20 |
||
|
32
|
32
4BH-23364-00-00
Collar 2
|
4BH-23364-00-00 |
— | ||
|
33
|
33
93109-17048-00 Oil Seal (Sdo 17-24-4)17-24-4 |
93109-17048-00 |
from US $7.18 |
||
|
34
|
34
4BH-23451-00-00
Bolt, Fitting 1
|
4BH-23451-00-00 |
— | ||
|
35
|
35
90105-10451-00 Bolt, Flange |
90105-10451-00 |
from US $7.37 |
||
| replacement | |||||
|
35
|
35
90105-10737-00 Bolt, Flange |
90105-10737-00 |
from US $7.37 |
||
|
36
|
36
90201-105A2-00 Washer, Plate (4X7) |
90201-105A2-00 |
from US $1.70 |
||
|
37
|
37
4BH-23418-00-00
Washer, Special
|
4BH-23418-00-00 |
— | ||
|
38
|
38
90170-18412-00 Nut |
90170-18412-00 |
from US $12.89 |
||
| replacement | |||||
|
38
|
38
90170-18392-00 Nut |
90170-18392-00 |
from US $11.23 |
||
|
39
|
39
95611-10100-00 Nut, U |
95611-10100-00 |
from US $4.68 |
||
| replacement | |||||
|
39
|
39
95614-10100-00 Nut, U |
95614-10100-00 |
from US $4.68 |
||
|
40
|
40
4BH-2384L-00-00
Cover, Dust
|
4BH-2384L-00-00 |
— | ||
|
41
|
41
12R-82591-00-00
Band
|
12R-82591-00-00 |
— | ||
| replacement | |||||
|
41
|
41
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
42
|
42
90201-101J1-00 Washer, Plate |
90201-101J1-00 |
from US $1.66 |
||
|
43
|
43
901-85121-19-00 Nut, Self Locking (23X) |
901-85121-19-00 |
from US $7.79 |
||
|
44
|
44
90201-120A5-00 Washer, Plate |
90201-120A5-00 |
from US $4.39 |
||
