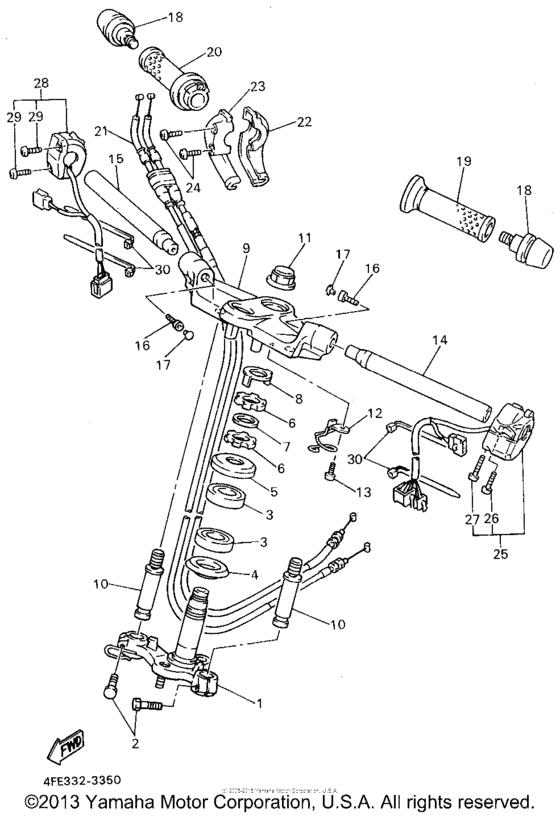

Steering handle & cable Diagram Yamaha GTS1000
- Year
- 1994
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- GTS1000A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4BH-23340-00-00
Under Bracket Comp
|
4BH-23340-00-00 |
— | ||
|
2
|
2
90101-06757-00 Bolt |
90101-06757-00 |
from US $1.56 |
||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
93399-99937-00 Bearing |
93399-99937-00 |
from US $33.15 |
||
| replacement | |||||
|
3
|
3
93399-99931-00 Bearing |
93399-99931-00 |
from US $32.60 |
||
|
4
|
4
164-23462-00-00 Seal, Dust |
164-23462-00-00 |
from US $4.72 |
||
|
5
|
5
3HE-23416-00-00 Cover, Ball Race 2 |
3HE-23416-00-00 |
from US $15.02 |
||
| replacement | |||||
|
5
|
5
1W1-23416-00-00 Cover, Ball Race 2 |
1W1-23416-00-00 |
from US $15.02 |
||
|
6
|
6
901-79256-15-00
Nut
|
901-79256-15-00 |
— | ||
| replacement | |||||
|
6
|
6
901-79258-11-00 Nut |
901-79258-11-00 |
from US $5.44 |
||
|
7
|
7
90202-26142-00 Washer, Plate |
90202-26142-00 |
from US $2.08 |
||
|
8
|
8
3YF-23418-00-00 Washer, Special |
3YF-23418-00-00 |
from US $7.65 |
||
|
9
|
9
4BH-23435-00-P1 Crown, Handle |
4BH-23435-00-P1 |
US $481.64 |
||
|
10
|
10
4BH-2612F-00-00 Boss |
4BH-2612F-00-00 |
US $65.54 |
||
|
11
|
11
90176-22050-00 Nut, Crown |
90176-22050-00 |
from US $15.44 |
||
| replacement | |||||
|
11
|
11
90176-22081-00 Nut, Crown |
90176-22081-00 |
from US $13.74 |
||
|
12
|
12
4BH-26131-00-00
Guide, Cable 1
|
4BH-26131-00-00 |
— | ||
|
13
|
13
98906-06008-00 Screw, Binding (8G6) |
98906-06008-00 |
from US $1.21 |
||
| replacement | |||||
|
13
|
13
98907-06008-00 Screw, Bind |
98907-06008-00 |
from US $1.39 |
||
|
14
|
14
4BH-26111-00-00 Handlebar |
4BH-26111-00-00 |
US $88.58 |
||
|
15
|
15
4BH-26112-00-00 Bar, Handle |
4BH-26112-00-00 |
US $87.70 |
||
|
16
|
16
91316-08025-00 Bolt |
91316-08025-00 |
from US $1.07 |
||
| replacement | |||||
|
16
|
16
913-17080-25-00 Bolt |
913-17080-25-00 |
from US $1.16 |
||
|
17
|
17
341-23469-00-00 Cap, Bolt |
341-23469-00-00 |
from US $2.91 |
||
|
18
|
18
4BH-26246-00-00
End, Grip
|
4BH-26246-00-00 |
— | ||
|
19
|
19
1KG-26241-00-00
Grip (Left)
|
1KG-26241-00-00 |
— | ||
|
20
|
20
3FH-26240-00-00 Grip Assembly |
3FH-26240-00-00 |
from US $35.10 |
||
|
21
|
21
4BH-26302-00-00
Throttle Cable Assembly
|
4BH-26302-00-00 |
— | ||
|
22
|
22
3XW-26281-01-00 Cap, Grip Upper |
3XW-26281-01-00 |
from US $22.24 |
||
|
23
|
23
3XW-26282-01-00 Cap, Grip Under |
3XW-26282-01-00 |
from US $13.48 |
||
|
24
|
24
98506-05035-00 Screw, Pan Head |
98506-05035-00 |
from US $1.42 |
||
| replacement | |||||
|
24
|
24
98507-05035-00 Screw, Pan Head |
98507-05035-00 |
from US $1.42 |
||
|
25
|
25
4HH-83973-00-00
Switch, Handle 3
|
4HH-83973-00-00 |
— | ||
|
26
|
26
985-06050-30-00
Screw, Pan Head
|
985-06050-30-00 |
— | ||
| replacement | |||||
|
26
|
26
98517-05030-00 Screw, Pan Head |
98517-05030-00 |
from US $1.22 |
||
|
27
|
27
98506-05040-00 Screw, Pan Head |
98506-05040-00 |
from US $1.42 |
||
| replacement | |||||
|
27
|
27
98507-05040-00 Screw, Pan Head |
98507-05040-00 |
from US $1.42 |
||
|
28
|
28
4FE-83975-00-00 Switch, Handle 2 |
4FE-83975-00-00 |
US $144.38 |
||
|
29
|
29
90157-05057-00 Screw, Pan Head(41N) |
90157-05057-00 |
from US $1.98 |
||
|
30
|
30
904-64130-73-00
Clamp
|
904-64130-73-00 |
— | ||
| replacement | |||||
|
30
|
30
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.39 |
||
