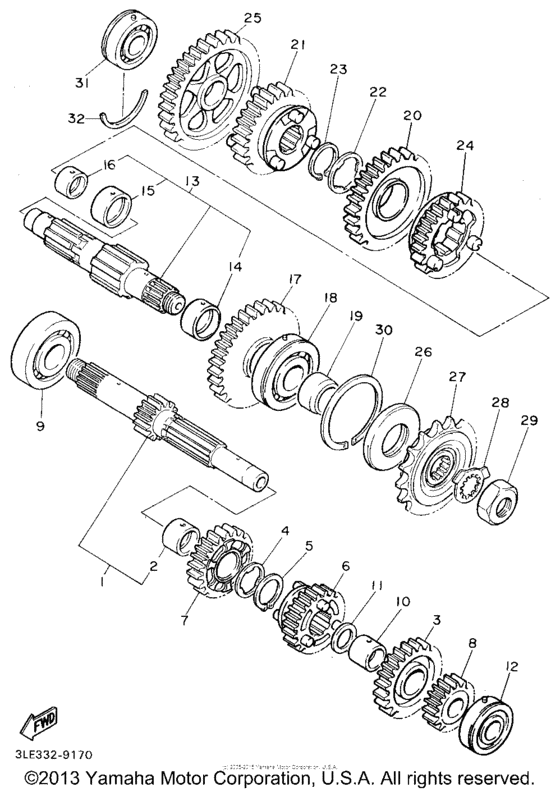

Transmission Diagram Yamaha GTS1000
- Year
- 1994
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- GTS1000A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2GH-W1741-00-00 Main Axle Assembly (14T)14T |
2GH-W1741-00-00 |
US $298.53 |
||
|
2
|
2
90387-253M6-00 Collar |
90387-253M6-00 |
from US $13.32 |
||
|
3
|
3
2GH-17151-00-00 Gear, 5Th Pinion5TH PINION 27T |
2GH-17151-00-00 |
from US $119.61 |
||
|
4
|
4
902-09221-91-00 Washer |
902-09221-91-00 |
from US $1.70 |
||
|
5
|
5
934-40250-84-00 Circlip |
934-40250-84-00 |
from US $1.81 |
||
|
6
|
6
2GH-17131-00-00
Gear, 3Rd Pinion
3RD PINION |
2GH-17131-00-00 |
— | ||
| replacement | |||||
|
6
|
6
2GH-17131-02-00
Gear, 3Rd Pinion
3RD PINION |
2GH-17131-02-00 |
— | ||
|
7
|
7
2GH-17141-00-00 Gear, 4Th Pinion4TH PINION 23T |
2GH-17141-00-00 |
US $128.92 |
||
|
8
|
8
2GH-17121-00-00 Gear, 2Nd Pinion2ND PINION 18T |
2GH-17121-00-00 |
US $54.67 |
||
|
9
|
9
93306-30525-00 Bearing (B6305) |
93306-30525-00 |
from US $18.84 |
||
|
10
|
10
90387-203M7-00 Collar |
90387-203M7-00 |
from US $14.25 |
||
|
11
|
11
90201-200K3-00
Washer, Plate
|
90201-200K3-00 |
— | ||
|
12
|
12
93306-20455-00 Bearing |
93306-20455-00 |
from US $26.92 |
||
|
13
|
13
3GM-W1742-00-00 Drive Axle Assembly |
3GM-W1742-00-00 |
US $281.77 |
||
| replacement | |||||
|
13
|
13
4SV-W1742-00-00 Drive Axle Assembly |
4SV-W1742-00-00 |
US $281.77 |
||
|
14
|
14
90387-271T7-00 Collar |
90387-271T7-00 |
from US $23.35 |
||
| replacement | |||||
|
14
|
14
90387-2707Y-00 Collar(4Sv) |
90387-2707Y-00 |
from US $23.35 |
||
|
15
|
15
90387-281T8-00 Collar |
90387-281T8-00 |
from US $23.52 |
||
|
16
|
16
90387-211T9-00 Collar |
90387-211T9-00 |
from US $21.08 |
||
|
17
|
17
3GM-17221-00-00 Gear, 2Nd Wheel2ND WHEEL 32T |
3GM-17221-00-00 |
from US $92.34 |
||
|
18
|
18
93305-30501-00 Bearing |
93305-30501-00 |
US $109.94 |
||
|
19
|
19
90387-255V9-00 Collar |
90387-255V9-00 |
US $24.77 |
||
|
20
|
20
3GM-17231-00-00
Gear, 3Rd Wheel
3RD WHEEL |
3GM-17231-00-00 |
— | ||
| replacement | |||||
|
20
|
20
3GM-17231-01-00
Gear, 3Rd Wheel
3RD WHEEL |
3GM-17231-01-00 |
— | ||
|
21
|
21
3GM-17241-00-00
Gear,4Th Wheel
|
3GM-17241-00-00 |
— | ||
| replacement | |||||
|
21
|
21
3GM-17241-01-00 Gear, 4Th Wheel |
3GM-17241-01-00 |
from US $116.32 |
||
|
22
|
22
90209-25196-00 Washer |
90209-25196-00 |
from US $1.56 |
||
|
23
|
23
93440-28062-00 Circlip |
93440-28062-00 |
from US $2.70 |
||
|
24
|
24
3GM-17251-00-00
Gear,5Th Wheel
|
3GM-17251-00-00 |
— | ||
| replacement | |||||
|
24
|
24
3GM-17251-01-00
Gear, 5Th Wheel
|
3GM-17251-01-00 |
— | ||
|
25
|
25
2GH-17211-01-00 Gear, 1St Wheel1ST WHEEL |
2GH-17211-01-00 |
US $132.88 |
||
| replacement | |||||
|
25
|
25
2GH-17211-02-00 Gear, 1St Wheel1ST WHEEL |
2GH-17211-02-00 |
US $132.88 |
||
|
26
|
26
931-02354-23-00 Oil Seal |
931-02354-23-00 |
from US $9.85 |
||
|
27
|
27
2GH-17460-11-00 Sprocket, Drive 17T (2Gh174617017T 2GH1746170 |
2GH-17460-11-00 |
from US $55.22 |
||
|
28
|
28
902-15210-22-00
Washer, Lock
|
902-15210-22-00 |
— | ||
| replacement | |||||
|
28
|
28
902-15212-90-00 Washer, Lock |
902-15212-90-00 |
from US $7.63 |
||
|
29
|
29
90179-18020-00 Nut |
90179-18020-00 |
from US $5.40 |
||
|
30
|
30
278-17424-01-00 Circlip 1 |
278-17424-01-00 |
from US $4.38 |
||
|
31
|
31
93306-20455-00 Bearing |
93306-20455-00 |
from US $26.92 |
||
|
32
|
32
93440-45144-00 Circlip |
93440-45144-00 |
from US $3.12 |
||
