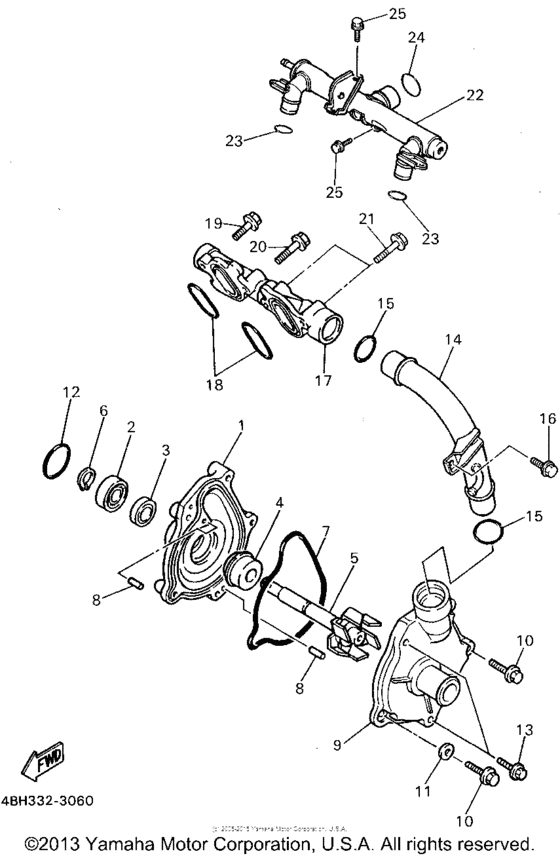

Water pump Diagram Yamaha GTS1000
- Year
- 1994
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- GTS1000A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1UF-12421-09-00
Housing, Water Pump
|
1UF-12421-09-00 |
— | ||
|
2
|
2
933-06001-06-00
Bearing
|
933-06001-06-00 |
— | ||
| replacement | |||||
|
2
|
2
93306-00105-00 Bearing |
93306-00105-00 |
from US $9.44 |
||
|
3
|
3
931-01120-60-00 Oil Seal |
931-01120-60-00 |
from US $6.94 |
||
| replacement | |||||
|
3
|
3
931-01121-73-00 Oil Seal |
931-01121-73-00 |
from US $5.40 |
||
|
4
|
4
11H-12438-00-00
Seal, Mechanical
|
11H-12438-00-00 |
— | ||
| replacement | |||||
|
4
|
4
11H-12438-10-00 Seal, Mechanical |
11H-12438-10-00 |
from US $22.90 |
||
|
5
|
5
1UF-12450-00-00
Impeller Shaft Assembly
|
1UF-12450-00-00 |
— | ||
|
6
|
6
990-09124-00-00 Circlip |
990-09124-00-00 |
from US $1.66 |
||
|
7
|
7
1AE-12439-00-00 O-Ring |
1AE-12439-00-00 |
from US $16.58 |
||
|
8
|
8
93604-10011-00 Pin, Dowel |
93604-10011-00 |
from US $1.70 |
||
|
9
|
9
4BH-12422-00-00
Cover, Housing
|
4BH-12422-00-00 |
— | ||
|
10
|
10
95023-06025-00 Bolt, Flange (Small Head) |
95023-06025-00 |
from US $1.56 |
||
| replacement | |||||
|
10
|
10
95024-06025-00 Bolt, Flange (Small Head) |
95024-06025-00 |
from US $1.66 |
||
|
11
|
11
904-30060-14-00 Gasket (Copper washer) |
904-30060-14-00 |
from US $1.39 |
||
|
12
|
12
932-10331-33-00 O-Ring |
932-10331-33-00 |
from US $1.81 |
||
|
13
|
13
95021-06050-00 Bolt, Flange |
95021-06050-00 |
US $1.53 |
||
| replacements | |||||
|
13
|
13
90105-06798-00 Bolt, Flange |
90105-06798-00 |
from US $3.89 |
||
|
13
|
13
950-27060-50-00
Bolt, Flange
|
950-27060-50-00 |
— | ||
|
14
|
14
4BH-12481-01-00
Pipe 1
|
4BH-12481-01-00 |
— | ||
|
15
|
15
932-10237-87-00 O-Ring |
932-10237-87-00 |
from US $1.52 |
||
|
16
|
16
95023-06012-00 Bolt, Flange (Small Head) |
95023-06012-00 |
from US $1.56 |
||
| replacement | |||||
|
16
|
16
95024-06012-00 Bolt, Flange (Small Head) |
95024-06012-00 |
from US $1.56 |
||
|
17
|
17
3DX-12469-00-00
Joint 1
|
3DX-12469-00-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
93210-30694-00 O-Ring |
93210-30694-00 |
from US $1.94 |
||
|
19
|
19
95023-06020-00 Bolt, Flg.(Small Head) |
95023-06020-00 |
from US $1.56 |
||
| replacement | |||||
|
19
|
19
95024-06020-00 Bolt, Flange (Small Head) |
95024-06020-00 |
from US $1.66 |
||
|
20
|
20
95023-06030-00 Bolt, Flange (Small Head) |
95023-06030-00 |
from US $1.56 |
||
| replacement | |||||
|
20
|
20
95024-06030-00 Bolt, Flange (Small Head) |
95024-06030-00 |
from US $1.56 |
||
|
21
|
21
95023-06040-00 Bolt, Flange (Small Head) |
95023-06040-00 |
from US $1.56 |
||
| replacement | |||||
|
21
|
21
95024-06040-00 Bolt, Flange (Small Head) |
95024-06040-00 |
from US $1.56 |
||
|
22
|
22
4BH-12482-00-00
Pipe 2
|
4BH-12482-00-00 |
— | ||
| replacement | |||||
|
22
|
22
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
23
|
23
932-10184-17-00 O-Ring |
932-10184-17-00 |
from US $1.94 |
||
|
24
|
24
932-10237-87-00 O-Ring |
932-10237-87-00 |
from US $1.52 |
||
|
25
|
25
95023-06010-00 Bolt, Flange (Small Head) |
95023-06010-00 |
US $1.56 |
||
| replacement | |||||
|
25
|
25
95024-06010-00 Bolt, Flange (Small Head) |
95024-06010-00 |
from US $1.56 |
||
