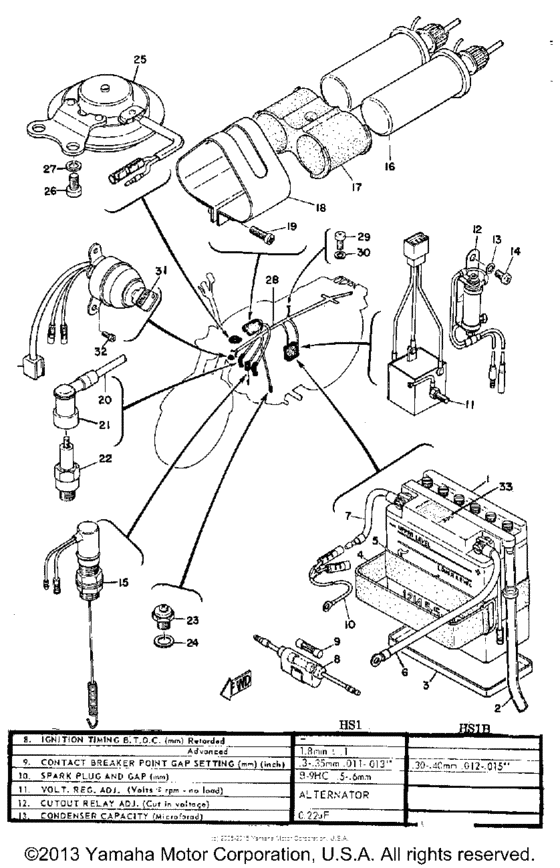

Electrical Diagram Yamaha HS1
- Year
- 1971
- Sales region
- USA
- Engine Capacity
- 100
- Model
- HS1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
BTY-12N55-3B-00
12N5.5-3B Gs Batter
GS BATTER |
BTY-12N55-3B-00 |
— | ||
| replacements | |||||
|
1
|
1
12N-553B0-00-00
element
GS BATTER |
12N-553B0-00-00 |
— | ||
|
1
|
1
12N-553BA-00-00
12N5.5-3B Gs Battery
GS BATTER |
12N-553BA-00-00 |
— | ||
|
2
|
2
90445-08046-00 Hose (L1500) |
90445-08046-00 |
from US $10.91 |
||
| replacement | |||||
|
2
|
2
90445-084J0-00 Pipe |
90445-084J0-00 |
from US $8.76 |
||
|
3
|
3
102-82122-00-00
Seat, Battery
|
102-82122-00-00 |
— | ||
|
4
|
4
26H-82131-00-00 Band, Battery |
26H-82131-00-00 |
from US $8.36 |
||
|
5
|
5
164-82124-00-00
Band, Battery
|
164-82124-00-00 |
— | ||
|
6
|
6
183-82115-00-00
Wire, Plus Lead
|
183-82115-00-00 |
— | ||
|
7
|
7
183-82116-00-00
Wire, Minus Lead
|
183-82116-00-00 |
— | ||
|
8
|
8
2UJ-82150-01-00 Fuse Holder Assy |
2UJ-82150-01-00 |
from US $11.76 |
||
| replacement | |||||
|
8
|
8
2UJ-82150-02-00 Fuse Holder Assy |
2UJ-82150-02-00 |
from US $9.89 |
||
|
9
|
9
1A0-82161-00-00 Fuse (12V-20A) |
1A0-82161-00-00 |
from US $11.96 |
||
|
10
|
10
183-84756-00-00
Wire, Earth Lead
|
183-84756-00-00 |
— | ||
|
11
|
11
357-81970-60-00
Rectifier Assembly
|
357-81970-60-00 |
— | ||
|
12
|
12
287-81911-10-00
Resistor
|
287-81911-10-00 |
— | ||
|
13
|
13
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
14
|
14
985-80060-10-00 Screw, Pan Head (92503-06010-0092503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
15
|
15
183-82530-01-00
Stop Switch Assembly
|
183-82530-01-00 |
— | ||
|
16
|
16
168-82310-70-00
Ignition Coil Assembly
|
168-82310-70-00 |
— | ||
|
17
|
17
168-82312-00-00
Holder, Coil Ftng
|
168-82312-00-00 |
— | ||
|
18
|
18
168-82311-00-00
Band, Coil Fitting
|
168-82311-00-00 |
— | ||
|
19
|
19
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
20
|
20
137-82341-01-00 Cord, Hight Tension 1 |
137-82341-01-00 |
US $47.50 |
||
|
21
|
21
56J-82370-00-00 Plug Cap Assy |
56J-82370-00-00 |
from US $16.43 |
||
|
22
|
22
947-01000-33-00
Spark Plug B9Hc
B9HC |
947-01000-33-00 |
— | ||
|
23
|
23
136-82540-00-00 Reverse Switch Assembly |
136-82540-00-00 |
from US $18.84 |
||
| replacement | |||||
|
23
|
23
136-82540-03-00 Reverse Switch Assembly |
136-82540-03-00 |
from US $18.84 |
||
|
24
|
24
37R-82543-00-00 Washer, Plate |
37R-82543-00-00 |
from US $1.28 |
||
| replacement | |||||
|
24
|
24
90201-12790-00 Washer, Plate |
90201-12790-00 |
from US $1.28 |
||
|
25
|
25
326-83371-21-00
Horn
|
326-83371-21-00 |
— | ||
|
26
|
26
985-80060-10-00 Screw, Pan Head (92503-06010-0092503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
27
|
27
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
28
|
28
287-82590-30-00
Wire Harness Assembly
|
287-82590-30-00 |
— | ||
|
29
|
29
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
29
|
29
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
30
|
30
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
31
|
31
287-82508-30-00
Main Switch Assembly
|
287-82508-30-00 |
— | ||
|
32
|
32
985-80050-10-00
Screw, Pan Head
|
985-80050-10-00 |
— | ||
| replacement | |||||
|
32
|
32
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
33
|
33
118-82141-09-00
Label, Battery
|
118-82141-09-00 |
— | ||
| replacements | |||||
|
33
|
33
40A-82141-G0-00
Label, Battery
|
40A-82141-G0-00 |
— | ||
|
33
|
33
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
