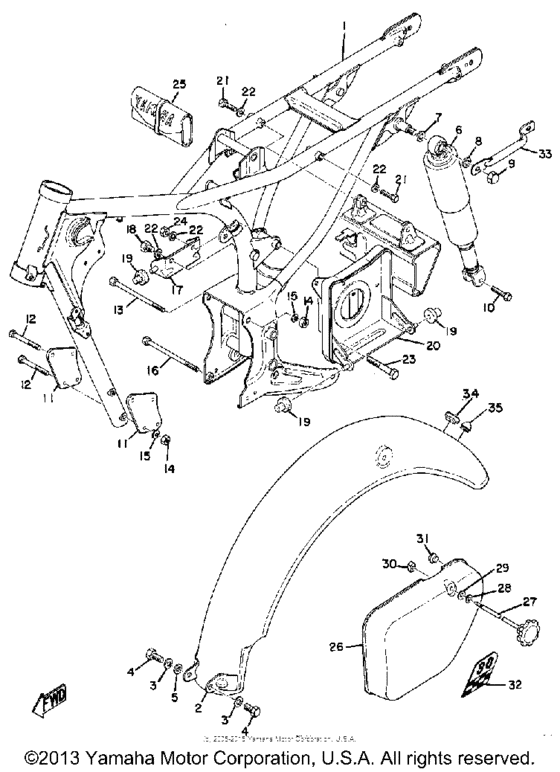

Frame Diagram Yamaha HS1
- Year
- 1971
- Sales region
- USA
- Engine Capacity
- 100
- Model
- HS1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
241-21110-00-33
Frame
|
241-21110-00-33 |
— | ||
|
1
|
1
287-22210-30-26
Shk/abs Assembly, Rear
|
287-22210-30-26 |
— | ||
|
1
|
1
241-21711-00-01
Cover, Side 1
COMP. YELLOW |
241-21711-00-01 |
— | ||
|
2
|
2
183-21610-00-93
Fender, Rear
|
183-21610-00-93 |
— | ||
|
3
|
3
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
4
|
4
97313-08012-00 Bolt (661) |
97313-08012-00 |
from US $3.12 |
||
| replacements | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
97013-08012-00 Bolt |
97013-08012-00 |
from US $3.12 |
||
|
5
|
5
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.18 |
||
|
6
|
6
287-22210-30-65
Shk/abs Assembly, Rear
|
287-22210-30-65 |
— | ||
|
7
|
7
90201-14218-00 Washer, Plate |
90201-14218-00 |
from US $1.70 |
||
| replacement | |||||
|
7
|
7
90201-15797-00 Washer, Plate (3X3) |
90201-15797-00 |
from US $1.70 |
||
|
8
|
8
90201-10437-00 Washer, Plate |
90201-10437-00 |
from US $1.65 |
||
| replacement | |||||
|
8
|
8
90201-105R9-00 Washer, Plate |
90201-105R9-00 |
from US $1.70 |
||
|
9
|
9
95303-10800-00 Nut |
95303-10800-00 |
US $3.12 |
||
| replacement | |||||
|
9
|
9
95380-10800-00 Nut |
95380-10800-00 |
from US $3.12 |
||
|
10
|
10
90106-08027-00 Bolt, Dome Head |
90106-08027-00 |
from US $5.10 |
||
|
11
|
11
183-21315-00-00
Stay, Engine 2
|
183-21315-00-00 |
— | ||
|
12
|
12
97313-08050-00 Bolt,hex |
97313-08050-00 |
from US $5.24 |
||
| replacement | |||||
|
12
|
12
97013-08050-00 Bolt, Hexagon |
97013-08050-00 |
from US $4.95 |
||
|
13
|
13
95811-08110-00 Bolt, Flange |
95811-08110-00 |
from US $4.11 |
||
| replacement | |||||
|
13
|
13
95814-08110-00 Bolt, Flange |
95814-08110-00 |
from US $4.11 |
||
|
14
|
14
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
14
|
14
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
15
|
15
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
16
|
16
95811-08135-00 Bolt, FlangeBolt,hexagon |
95811-08135-00 |
US $4.81 |
||
| replacement | |||||
|
16
|
16
95817-08135-00 Bolt, Flange |
95817-08135-00 |
US $4.73 |
||
|
17
|
17
183-21797-00-00
Hinge
|
183-21797-00-00 |
— | ||
|
18
|
18
97301-08010-00 Bolt |
97301-08010-00 |
from US $1.28 |
||
| replacements | |||||
|
18
|
18
90101-08344-00 Bolt |
90101-08344-00 |
from US $1.28 |
||
|
18
|
18
97014-08040-00 Bolt, Hexagon |
97014-08040-00 |
from US $2.35 |
||
|
19
|
19
903-85050-17-00
Bush, Spec''l Rubber
|
903-85050-17-00 |
— | ||
|
20
|
20
183-21170-01-00
Box
|
183-21170-01-00 |
— | ||
|
21
|
21
97313-08040-00 Bolt, Hexagon97322-08040 ISO |
97313-08040-00 |
US $5.29 |
||
| replacements | |||||
|
21
|
21
97014-08040-00 Bolt, Hexagon97322-08040 ISO |
97014-08040-00 |
from US $2.35 |
||
|
21
|
21
999-99999-99-00
Not Available
97322-08040 ISO |
999-99999-99-00 |
— | ||
|
22
|
22
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
23
|
23
970-13080-60-00 Bolt663 ISO |
970-13080-60-00 |
from US $5.72 |
||
|
24
|
24
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
24
|
24
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
25
|
25
1E7-W2810-00-00
Tool Kit
|
1E7-W2810-00-00 |
— | ||
|
26
|
26
241-21711-00-N7
Cover, Side 1
CALIFORNIAN6ORANGE |
241-21711-00-N7 |
— | ||
|
27
|
27
183-21714-00-00
Knob, Side Cover 1
|
183-21714-00-00 |
— | ||
|
28
|
28
241-21715-00-00
Washer, Special 1
|
241-21715-00-00 |
— | ||
|
29
|
29
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
30
|
30
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
| replacement | |||||
|
30
|
30
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
31
|
31
137-21778-00-00
Damper, Locating 1
|
137-21778-00-00 |
— | ||
|
32
|
32
241-21787-00-00
Emblem 7
|
241-21787-00-00 |
— | ||
|
33
|
33
183-21165-00-00
Handle, Standing
|
183-21165-00-00 |
— | ||
|
34
|
34
214-84154-60-00
Grommet
|
214-84154-60-00 |
— | ||
|
35
|
35
170-21746-00-00 Damper 2Damper,cleaner stopper |
170-21746-00-00 |
from US $3.68 |
||
| replacement | |||||
|
35
|
35
5A8-21639-00-00 Damper 2 |
5A8-21639-00-00 |
from US $3.68 |
||
