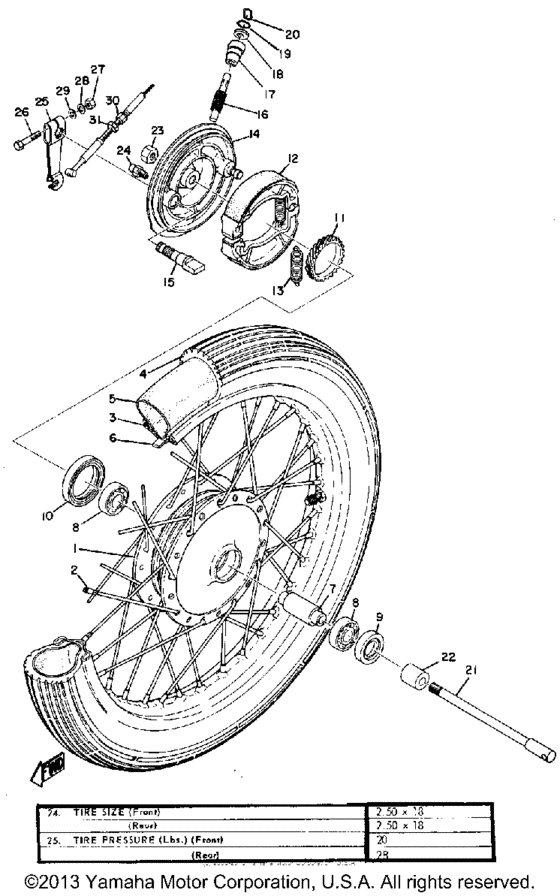

Front wheel Diagram Yamaha HS1
- Year
- 1971
- Sales region
- USA
- Engine Capacity
- 100
- Model
- HS1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
102-25111-01-38
Hub, Front
|
102-25111-01-38 |
— | ||
|
2
|
2
164-25104-00-00
Spoke Set, Front
|
164-25104-00-00 |
— | ||
|
3
|
3
94414-18006-00
Rim 1.40X18
1.40X18 |
94414-18006-00 |
— | ||
| replacement | |||||
|
3
|
3
944-14185-03-00
Rim (1.40-18)(17U)
1.40X18 |
944-14185-03-00 |
— | ||
|
4
|
4
941-25183-11-00
250X18 Yoko Y506
Y506 |
941-25183-11-00 |
— | ||
|
5
|
5
94225-18194-00 Tube2.50-18 |
94225-18194-00 |
US $38.75 |
||
|
6
|
6
94325-18043-00 Band, Rim (538)2.50-18 |
94325-18043-00 |
from US $4.39 |
||
| replacement | |||||
|
6
|
6
94340-18086-00 Band, Rim (2.50-18)2.50-18 |
94340-18086-00 |
from US $4.72 |
||
|
7
|
7
102-25117-00-00
Spacer, Bearing
|
102-25117-00-00 |
— | ||
|
8
|
8
933-06202-04-00 Bearing |
933-06202-04-00 |
from US $12.06 |
||
|
9
|
9
93102-20009-00 Oil Seal |
93102-20009-00 |
from US $6.52 |
||
|
10
|
10
931-07420-01-00
Oil Seal, Os-Type
|
931-07420-01-00 |
— | ||
|
11
|
11
164-25135-00-00
Gear, Drive
|
164-25135-00-00 |
— | ||
|
12
|
12
296-W2536-00-00 Brake Shoe Kit |
296-W2536-00-00 |
from US $23.89 |
||
| replacement | |||||
|
12
|
12
4KN-W253E-11-00 Brake Shoe Kit |
4KN-W253E-11-00 |
from US $28.08 |
||
|
13
|
13
90506-16150-00 Spring, Tension (566) |
90506-16150-00 |
from US $3.97 |
||
|
14
|
14
122-25121-02-38
Plate, Brake Shoe
|
122-25121-02-38 |
— | ||
|
15
|
15
122-25351-02-00 Camshaft |
122-25351-02-00 |
from US $36.06 |
||
|
16
|
16
164-25138-00-00
Gear, Meter
|
164-25138-00-00 |
— | ||
|
17
|
17
109-25136-00-00 Bush |
109-25136-00-00 |
from US $10.71 |
||
|
18
|
18
93104-07003-00 Oil Seal, So-Type |
93104-07003-00 |
from US $1.84 |
||
|
19
|
19
932-10141-04-00
O-Ring
|
932-10141-04-00 |
— | ||
| replacement | |||||
|
19
|
19
93210-14579-00 O-Ring (26H) |
93210-14579-00 |
from US $1.39 |
||
|
20
|
20
102-25137-00-00 Ring, Stop |
102-25137-00-00 |
from US $3.05 |
||
|
21
|
21
999-99021-88-00
Axle, Wheel (353-25181-03-00)
353-25181-03-00 |
999-99021-88-00 |
— | ||
|
22
|
22
90387-10079-00 Collar |
90387-10079-00 |
US $15.93 |
||
|
23
|
23
95303-10600-00 Nut |
95303-10600-00 |
from US $1.56 |
||
| replacement | |||||
|
23
|
23
95314-10600-00 Nut |
95314-10600-00 |
from US $1.66 |
||
|
24
|
24
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $3.04 |
||
|
25
|
25
109-25155-00-00 Lever, Camshaft 1 |
109-25155-00-00 |
US $49.32 |
||
|
26
|
26
97313-06030-00 Bolt |
97313-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
26
|
26
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
27
|
27
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
28
|
28
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
29
|
29
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
30
|
30
90123-06011-00 BoltBolt (109-26345-00) |
90123-06011-00 |
from US $8.08 |
||
|
31
|
31
90179-06143-00 Nut, Spec''l Shape |
90179-06143-00 |
from US $3.26 |
||
