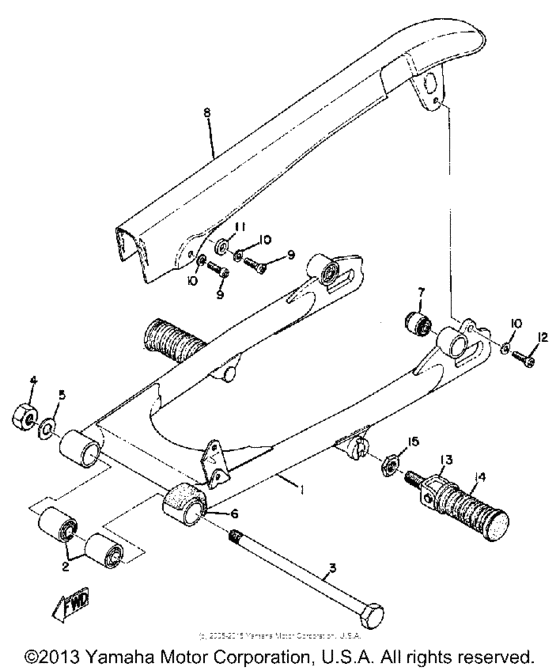

Rear arm & chain case Diagram Yamaha HS1
- Year
- 1971
- Sales region
- USA
- Engine Capacity
- 100
- Model
- HS1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
241-22110-00-33
Rear Arm
|
241-22110-00-33 |
— | ||
|
2
|
2
102-22123-00-00 Bush 1 |
102-22123-00-00 |
from US $10.73 |
||
|
3
|
3
241-22141-00-00 Shaft, Pivot |
241-22141-00-00 |
US $26.44 |
||
|
4
|
4
95303-10600-00 Nut |
95303-10600-00 |
from US $1.56 |
||
| replacement | |||||
|
4
|
4
95314-10600-00 Nut |
95314-10600-00 |
from US $1.66 |
||
|
5
|
5
92990-10200-00 Washer, Plain |
92990-10200-00 |
from US $1.18 |
||
|
6
|
6
183-22151-00-00 Seal, Guard |
183-22151-00-00 |
from US $7.37 |
||
|
7
|
7
164-22216-00-00 Bushing, Rear Cushion |
164-22216-00-00 |
from US $8.60 |
||
|
8
|
8
183-22311-01-93
Case, Chain
|
183-22311-01-93 |
— | ||
|
9
|
9
985-80060-10-00 Screw, Pan Head (92503-06010-0092503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
10
|
10
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
11
|
11
90201-06M08-00 Washer, Plate |
90201-06M08-00 |
from US $1.56 |
||
|
12
|
12
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
12
|
12
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
13
|
13
120-27430-02-00 Rr Footrest Assembly 1ISO |
120-27430-02-00 |
from US $31.39 |
||
|
14
|
14
120-27433-00-00 Cover, Rear Footrest |
120-27433-00-00 |
from US $2.70 |
||
|
15
|
15
95301-12700-00 Nut95302-12700-00 ISO |
95301-12700-00 |
from US $2.13 |
||
| replacement | |||||
|
15
|
15
95317-12700-00 Nut, Hexagon Small95302-12700-00 ISO |
95317-12700-00 |
from US $2.36 |
||
