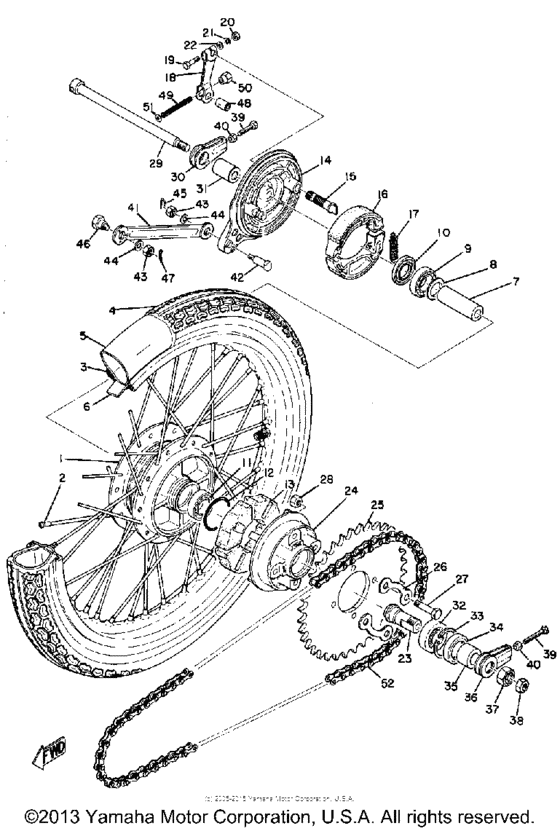

Rear wheel Diagram Yamaha HS1
- Year
- 1971
- Sales region
- USA
- Engine Capacity
- 100
- Model
- HS1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
94680-52001-00 Joint, Chain(Did 420M)420M |
94680-52001-00 |
from US $2.98 |
||
|
1
|
1
132-25311-00-38
Hub, Rear
|
132-25311-00-38 |
— | ||
|
2
|
2
164-25304-00-00 Spoke Set, Rear |
164-25304-00-00 |
US $64.80 |
||
| replacement | |||||
|
2
|
2
164-25304-01-00 Spoke Set, Rear |
164-25304-01-00 |
US $64.80 |
||
|
3
|
3
944-14180-07-00
Rim (1.40-18)
1.40-18 |
944-14180-07-00 |
— | ||
| replacement | |||||
|
3
|
3
944-14185-45-00 Rim (1.40-18), Union Cycle1.40-18 |
944-14185-45-00 |
from US $89.94 |
||
|
4
|
4
941-25183-51-00
Tire Rear (164)
164 |
941-25183-51-00 |
— | ||
|
5
|
5
94225-18194-00 Tube2.50-18 |
94225-18194-00 |
US $38.75 |
||
|
6
|
6
94325-18043-00 Band, Rim (538)2.50-18 |
94325-18043-00 |
from US $4.39 |
||
| replacement | |||||
|
6
|
6
94340-18086-00 Band, Rim (2.50-18)2.50-18 |
94340-18086-00 |
from US $4.72 |
||
|
7
|
7
90560-12145-00 Spacer |
90560-12145-00 |
from US $8.22 |
||
|
8
|
8
109-25315-00-00 Flange, Spacer |
109-25315-00-00 |
from US $2.55 |
||
|
9
|
9
93306-30101-00 Bearing |
93306-30101-00 |
from US $9.57 |
||
|
10
|
10
93104-21016-00 Oil Seal, Sd-Type |
93104-21016-00 |
from US $9.35 |
||
|
11
|
11
93306-30103-00 Bearing |
93306-30103-00 |
from US $12.75 |
||
| replacement | |||||
|
11
|
11
933-06301-02-00 Bearing |
933-06301-02-00 |
from US $12.75 |
||
|
12
|
12
93210-41041-00 O-Ring |
93210-41041-00 |
from US $1.81 |
||
|
13
|
13
304-25364-01-00 Damper, Clutch |
304-25364-01-00 |
from US $5.40 |
||
|
14
|
14
339-25320-10-00 Brake Shoe Plt Assembly |
339-25320-10-00 |
US $94.64 |
||
|
15
|
15
122-25351-02-00 Camshaft |
122-25351-02-00 |
from US $36.06 |
||
|
16
|
16
296-W2536-00-00 Brake Shoe Kit |
296-W2536-00-00 |
from US $23.89 |
||
| replacement | |||||
|
16
|
16
4KN-W253E-11-00 Brake Shoe Kit |
4KN-W253E-11-00 |
from US $28.08 |
||
|
17
|
17
90506-16150-00 Spring, Tension (566) |
90506-16150-00 |
from US $3.97 |
||
|
18
|
18
122-25355-00-00 Lever, Camshaft |
122-25355-00-00 |
from US $24.65 |
||
|
19
|
19
97313-06030-00 Bolt |
97313-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
19
|
19
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
20
|
20
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
21
|
21
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
22
|
22
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
23
|
23
167-25387-00-00 Axle, Sprocket |
167-25387-00-00 |
from US $36.61 |
||
|
24
|
24
296-25366-01-98 Clutch, Hub |
296-25366-01-98 |
from US $51.88 |
||
| replacement | |||||
|
24
|
24
296-25366-01-33 Clutch, Hub |
296-25366-01-33 |
from US $74.86 |
||
|
25
|
25
122-25440-11-33 Sprocket, Drivn 40T40T |
122-25440-11-33 |
US $53.33 |
||
|
26
|
26
102-25412-00-00 Washer, Lock |
102-25412-00-00 |
from US $2.55 |
||
| replacements | |||||
|
26
|
26
4AW-25412-00-00 Washer |
4AW-25412-00-00 |
from US $2.55 |
||
|
26
|
26
3M5-25412-00-00 Washer, Lock |
3M5-25412-00-00 |
from US $4.39 |
||
|
27
|
27
90101-08672-00 Bolt |
90101-08672-00 |
from US $1.70 |
||
|
28
|
28
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
28
|
28
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
29
|
29
241-25381-01-00
Axle, Wheel
|
241-25381-01-00 |
— | ||
|
30
|
30
241-25389-10-00 Puller, Chain 2 |
241-25389-10-00 |
from US $33.15 |
||
|
31
|
31
90387-12102-00 Collar |
90387-12102-00 |
from US $11.33 |
||
|
32
|
32
93306-00406-00 Bearing |
93306-00406-00 |
from US $15.44 |
||
| replacement | |||||
|
32
|
32
93306-00438-00 Bearing |
93306-00438-00 |
from US $14.48 |
||
|
33
|
33
990-09425-00-00 Circlip |
990-09425-00-00 |
from US $1.66 |
||
|
34
|
34
93106-30004-00 Oil Seal |
93106-30004-00 |
from US $7.21 |
||
|
35
|
35
90387-18144-00 Collar |
90387-18144-00 |
from US $12.33 |
||
|
36
|
36
241-25388-00-00 Puller, Chain 1 |
241-25388-00-00 |
from US $33.15 |
||
|
37
|
37
90170-18165-00 Nut |
90170-18165-00 |
from US $7.65 |
||
|
38
|
38
92990-10200-00 Washer, Plain |
92990-10200-00 |
from US $1.18 |
||
|
39
|
39
90101-06016-00 Bolt |
90101-06016-00 |
from US $7.37 |
||
|
40
|
40
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
| replacement | |||||
|
40
|
40
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
41
|
41
27L-25371-00-00 Bar, Tension |
27L-25371-00-00 |
from US $33.35 |
||
|
42
|
42
90109-08183-00 Bolt |
90109-08183-00 |
from US $5.67 |
||
| replacement | |||||
|
42
|
42
90109-08816-00 Bolt |
90109-08816-00 |
US $2.55 |
||
|
43
|
43
953-03087-00-00
Nut
|
953-03087-00-00 |
— | ||
| replacement | |||||
|
43
|
43
95380-08700-00 Nut |
95380-08700-00 |
from US $1.52 |
||
|
44
|
44
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
45
|
45
90468-10050-00 Clip (156-83525-00) |
90468-10050-00 |
from US $1.84 |
||
|
46
|
46
90109-08368-00 Bolt |
90109-08368-00 |
from US $5.67 |
||
|
47
|
47
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
47
|
47
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
48
|
48
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.66 |
||
|
49
|
49
905-01102-45-00 Spring, Compression |
905-01102-45-00 |
from US $1.81 |
||
|
50
|
50
90179-06411-00 Nut |
90179-06411-00 |
from US $1.52 |
||
|
51
|
51
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
52
|
52
945-80521-06-00
Chain(D.i.d.420M 106L)
94504-20106 |
945-80521-06-00 |
— | ||
