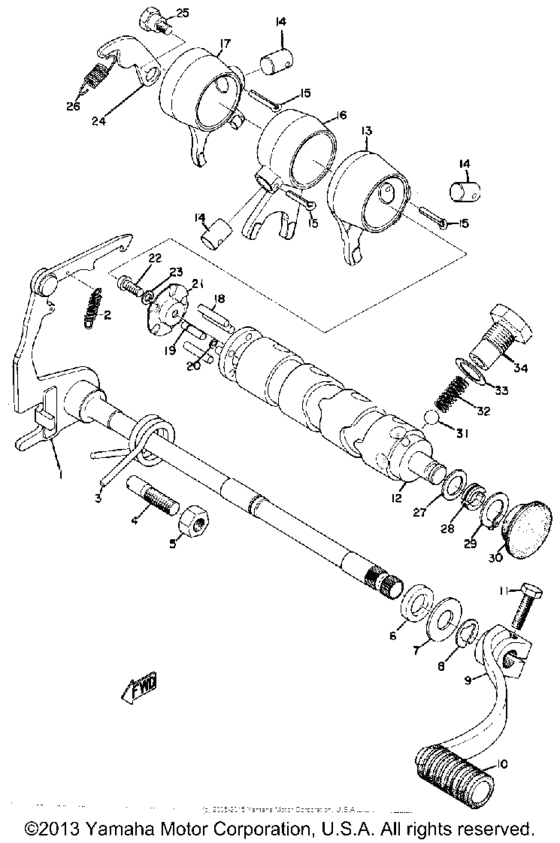

Shift shaft Diagram Yamaha HS1
- Year
- 1971
- Sales region
- USA
- Engine Capacity
- 100
- Model
- HS1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
183-18101-01-00
Shift Shaft Assembly.1
|
183-18101-01-00 |
— | ||
|
1
|
1
241-18500-00-00
Shifter Assembly
|
241-18500-00-00 |
— | ||
|
2
|
2
90506-09009-00 Spring, Tension |
90506-09009-00 |
from US $2.55 |
||
|
3
|
3
90508-32207-00 Spring, Torsion (132-18124-00)132-18124-00 |
90508-32207-00 |
from US $8.50 |
||
|
4
|
4
910-49080-14-00
New Genuine Part
IN PRICE BOOK 132- |
910-49080-14-00 |
— | ||
|
5
|
5
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
5
|
5
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
6
|
6
931-02123-21-00 Oil Seal12-22-5 HS |
931-02123-21-00 |
from US $4.86 |
||
|
7
|
7
90201-12575-00 Washer, Plate (353) |
90201-12575-00 |
from US $1.70 |
||
|
8
|
8
99006-10600-00 Circlip |
99006-10600-00 |
from US $1.39 |
||
|
9
|
9
241-18111-00-93
Pedal, Shift
|
241-18111-00-93 |
— | ||
|
10
|
10
132-18113-01-00 Cover, Shift Pedal |
132-18113-01-00 |
from US $2.02 |
||
|
11
|
11
97023-06020-00 Bolt |
97023-06020-00 |
from US $0.93 |
||
| replacement | |||||
|
11
|
11
970-24060-20-00 Bolt(3Dm) |
970-24060-20-00 |
from US $0.91 |
||
|
12
|
12
183-18541-02-00
Cam, Shift
|
183-18541-02-00 |
— | ||
|
13
|
13
183-18511-00-00
Fork, Shift 1
|
183-18511-00-00 |
— | ||
|
14
|
14
902-50100-20-00
Pin, Straight
|
902-50100-20-00 |
— | ||
|
15
|
15
914-01250-20-00
Pin. Cotter
|
914-01250-20-00 |
— | ||
| replacement | |||||
|
15
|
15
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.52 |
||
|
16
|
16
183-18512-00-00
Fork, Shift 2
|
183-18512-00-00 |
— | ||
|
17
|
17
183-18513-00-00
Fork, Shift 3
|
183-18513-00-00 |
— | ||
|
18
|
18
93604-22050-00 Pin, Dowel |
93604-22050-00 |
from US $1.84 |
||
|
19
|
19
90249-04039-00
Pin, Spec''l Shape (174-18544
174-18544 |
90249-04039-00 |
— | ||
|
20
|
20
93430-03014-00
Circlip, E-Type
|
93430-03014-00 |
— | ||
|
21
|
21
164-18561-00-00 Plate, Side 1 |
164-18561-00-00 |
from US $3.26 |
||
|
22
|
22
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $2.13 |
||
|
23
|
23
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
24
|
24
132-18140-01-00 Stopper Lever Assembly |
132-18140-01-00 |
from US $14.17 |
||
|
25
|
25
90109-06001-00 Bolt 132181770000 |
90109-06001-00 |
from US $2.13 |
||
| replacement | |||||
|
25
|
25
901-09062-39-00 Bolt |
901-09062-39-00 |
from US $1.47 |
||
|
26
|
26
90506-09112-00 Spring, Tension |
90506-09112-00 |
from US $2.55 |
||
|
27
|
27
90201-12166-00 Washer, Plate |
90201-12166-00 |
from US $1.70 |
||
