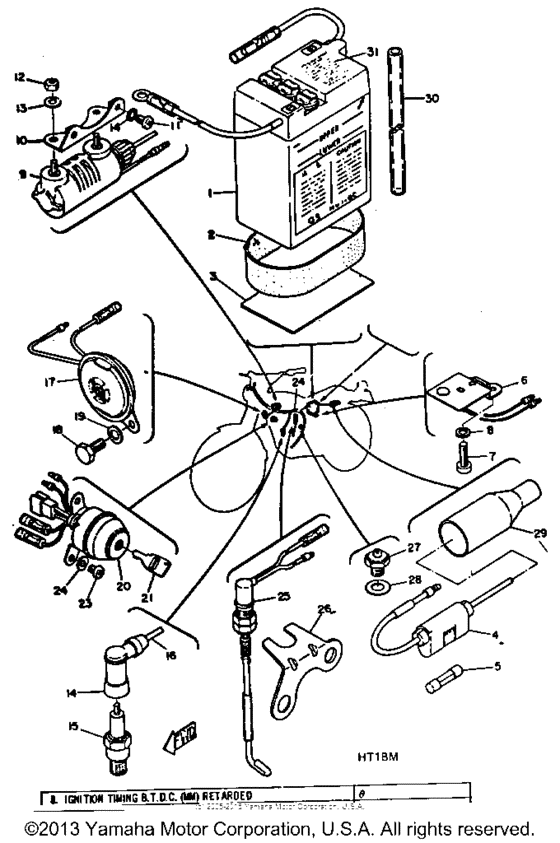

Electrical Diagram Yamaha HT1
- Year
- 1971
- Sales region
- USA
- Engine Capacity
- 100
- Model
- HT1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
BTG-6N22A-30-00
6N2-2A-3 Gs Battery
GS BATTERY |
BTG-6N22A-30-00 |
— | ||
| replacement | |||||
|
1
|
1
6N2-2A300-00-00
BULK PREMIER II CABL
GS BATTERY |
6N2-2A300-00-00 |
— | ||
|
1
|
1
104-82111-10-00
Cap, Battery
|
104-82111-10-00 |
— | ||
|
2
|
2
214-82124-00-00 Band, Battery |
214-82124-00-00 |
US $9.23 |
||
|
3
|
3
214-82122-00-00
Seat, Battery
|
214-82122-00-00 |
— | ||
|
4
|
4
55K-82150-01-00 Fuse H0Lder Assy |
55K-82150-01-00 |
from US $11.22 |
||
|
5
|
5
116-82151-00-00
Fuse (12V-10A)
12V-10A |
116-82151-00-00 |
— | ||
| replacement | |||||
|
5
|
5
1A0-82151-00-00 Fuse (12V-10A)12V-10A |
1A0-82151-00-00 |
from US $1.82 |
||
|
6
|
6
315-81970-61-00
Rectifier Assembly
|
315-81970-61-00 |
— | ||
|
7
|
7
985-80050-16-00
Screw, Pan Head
|
985-80050-16-00 |
— | ||
| replacement | |||||
|
7
|
7
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
US $2.84 |
||
|
8
|
8
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $0.97 |
||
|
9
|
9
248-82310-11-00
Ignition Coil Assembly
|
248-82310-11-00 |
— | ||
|
10
|
10
248-82316-00-00
Bracket, Ign Coil
|
248-82316-00-00 |
— | ||
|
11
|
11
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
11
|
11
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.50 |
||
|
12
|
12
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $0.90 |
||
|
13
|
13
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.90 |
||
|
14
|
14
56J-82370-00-00 Plug Cap Assy |
56J-82370-00-00 |
from US $16.16 |
||
|
15
|
15
NGK-B8HS0-00-00 B8Hs Ngk 10Pk Screw10PK SCREW |
NGK-B8HS0-00-00 |
US $4.99 |
||
| replacements | |||||
|
15
|
15
B8H-S0000-00-00 element10PK SCREW |
B8H-S0000-00-00 |
US $4.99 |
||
|
15
|
15
BR8-HS000-00-00 BR8HS NGK SCREW TOP PLUG 4PK (4-PACK)10PK SCREW |
BR8-HS000-00-00 |
US $23.40 |
||
|
15
|
15
947-01000-16-00
Spark Plug B9En
B9EN |
947-01000-16-00 |
— | ||
|
16
|
16
137-82341-01-00 Cord, Hight Tension 1 |
137-82341-01-00 |
US $19.13 |
||
|
17
|
17
276-83371-10-00
Horn
|
276-83371-10-00 |
— | ||
|
18
|
18
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
18
|
18
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.94 |
||
|
19
|
19
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $0.90 |
||
|
20
|
20
233-82508-20-00
Main Switch Assembly
|
233-82508-20-00 |
— | ||
|
21
|
21
214-82511-00-00
New Genuine Part
IN PRICE BOOK |
214-82511-00-00 |
— | ||
|
22
|
22
985-80050-10-00
Screw, Pan Head
|
985-80050-10-00 |
— | ||
| replacement | |||||
|
22
|
22
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $0.90 |
||
|
23
|
23
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $0.97 |
||
|
24
|
24
277-82590-20-00
Wire Harness Assembly
|
277-82590-20-00 |
— | ||
|
25
|
25
248-82530-02-00
Stop Switch Assembly
|
248-82530-02-00 |
— | ||
|
26
|
26
248-82539-00-00
Stay, Stop Switch
|
248-82539-00-00 |
— | ||
|
27
|
27
136-82540-00-00 Reverse Switch Assembly |
136-82540-00-00 |
from US $18.55 |
||
| replacement | |||||
|
27
|
27
136-82540-03-00 Reverse Switch Assembly |
136-82540-03-00 |
from US $18.55 |
||
|
28
|
28
37R-82543-00-00 Washer, Plate |
37R-82543-00-00 |
from US $0.80 |
||
| replacement | |||||
|
28
|
28
90201-12790-00 Washer, Plate |
90201-12790-00 |
from US $1.13 |
||
|
29
|
29
214-82599-00-00
Cover, Connecter
|
214-82599-00-00 |
— | ||
|
30
|
30
170-82112-00-00
Pipe, Breather
|
170-82112-00-00 |
— | ||
|
31
|
31
118-82141-09-00
Label, Battery
|
118-82141-09-00 |
— | ||
| replacements | |||||
|
31
|
31
40A-82141-G0-00
Label, Battery
|
40A-82141-G0-00 |
— | ||
|
31
|
31
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
