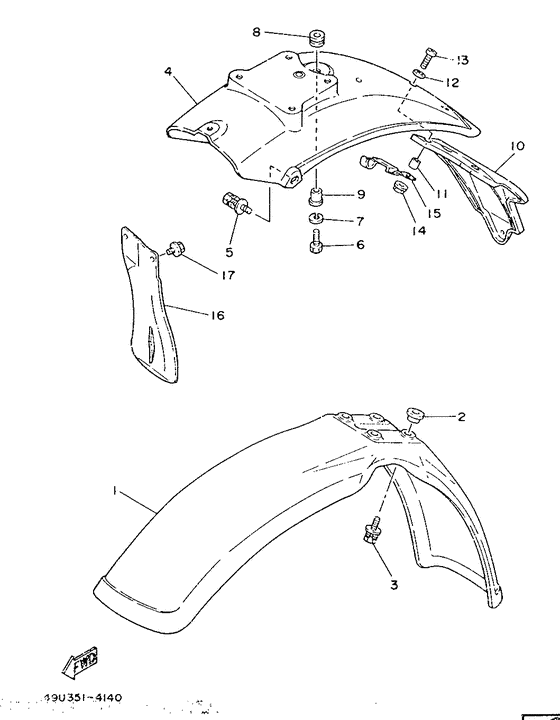

Fender Diagram Yamaha IT
- Year
- 1986
- Colour
- Sky Blue (SYB; 00G8)
- Model code
- 1VH
- Sales region
- France (999)
- Engine Capacity
- 200
- Model
- IT200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3R9-21511-10-00 Fender, FrontSky blue |
3R9-21511-10-00 |
from US $44.01 |
||
| replacement | |||||
|
01
|
01
3R9-21511-11-00 Fender, FrontSky blue |
3R9-21511-11-00 |
from US $44.42 |
||
|
02
|
02
903-87066-81-00
Collar
|
903-87066-81-00 |
— | ||
| replacement | |||||
|
02
|
02
90387-06857-00 Collar |
90387-06857-00 |
from US $1.28 |
||
|
03
|
03
90119-06063-00 Bolt, With Washer (10V) |
90119-06063-00 |
from US $1.65 |
||
|
04
|
04
5Y0-21610-00-00
Rear Fender Comp
Sky blue |
5Y0-21610-00-00 |
— | ||
| replacement | |||||
|
04
|
04
999-99999-99-00
Not Available
Sky blue |
999-99999-99-00 |
— | ||
|
05
|
05
90119-06085-00 Bolt, With Washer |
90119-06085-00 |
from US $2.09 |
||
| replacements | |||||
|
05
|
05
97017-06014-00 Bolt(8Cp) |
97017-06014-00 |
from US $1.80 |
||
|
05
|
05
90119-06123-00 Bolt, With Washer(1Jk) |
90119-06123-00 |
from US $2.09 |
||
|
06
|
06
97301-06025-00 Bolt |
97301-06025-00 |
from US $1.43 |
||
| replacement | |||||
|
06
|
06
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.43 |
||
|
07
|
07
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
07
|
07
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.90 |
||
|
08
|
08
90480-14198-00 Grommet |
90480-14198-00 |
from US $4.04 |
||
|
09
|
09
903-87063-88-00
Collar
|
903-87063-88-00 |
— | ||
| replacement | |||||
|
09
|
09
90387-06158-00 Collar |
90387-06158-00 |
from US $1.50 |
||
|
10
|
10
5Y0-21685-00-00
Bracket, License
|
5Y0-21685-00-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
903-87073-91-00 Collar |
903-87073-91-00 |
from US $1.80 |
||
|
12
|
12
90201-061E8-00 Washer, Plate |
90201-061E8-00 |
from US $0.97 |
||
| replacement | |||||
|
12
|
12
90201-062A8-00 Washer, Plate |
90201-062A8-00 |
from US $1.80 |
||
|
13
|
13
92506-06025-00 Screw |
92506-06025-00 |
from US $1.20 |
||
| replacement | |||||
|
13
|
13
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.20 |
||
|
14
|
14
957-01065-00-00
Nut, Flange(34M)
|
957-01065-00-00 |
— | ||
| replacement | |||||
|
14
|
14
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $0.90 |
||
|
15
|
15
5Y0-21637-00-00
Clamp, Wire
|
5Y0-21637-00-00 |
— | ||
|
16
|
16
43G-21642-00-00
Guard, Flap
|
43G-21642-00-00 |
— | ||
|
17
|
17
90119-06042-00 Bolt, With Washer |
90119-06042-00 |
from US $1.65 |
||
| replacements | |||||
|
17
|
17
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.05 |
||
|
17
|
17
90119-06117-00 Bolt, With Washer |
90119-06117-00 |
from US $1.65 |
||
