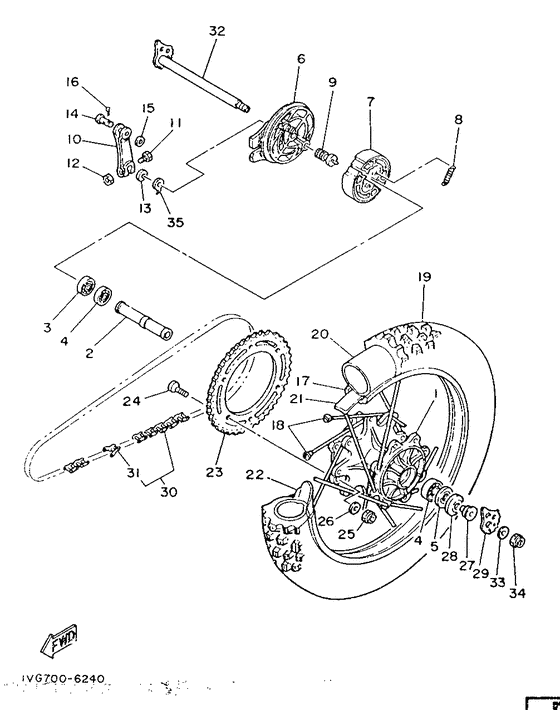

Rear wheel Diagram Yamaha IT
- Year
- 1986
- Colour
- Sky Blue (SYB; 00G8)
- Model code
- 1VH
- Sales region
- France (999)
- Engine Capacity
- 200
- Model
- IT200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
55Y-25311-00-98
Hub, Rear
Low gloss black |
55Y-25311-00-98 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
Low gloss black |
999-99999-99-00 |
— | ||
|
02
|
02
90560-17231-00
Spacer
|
90560-17231-00 |
— | ||
|
03
|
03
93306-20310-00 Bearing |
93306-20310-00 |
from US $14.21 |
||
|
04
|
04
933-06203-16-00
Bearing
|
933-06203-16-00 |
— | ||
| replacement | |||||
|
04
|
04
93306-20310-00 Bearing |
93306-20310-00 |
from US $14.21 |
||
|
05
|
05
93106-25022-00 Oil Seal, Dd-Type |
93106-25022-00 |
from US $5.58 |
||
|
06
|
06
43G-25321-00-98
Plate, Brake Shoe
Low gloss black |
43G-25321-00-98 |
— | ||
| replacement | |||||
|
06
|
06
999-99999-99-00
Not Available
Low gloss black |
999-99999-99-00 |
— | ||
|
07
|
07
39W-25330-00-00 Brake Shoe Comp |
39W-25330-00-00 |
US $37.58 |
||
| replacement | |||||
|
07
|
07
39W-W253E-10-00 Brake Shoe Kit |
39W-W253E-10-00 |
from US $37.58 |
||
|
08
|
08
90506-17238-00
Spring, Tension
|
90506-17238-00 |
— | ||
|
09
|
09
49T-25351-00-00
Camshaft
|
49T-25351-00-00 |
— | ||
|
10
|
10
43G-25355-00-00
Lever, Camshaft
|
43G-25355-00-00 |
— | ||
|
11
|
11
90101-06278-00 Bolt |
90101-06278-00 |
from US $1.45 |
||
|
12
|
12
95301-06600-00 Nut, Hexagon |
95301-06600-00 |
from US $0.90 |
||
| replacement | |||||
|
12
|
12
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $0.90 |
||
|
13
|
13
148-25359-00-00 Seal, Camshaft |
148-25359-00-00 |
from US $2.54 |
||
|
14
|
14
3R6-27237-00-00
Pin, Clevis
|
3R6-27237-00-00 |
— | ||
|
15
|
15
90201-12631-00 Washer, Plate (583) |
90201-12631-00 |
from US $1.50 |
||
|
16
|
16
91401-25022-00 Pin, Cotter |
91401-25022-00 |
from US $1.40 |
||
| replacement | |||||
|
16
|
16
91490-25030-00 Pin. Cotter |
91490-25030-00 |
from US $1.50 |
||
|
17
|
17
94421-18440-00
Rim
|
94421-18440-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
55Y-25304-00-00
Spoke Set, Rear
|
55Y-25304-00-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
94146-182E2-00
Tire (4.60-18)
Bridgestone |
94146-182E2-00 |
— | ||
| replacement | |||||
|
19
|
19
941-12182-X1-00 Tire(120/80 18 Mc62P Tw30 )Bridgestone |
941-12182-X1-00 |
US $461.36 |
||
|
20
|
20
94240-18098-00 Tube (110-140/80-100-18 M/c)Dun lop |
94240-18098-00 |
US $28.67 |
||
| replacement | |||||
|
20
|
20
94212-18188-00 Tube (110-140/80-100-18 M/c)Tube Dun lop |
94212-18188-00 |
US $28.67 |
||
|
21
|
21
94340-18086-00 Band, Rim (2.50-18)Bridgestone |
94340-18086-00 |
from US $4.04 |
||
|
22
|
22
39W-25394-00-00 Spacer, Bead |
39W-25394-00-00 |
US $79.61 |
||
|
23
|
23
26A-25442-50-33 Sprocket, DrivenSprocket, driven (42t) Ur yamaha black |
26A-25442-50-33 |
from US $65.83 |
||
| replacement | |||||
|
23
|
23
26A-25442-51-00 SPROCKET, DRIVENUr yamaha black |
26A-25442-51-00 |
from US $58.09 |
||
|
23
|
23
26A-25444-50-33 Sprocket, DrivenSprocket, driven (44t) Std yamaha black |
26A-25444-50-33 |
US $50.29 |
||
| replacement | |||||
|
23
|
23
26A-25444-51-00 Sprocket, Driven (44T)Std yamaha black |
26A-25444-51-00 |
US $47.50 |
||
|
23
|
23
26A-25456-50-33
Sprocket, Driven
Ur yamaha black |
26A-25456-50-33 |
— | ||
|
24
|
24
90109-08706-00 Bolt |
90109-08706-00 |
from US $2.39 |
||
| replacement | |||||
|
24
|
24
90109-081G2-00 Bolt(1Tj) |
90109-081G2-00 |
from US $2.39 |
||
|
25
|
25
95611-08100-00 Nut (2H1) |
95611-08100-00 |
from US $3.14 |
||
| replacement | |||||
|
25
|
25
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.14 |
||
|
26
|
26
90201081A60
Washer
|
90201081A60 |
— | ||
|
27
|
27
90387-175K4-00
Collar
|
90387-175K4-00 |
— | ||
|
28
|
28
24X-25367-00-00 Cover, Hub Dust |
24X-25367-00-00 |
from US $4.04 |
||
|
29
|
29
1M1-25388-01-00
Puller, Chain 1
|
1M1-25388-01-00 |
— | ||
|
30
|
30
94585-20106-00 ChainChain (did520ds-106l) |
94585-20106-00 |
US $59.42 |
||
|
31
|
31
94685-20001-00 Joint, Chain (Did 520Dm-Rj) |
94685-20001-00 |
from US $3.28 |
||
| replacements | |||||
|
31
|
31
94681-68001-00 Joint, Chain (Did 520Dm-Rj) |
94681-68001-00 |
from US $3.02 |
||
|
31
|
31
CHN-QR520-MS-TR
Chain 520
|
CHN-QR520-MS-TR |
— | ||
|
32
|
32
43G-25381-00-00
Axle, Wheel
|
43G-25381-00-00 |
— | ||
|
33
|
33
902-01160-F6-00 Washer, Plate |
902-01160-F6-00 |
from US $6.73 |
||
|
34
|
34
90185-16103-00
Nut, Self-Locking
|
90185-16103-00 |
— | ||
|
35
|
35
3Y6-2533A-01-00 Plate, Indicator |
3Y6-2533A-01-00 |
from US $2.39 |
||
| replacement | |||||
|
35
|
35
5AD-F533A-00-00
Plate, Indicator
|
5AD-F533A-00-00 |
— | ||
