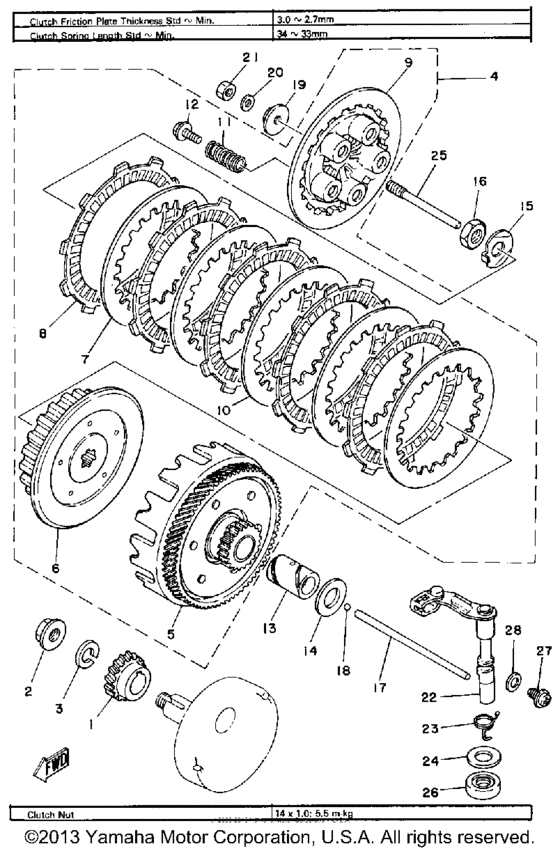

Clutch Diagram Yamaha IT
- Year
- 1980
- Sales region
- USA
- Engine Capacity
- 125
- Model
- IT125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1W1-16111-00-00
Gear, Pri Drive
|
1W1-16111-00-00 |
— | ||
|
2
|
2
901-79122-44-00
Nut
|
901-79122-44-00 |
— | ||
| replacement | |||||
|
2
|
2
90179-12659-00 Nut |
90179-12659-00 |
from US $1.70 |
||
|
3
|
3
90204-12007-00 Washer, Spring |
90204-12007-00 |
from US $3.26 |
||
|
4
|
4
2X3-16300-00-00
Clutch Assembly
|
2X3-16300-00-00 |
— | ||
|
5
|
5
1W1-16150-01-00
Primary Driven Gear Comp. (71
|
1W1-16150-01-00 |
— | ||
|
6
|
6
1G8-16371-00-00
Boss, Clutch
|
1G8-16371-00-00 |
— | ||
|
7
|
7
137-16325-00-00
Plate, Clutch 2
|
137-16325-00-00 |
— | ||
|
8
|
8
537-16321-00-00 Plate, Friction |
537-16321-00-00 |
from US $9.26 |
||
|
9
|
9
1W1-16351-00-00
Plate, Pressure 1
|
1W1-16351-00-00 |
— | ||
|
10
|
10
137-16325-70-00 Plate, Clutch 2 |
137-16325-70-00 |
from US $17.78 |
||
| replacement | |||||
|
10
|
10
137-16325-80-00 Plate, Clutch 2 |
137-16325-80-00 |
US $16.85 |
||
|
11
|
11
90501-20122-00 Spring, Compression |
90501-20122-00 |
from US $3.83 |
||
|
12
|
12
90159-05011-00 Screw, With Washer |
90159-05011-00 |
from US $1.70 |
||
|
13
|
13
90560-17147-00 Spacer |
90560-17147-00 |
from US $18.42 |
||
|
14
|
14
90201-174E1-00 Washer, Plate (4V2) |
90201-174E1-00 |
from US $9.45 |
||
|
15
|
15
90215-14204-00 Washer, Lock (2K6) |
90215-14204-00 |
from US $3.97 |
||
|
16
|
16
90170-14171-00 Nut |
90170-14171-00 |
from US $2.32 |
||
|
17
|
17
2X3-16357-00-00 Rod, Push 2 |
2X3-16357-00-00 |
from US $10.91 |
||
|
18
|
18
93503-16010-00 Ball 3-16 |
93503-16010-00 |
from US $1.35 |
||
| replacement | |||||
|
18
|
18
93503-16003-00 Ball |
93503-16003-00 |
from US $1.34 |
||
|
19
|
19
30X-16358-00-00
Plate, Push
|
30X-16358-00-00 |
— | ||
| replacement | |||||
|
19
|
19
1W1-16358-01-00 Plate, Push |
1W1-16358-01-00 |
from US $10.91 |
||
|
20
|
20
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
21
|
21
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
22
|
22
2X3-16380-01-00
Push Lever Assembly
|
2X3-16380-01-00 |
— | ||
|
23
|
23
90508-20345-00 Spring, Torsion |
90508-20345-00 |
from US $5.81 |
||
|
24
|
24
90201-14217-00 Washer, Plate |
90201-14217-00 |
from US $1.70 |
||
|
25
|
25
1W1-16356-02-00 Rod, Push 1 |
1W1-16356-02-00 |
from US $14.03 |
||
|
26
|
26
93104-14059-00 Oil Seal |
93104-14059-00 |
from US $4.30 |
||
|
27
|
27
90149-08108-00 Screw, Special Shape |
90149-08108-00 |
from US $7.79 |
||
|
28
|
28
904-30080-69-00
Gasket
|
904-30080-69-00 |
— | ||
| replacement | |||||
|
28
|
28
90430-08204-00 Gasket(3Aj) |
90430-08204-00 |
from US $1.34 |
||
