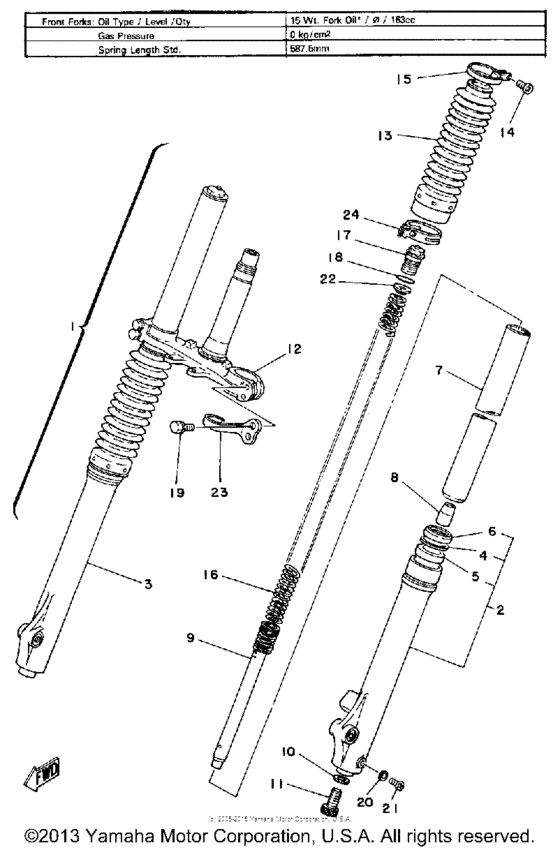

Front fork Diagram Yamaha IT
- Year
- 1980
- Sales region
- USA
- Engine Capacity
- 125
- Model
- IT125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3R9-23101-00-00
Front Fork Assembly
|
3R9-23101-00-00 |
— | ||
|
2
|
2
3R9-23126-00-00
Tube, Outer 1
|
3R9-23126-00-00 |
— | ||
|
3
|
3
3R9-23136-00-00
Tube, Outer 2
|
3R9-23136-00-00 |
— | ||
|
4
|
4
15E-23153-00-00 Ring, Snap |
15E-23153-00-00 |
from US $7.37 |
||
|
5
|
5
2K5-23145-00-00 Oil Seal |
2K5-23145-00-00 |
from US $26.92 |
||
|
6
|
6
3Y6-23144-00-00 Seal, Dust (2K5-23144-00)2K5-23144-00 |
3Y6-23144-00-00 |
from US $5.96 |
||
|
7
|
7
2K5-23110-00-00
Inner Tube 1
|
2K5-23110-00-00 |
— | ||
|
8
|
8
2K5-23173-00-00 Spindle, Taper |
2K5-23173-00-00 |
from US $21.68 |
||
|
9
|
9
2K5-23170-00-00
Cylinder, Frtfrk
|
2K5-23170-00-00 |
— | ||
|
10
|
10
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $3.54 |
||
|
11
|
11
278-23181-50-00
Bolt, Hexagon Socket Head
|
278-23181-50-00 |
— | ||
| replacement | |||||
|
11
|
11
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $4.82 |
||
|
12
|
12
3R9-23340-00-33
Under Bracket
|
3R9-23340-00-33 |
— | ||
|
13
|
13
2K5-23191-M0-00
Boot, Front Fork
|
2K5-23191-M0-00 |
— | ||
|
14
|
14
509-23194-L0-00 Screw, Boot Band |
509-23194-L0-00 |
from US $2.98 |
||
|
15
|
15
2K5-23192-00-00 Band |
2K5-23192-00-00 |
from US $13.18 |
||
|
16
|
16
3R9-23141-00-00
Spring, Front Fork
|
3R9-23141-00-00 |
— | ||
|
17
|
17
2K5-23111-00-00
Bolt, Cap
|
2K5-23111-00-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
146-23114-00-00 Packing |
146-23114-00-00 |
from US $13.74 |
||
|
19
|
19
5X6-23181-L0-00
Bolt, Hexagon Socket Head
|
5X6-23181-L0-00 |
— | ||
|
20
|
20
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
21
|
21
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.21 |
||
|
21
|
21
4H7-23119-00-00
Screw, Pan Head
|
4H7-23119-00-00 |
— | ||
| replacements | |||||
|
21
|
21
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
21
|
21
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
|
22
|
22
256-23142-60-00
Seat, Spring Upper
|
256-23142-60-00 |
— | ||
|
23
|
23
3R4-23389-00-00 Guide, Wire |
3R4-23389-00-00 |
from US $15.58 |
||
|
24
|
24
2K5-23318-00-00
Holder, Cable 1
|
2K5-23318-00-00 |
— | ||
