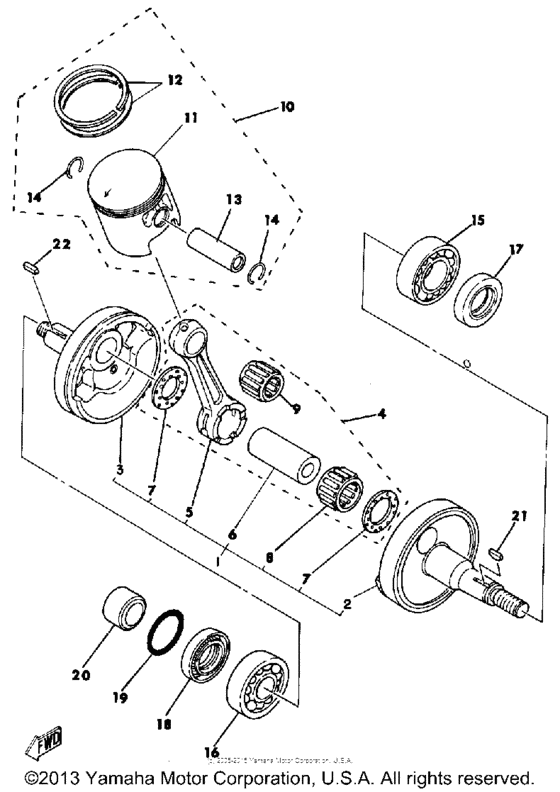

Crankshaft & Piston Diagram Yamaha IT
- Year
- 1981
- Sales region
- USA
- Engine Capacity
- 125
- Model
- IT125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3R9-11400-00-00
Crankshaft Assembly
|
3R9-11400-00-00 |
— | ||
|
2
|
2
1W1-11412-01-00 Crank 1 |
1W1-11412-01-00 |
from US $157.50 |
||
|
3
|
3
1W1-11422-01-00 Crank 2 |
1W1-11422-01-00 |
from US $157.50 |
||
|
4
|
4
3R2-11650-01-00
Connecting Rod Assembly (3M5-
3M5- |
3R2-11650-01-00 |
— | ||
|
5
|
5
3R2-11651-01-00
Rod, Connecting
|
3R2-11651-01-00 |
— | ||
|
6
|
6
3M5-11681-00-00 Pin, Crank 1 |
3M5-11681-00-00 |
from US $9.26 |
||
|
7
|
7
90209-22248-00 Washer, Special Shape |
90209-22248-00 |
from US $3.64 |
||
|
8
|
8
933-10422-H0-00 Bearing, Cylinder.#10 |
933-10422-H0-00 |
from US $55.54 |
||
|
9
|
9
933-10216-L2-00 Bearing, Cylindrical |
933-10216-L2-00 |
from US $27.49 |
||
|
10
|
10
3R9-11630-00-00
Piston Kit Std
|
3R9-11630-00-00 |
— | ||
|
11
|
11
3R9-11631-00-96
Piston Std
|
3R9-11631-00-96 |
— | ||
|
12
|
12
3R9-11610-00-00
Piston Ringset Std
|
3R9-11610-00-00 |
— | ||
|
13
|
13
137-11633-00-00
Pin, Piston
|
137-11633-00-00 |
— | ||
| replacement | |||||
|
13
|
13
137-11633-10-00 Pin, Piston |
137-11633-10-00 |
from US $18.99 |
||
|
14
|
14
93450-17044-00 Circlip |
93450-17044-00 |
from US $1.56 |
||
|
15
|
15
930-19150-01-00
New Genuine Part
IN PRICE BOOK |
930-19150-01-00 |
— | ||
|
16
|
16
93306-30421-00 Bearing |
93306-30421-00 |
from US $32.44 |
||
| replacement | |||||
|
16
|
16
933-06304-42-00 Bearing |
933-06304-42-00 |
from US $26.21 |
||
|
17
|
17
931-03251-25-00 Oil Seal, Sw-Type |
931-03251-25-00 |
from US $13.03 |
||
|
18
|
18
93103-28011-00 Oil Seal, Sw-Type (93103-28100)93103-28100 |
93103-28011-00 |
from US $5.96 |
||
|
19
|
19
93210-180A6-00 O-Ring |
93210-180A6-00 |
from US $3.14 |
||
|
20
|
20
90387-20488-00 Collar |
90387-20488-00 |
from US $13.46 |
||
|
21
|
21
90280-03017-00 Key, Woodruff |
90280-03017-00 |
from US $1.70 |
||
|
22
|
22
90282-05005-00 Key, Straight |
90282-05005-00 |
from US $1.70 |
||
|
22
|
22
3R9-11635-00-00
Piston 1 O/s 0.25
O/S 0.25 |
3R9-11635-00-00 |
— | ||
|
22
|
22
3R9-11630-20-00
Piston Kit 2Nd
2ND |
3R9-11630-20-00 |
— | ||
|
22
|
22
3R9-11630-30-00
Piston Kit 3Rd
3RD |
3R9-11630-30-00 |
— | ||
|
22
|
22
3R9-11630-40-00
Piston Kit 4Th
4TH |
3R9-11630-40-00 |
— | ||
|
22
|
22
3R9-11636-00-00
Piston 2 O/s 0.50
O/S 0.50 |
3R9-11636-00-00 |
— | ||
|
22
|
22
3R9-11637-00-00
Piston 3 O/s 0.75
O/S 0.75 |
3R9-11637-00-00 |
— | ||
|
22
|
22
3R9-11638-00-00
Piston 4 O/s 1.00
O/S 1.00 |
3R9-11638-00-00 |
— | ||
|
22
|
22
3R9-11610-10-00
Piston Ringset 1St
1ST |
3R9-11610-10-00 |
— | ||
|
22
|
22
3R9-11610-20-00
Piston Ringset 2Nd
2ND |
3R9-11610-20-00 |
— | ||
|
22
|
22
3R9-11610-30-00
Piston Ringset 3Rd
3RD |
3R9-11610-30-00 |
— | ||
|
22
|
22
3R9-11610-40-00
Piston Ringset 4Th
4TH |
3R9-11610-40-00 |
— | ||
