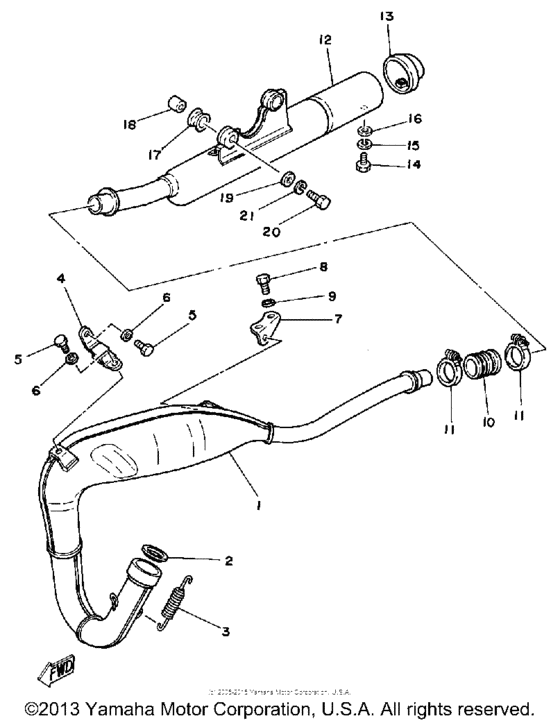

Exhaust Diagram Yamaha IT
- Year
- 1981
- Sales region
- USA
- Engine Capacity
- 125
- Model
- IT125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3R9-14610-00-00
Exhaust Pipe Assembly L
|
3R9-14610-00-00 |
— | ||
|
2
|
2
3R3-14613-00-00 Gasket, Exhaust Pipe |
3R3-14613-00-00 |
from US $10.77 |
||
|
3
|
3
90507-20030-00 Spring, Tension |
90507-20030-00 |
from US $4.53 |
||
|
4
|
4
1M1-14772-00-00
Stay, Muffler 2
|
1M1-14772-00-00 |
— | ||
|
5
|
5
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
5
|
5
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
6
|
6
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
6
|
6
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
6
|
6
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
6
|
6
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
7
|
7
565-14771-00-00 Stay, Muffler 1 |
565-14771-00-00 |
from US $33.58 |
||
| replacement | |||||
|
7
|
7
565-14771-01-00 Stay, Muffler 1 |
565-14771-01-00 |
from US $20.34 |
||
|
8
|
8
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
8
|
8
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
9
|
9
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
9
|
9
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
9
|
9
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
9
|
9
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
10
|
10
1W2-14714-00-00 Gasket, Muffler |
1W2-14714-00-00 |
from US $16.88 |
||
|
11
|
11
90460-37026-00 Clamp, Hose |
90460-37026-00 |
from US $4.53 |
||
| replacement | |||||
|
11
|
11
90460-37130-00 Clamp, Hose |
90460-37130-00 |
from US $4.53 |
||
|
12
|
12
3R9-14753-10-00
Silencer, Exhaust
|
3R9-14753-10-00 |
— | ||
|
13
|
13
1W2-14787-00-00
Cap, Silencer
|
1W2-14787-00-00 |
— | ||
|
14
|
14
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
14
|
14
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
15
|
15
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
16
|
16
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
16
|
16
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
16
|
16
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
16
|
16
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
17
|
17
90480-22269-00
Grommet
|
90480-22269-00 |
— | ||
|
18
|
18
90387-081A3-00
Collar
|
90387-081A3-00 |
— | ||
|
19
|
19
90201-085E6-00 Washer Plate |
90201-085E6-00 |
from US $4.39 |
||
|
20
|
20
973-13080-30-00
Bolt
|
973-13080-30-00 |
— | ||
| replacements | |||||
|
20
|
20
970-24080-30-00 Bolt |
970-24080-30-00 |
from US $1.55 |
||
|
20
|
20
970-17080-30-00 Bolt |
970-17080-30-00 |
from US $1.70 |
||
|
20
|
20
970-13080-30-00 Bolt |
970-13080-30-00 |
from US $3.47 |
||
|
21
|
21
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
