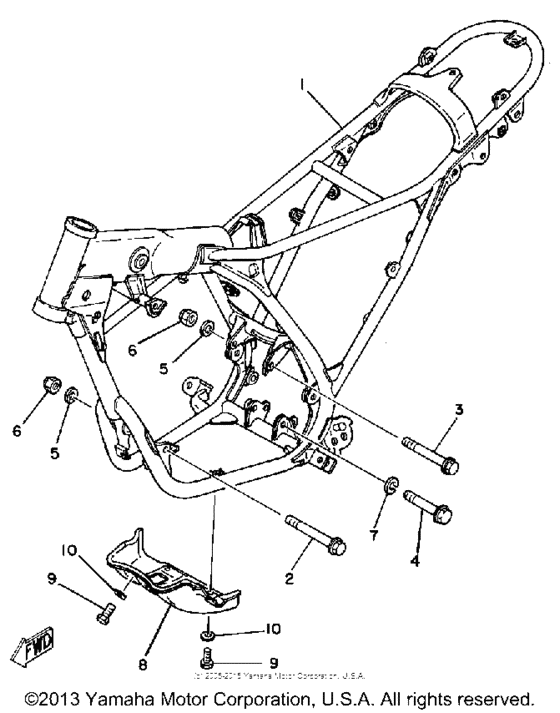

Frame Diagram Yamaha IT
- Year
- 1981
- Sales region
- USA
- Engine Capacity
- 125
- Model
- IT125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3R9-21110-03-33
Frame
|
3R9-21110-03-33 |
— | ||
|
2
|
2
90105-08099-00 Bolt, Flange |
90105-08099-00 |
from US $5.81 |
||
|
3
|
3
90105-08120-00 Bolt, Flange |
90105-08120-00 |
from US $7.51 |
||
| replacement | |||||
|
3
|
3
95817-08105-00 Bolt, Flange |
95817-08105-00 |
from US $7.79 |
||
|
4
|
4
90105-10037-00 Bolt, Flange |
90105-10037-00 |
from US $6.52 |
||
|
5
|
5
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
6
|
6
901-85080-89-00
Nut, Self-Locking
|
901-85080-89-00 |
— | ||
| replacement | |||||
|
6
|
6
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
7
|
7
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
8
|
8
3R9-21471-00-35
Protector, Engine
|
3R9-21471-00-35 |
— | ||
|
9
|
9
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
9
|
9
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
10
|
10
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
10
|
10
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
10
|
10
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
10
|
10
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
