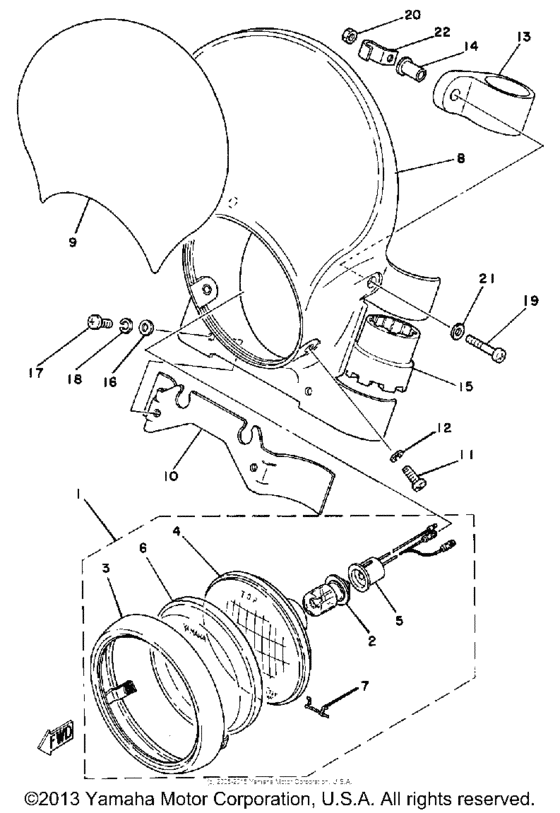

Headlight Diagram Yamaha IT
- Year
- 1981
- Sales region
- USA
- Engine Capacity
- 125
- Model
- IT125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3R8-84110-61-00
New Genuine Part
IN PRICE BOOK |
3R8-84110-61-00 |
— | ||
|
2
|
2
527-84114-09-XX Bulb, Hl 6V25/25WHL 6V25/25W |
527-84114-09-XX |
US $6.30 |
||
|
3
|
3
3R8-84115-60-00
Rim, Headlight
|
3R8-84115-60-00 |
— | ||
|
4
|
4
3R8-84120-60-00
Lens Assembly
|
3R8-84120-60-00 |
— | ||
|
5
|
5
3R8-84140-61-00
Socket Cord Assembly
|
3R8-84140-61-00 |
— | ||
|
6
|
6
3R8-84144-60-00
Cover, Headlight
|
3R8-84144-60-00 |
— | ||
|
7
|
7
1W2-84324-60-00
Spring, Reflector
|
1W2-84324-60-00 |
— | ||
|
8
|
8
3R9-84130-10-00
Body Assembly, Headlight
|
3R9-84130-10-00 |
— | ||
|
9
|
9
3R8-84141-01-00
Emblem, Headlight
|
3R8-84141-01-00 |
— | ||
|
10
|
10
3R9-84181-00-00
Bracket, Lower 1
|
3R9-84181-00-00 |
— | ||
|
11
|
11
985-80050-16-00
Screw, Pan Head
|
985-80050-16-00 |
— | ||
| replacement | |||||
|
11
|
11
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
12
|
12
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
13
|
13
3R9-84163-10-00
Damper
|
3R9-84163-10-00 |
— | ||
|
14
|
14
3R8-84133-00-00
Collar, Screw
|
3R8-84133-00-00 |
— | ||
|
15
|
15
3R9-84164-10-00
Damper
|
3R9-84164-10-00 |
— | ||
|
16
|
16
90201-06571-00 Washer, Plate |
90201-06571-00 |
from US $1.70 |
||
|
17
|
17
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
17
|
17
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
18
|
18
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
19
|
19
985-80060-30-00
Screw Pan Head
|
985-80060-30-00 |
— | ||
| replacement | |||||
|
19
|
19
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.35 |
||
|
20
|
20
90185-06062-00 Nut, Self-Locking |
90185-06062-00 |
from US $2.69 |
||
|
21
|
21
90201-06407-00 Washer, Plate |
90201-06407-00 |
from US $1.70 |
||
| replacement | |||||
|
21
|
21
90201-06747-00 Washer, Plate |
90201-06747-00 |
from US $1.70 |
||
|
22
|
22
90462-05005-00 Clamp |
90462-05005-00 |
from US $2.13 |
||
