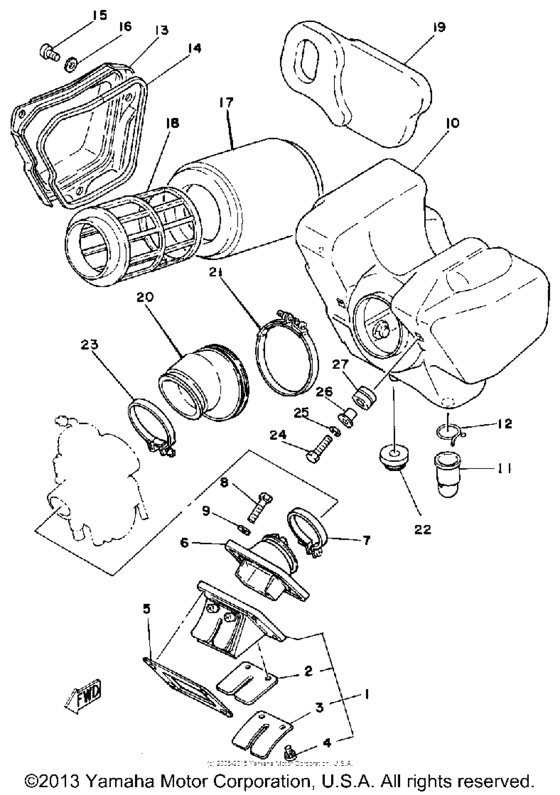

Intake Diagram Yamaha IT
- Year
- 1981
- Sales region
- USA
- Engine Capacity
- 125
- Model
- IT125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
10V-13610-01-00 Reed Valve Assembly (885-13610-885-13610- |
10V-13610-01-00 |
from US $139.54 |
||
|
2
|
2
10V-13613-01-00 Reed, Valve (1L8-13613-00-00)1L8-13613-00-00 |
10V-13613-01-00 |
from US $10.34 |
||
|
3
|
3
1UA-13616-00-00
Stopper, Reed Valve (10V-1261
10V-1261 |
1UA-13616-00-00 |
— | ||
|
4
|
4
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
5
|
5
3TT-13621-00-00 Gasket, Valve Seat |
3TT-13621-00-00 |
from US $9.92 |
||
|
6
|
6
537-13565-01-00
Joint, Carburetor
|
537-13565-01-00 |
— | ||
|
7
|
7
90460-43053-00 Clamp, Hose |
90460-43053-00 |
from US $7.65 |
||
| replacement | |||||
|
7
|
7
90460-43179-00 Clamp, Hose |
90460-43179-00 |
from US $7.65 |
||
|
8
|
8
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
8
|
8
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
9
|
9
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
9
|
9
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
9
|
9
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
9
|
9
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
10
|
10
3R9-14401-00-00
Air Clnr Case Assembly
|
3R9-14401-00-00 |
— | ||
|
11
|
11
1W4-14457-00-00
Seal
|
1W4-14457-00-00 |
— | ||
|
12
|
12
90467-20030-00 Clip |
90467-20030-00 |
US $3.83 |
||
| replacement | |||||
|
12
|
12
90467-20M15-00 Clip |
90467-20M15-00 |
from US $3.83 |
||
|
13
|
13
3R9-14412-00-00
Cap, Cleaner Case 1
|
3R9-14412-00-00 |
— | ||
|
14
|
14
50M-14462-01-00 Seal |
50M-14462-01-00 |
from US $11.12 |
||
|
15
|
15
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
15
|
15
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
16
|
16
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
16
|
16
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
16
|
16
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
16
|
16
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
17
|
17
3R9-14451-00-00
Element, Air Clnr (3R9-14450-
3R9-14450-00 |
3R9-14451-00-00 |
— | ||
|
18
|
18
3R9-14458-00-00
Guide, Element
|
3R9-14458-00-00 |
— | ||
|
19
|
19
3R9-14468-00-00
Plate, Element Ftng
|
3R9-14468-00-00 |
— | ||
|
20
|
20
3R9-14453-00-00
Joint, Air Clnr 1
|
3R9-14453-00-00 |
— | ||
|
21
|
21
90460-75020-00 Hose Clamp Assy |
90460-75020-00 |
from US $9.78 |
||
| replacement | |||||
|
21
|
21
904-50750-02-00 Hose Clamp Assy |
904-50750-02-00 |
from US $9.78 |
||
|
22
|
22
90480-18171-00 Grommet |
90480-18171-00 |
from US $1.70 |
||
|
23
|
23
90460-53140-00 Hose Clamp Assy |
90460-53140-00 |
from US $4.96 |
||
| replacement | |||||
|
23
|
23
904-50530-08-00 Hose Clamp Assy |
904-50530-08-00 |
from US $4.11 |
||
|
24
|
24
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
24
|
24
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
25
|
25
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
26
|
26
903-87073-91-00 Collar |
903-87073-91-00 |
from US $1.84 |
||
|
27
|
27
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.56 |
||
