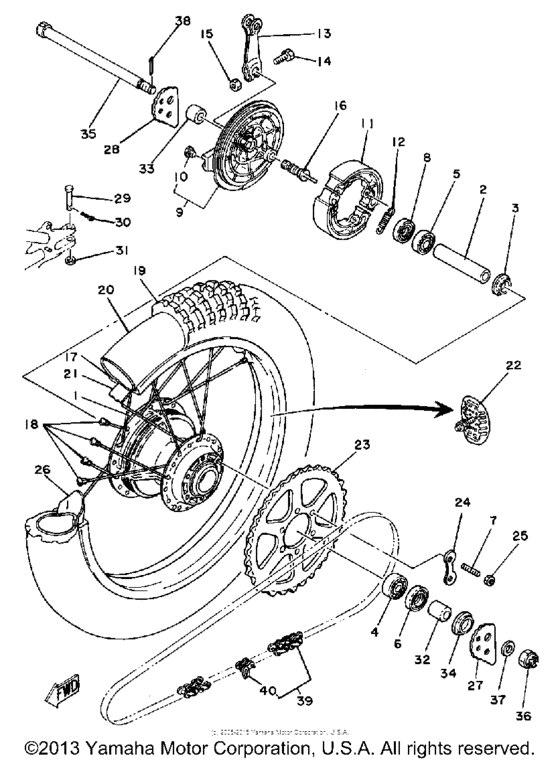

Rear wheel Diagram Yamaha IT
- Year
- 1981
- Sales region
- USA
- Engine Capacity
- 125
- Model
- IT125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1W1-25311-00-98
Hub, Rear
|
1W1-25311-00-98 |
— | ||
|
2
|
2
90560-15313-00 Spacer |
90560-15313-00 |
from US $25.93 |
||
|
3
|
3
146-25115-00-00 Flange, Spacer |
146-25115-00-00 |
from US $6.23 |
||
|
4
|
4
933-06302-02-00 Bearing (1H7) |
933-06302-02-00 |
from US $20.54 |
||
| replacement | |||||
|
4
|
4
93306-30212-00 Bearing |
93306-30212-00 |
from US $15.88 |
||
|
5
|
5
933-06202-09-00
Bearing
|
933-06202-09-00 |
— | ||
| replacement | |||||
|
5
|
5
93306-20205-00 Bearing |
93306-20205-00 |
from US $8.22 |
||
|
6
|
6
93106-26005-00 Oil Seal |
93106-26005-00 |
from US $6.62 |
||
|
7
|
7
90116-10221-00 Bolt, Stud |
90116-10221-00 |
from US $6.61 |
||
|
8
|
8
93104-22018-00 Oil Seal |
93104-22018-00 |
from US $2.66 |
||
|
9
|
9
999-99020-24-00
Brake Shoe Plate Assembly (2A6-
2A6- LOW GLOSS BLK |
999-99020-24-00 |
— | ||
|
10
|
10
90480-10068-00 Grommet |
90480-10068-00 |
from US $1.70 |
||
|
11
|
11
183-W2536-00-00
Brake Shoe Set-2Pcs
|
183-W2536-00-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
90506-17328-00 Spring, Tension |
90506-17328-00 |
from US $8.36 |
||
|
13
|
13
1E2-25155-00-00 Lever, Camshaft 1 |
1E2-25155-00-00 |
from US $20.40 |
||
|
14
|
14
90101-06278-00 Bolt |
90101-06278-00 |
from US $1.54 |
||
|
15
|
15
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
16
|
16
2RH-25351-00-00 Camshaft |
2RH-25351-00-00 |
from US $33.29 |
||
|
17
|
17
944-18182-45-00
Rim 1.85X18
1.85X18 |
944-18182-45-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
1.85X18 |
999-99999-99-00 |
— | ||
|
18
|
18
537-25304-01-00
Spoke Set, Rear
|
537-25304-01-00 |
— | ||
|
19
|
19
941-41186-49-00
410-18 4Pr M22
4PR M22 |
941-41186-49-00 |
— | ||
|
20
|
20
94241-18153-00 Tube (4.10-18)4.10-18 |
94241-18153-00 |
US $114.34 |
||
|
21
|
21
94345-18081-00 Band, Rim (2.50-18)2.50-18 |
94345-18081-00 |
from US $4.39 |
||
| replacement | |||||
|
21
|
21
94340-18086-00 Band, Rim (2.50-18)2.50-18 |
94340-18086-00 |
from US $4.39 |
||
|
22
|
22
2X3-25394-00-00
Spacer, Bead
|
2X3-25394-00-00 |
— | ||
|
23
|
23
3R9-25446-10-00
Sprocket, Drivn 46T
46T STDYAMAHA BLACK |
3R9-25446-10-00 |
— | ||
|
23
|
23
3R9-25444-10-33
Sprocket, Drivn 44T
44T ALTERNATE PARTSYAMAHA BLACK |
3R9-25444-10-33 |
— | ||
|
23
|
23
3R9-25448-10-00
Sprocket, Drivn 48T
48T ALTERNATE PARTSYAMAHA BLACK |
3R9-25448-10-00 |
— | ||
|
24
|
24
1G8-25412-00-00 Washer |
1G8-25412-00-00 |
from US $10.34 |
||
|
25
|
25
957-01105-00-00
Nut, With Washer
|
957-01105-00-00 |
— | ||
| replacements | |||||
|
25
|
25
95704-10500-00 Nut, With Washer |
95704-10500-00 |
from US $1.07 |
||
|
25
|
25
90179-10394-00 Nut, Flange |
90179-10394-00 |
from US $1.56 |
||
|
26
|
26
2X3-25394-00-00
Spacer, Bead
|
2X3-25394-00-00 |
— | ||
|
27
|
27
1W2-25388-01-00 Puller, Chain 1 |
1W2-25388-01-00 |
from US $10.48 |
||
|
28
|
28
1W2-25389-01-00 Puller, Chain 2 |
1W2-25389-01-00 |
from US $9.61 |
||
|
29
|
29
91701-06042-00 Pin |
91701-06042-00 |
from US $3.40 |
||
|
30
|
30
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
30
|
30
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
31
|
31
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
31
|
31
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
31
|
31
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
31
|
31
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
32
|
32
903-87155-24-00
Collar
|
903-87155-24-00 |
— | ||
|
33
|
33
903-87155-24-00
Collar
|
903-87155-24-00 |
— | ||
|
34
|
34
401-25367-00-00 Cover, Hub Dust |
401-25367-00-00 |
from US $8.08 |
||
|
35
|
35
5X3-25381-00-00
Axle, Wheel (2A6-25381-00-00)
2A6-25381-00-00 |
5X3-25381-00-00 |
— | ||
|
36
|
36
90171-14020-00 Nut, Castle |
90171-14020-00 |
from US $9.07 |
||
| replacement | |||||
|
36
|
36
90171-14056-00 Nut, Castle |
90171-14056-00 |
from US $6.96 |
||
|
37
|
37
90201-15238-00 Washer, Plate |
90201-15238-00 |
from US $4.11 |
||
|
38
|
38
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
38
|
38
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
|
39
|
39
945-85201-00-00
520D5-100L Did (94515-20100)
94515-20100 |
945-85201-00-00 |
— | ||
| replacement | |||||
|
39
|
39
9Y5-85200-99-00
520D5-100L Did (94515-20100)
94515-20100 |
9Y5-85200-99-00 |
— | ||
|
40
|
40
94685-20001-00 Joint, Chain (Did 520Dm-Rj)520DM-RJ |
94685-20001-00 |
from US $3.28 |
||
| replacements | |||||
|
40
|
40
94681-68001-00 Joint, Chain (Did 520Dm-Rj)520DM-RJ |
94681-68001-00 |
from US $3.64 |
||
|
40
|
40
CHN-QR520-MS-TR
Chain 520
520DM-RJ |
CHN-QR520-MS-TR |
— | ||
