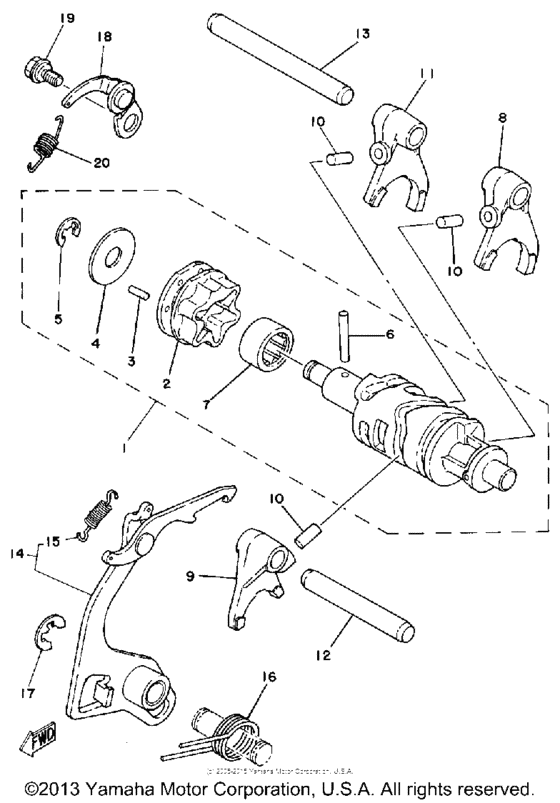

Shift cam - fork Diagram Yamaha IT
- Year
- 1981
- Sales region
- USA
- Engine Capacity
- 125
- Model
- IT125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2W6-18540-00-00
Shift Cam Assembly
|
2W6-18540-00-00 |
— | ||
|
2
|
2
1W1-18185-00-00 Segment |
1W1-18185-00-00 |
from US $40.30 |
||
|
3
|
3
93604-12037-00 Pin, Dowel |
93604-12037-00 |
from US $1.28 |
||
|
4
|
4
1W1-18561-00-00 Plate, Side 1 |
1W1-18561-00-00 |
from US $2.69 |
||
|
5
|
5
99001-08600-00 Circlip |
99001-08600-00 |
from US $1.42 |
||
|
6
|
6
93604-30018-00 Pin, Dowel |
93604-30018-00 |
from US $2.55 |
||
|
7
|
7
93315-21813-00 Bearing |
93315-21813-00 |
from US $7.62 |
||
|
8
|
8
2W6-18511-00-00
Fork, Shift 1
|
2W6-18511-00-00 |
— | ||
|
9
|
9
2W6-18512-00-00
Fork, Shift 2
|
2W6-18512-00-00 |
— | ||
|
10
|
10
90250-06013-00 Pin, Straight |
90250-06013-00 |
from US $1.70 |
||
|
11
|
11
2W6-18513-00-00
Fork, Shift 3
|
2W6-18513-00-00 |
— | ||
|
12
|
12
2A6-18531-00-00 Bar, Shift Fork Guide 1 |
2A6-18531-00-00 |
from US $18.99 |
||
|
13
|
13
2A6-18535-00-00 Bar, Shift Fork Guide 2 |
2A6-18535-00-00 |
from US $6.30 |
||
|
14
|
14
4F2-18120-00-00 Shift Lever Assembly (2A6-181202A6-18120 |
4F2-18120-00-00 |
from US $62.86 |
||
|
15
|
15
90506-08155-00 Spring, Tension |
90506-08155-00 |
from US $2.41 |
||
|
16
|
16
90508-32349-00 Spring, Torsion |
90508-32349-00 |
from US $4.82 |
||
|
17
|
17
99006-10600-00 Circlip |
99006-10600-00 |
from US $1.34 |
||
|
18
|
18
1W1-18140-00-00 Stopper Lever Assembly |
1W1-18140-00-00 |
from US $18.84 |
||
|
19
|
19
50W-21631-00-00 Bolt |
50W-21631-00-00 |
from US $2.55 |
||
| replacement | |||||
|
19
|
19
90109-06190-00 Bolt |
90109-06190-00 |
from US $2.32 |
||
|
20
|
20
90506-09156-00 Spring, Tension |
90506-09156-00 |
from US $2.41 |
||
