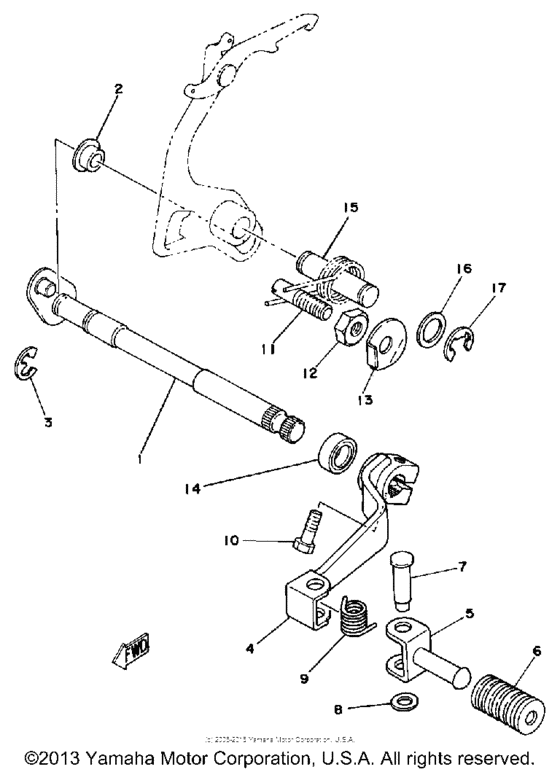

Shift shaft - pedal Diagram Yamaha IT
- Year
- 1981
- Sales region
- USA
- Engine Capacity
- 125
- Model
- IT125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4F2-18101-00-00 Shift Shaft Asy. 1 |
4F2-18101-00-00 |
from US $46.70 |
||
| replacement | |||||
|
1
|
1
4F2-18101-02-00 Shift Shaft Assy |
4F2-18101-02-00 |
from US $37.69 |
||
|
2
|
2
401-18178-00-00 Roller, Shift Lever |
401-18178-00-00 |
from US $9.49 |
||
|
3
|
3
99006-10600-00 Circlip |
99006-10600-00 |
from US $1.34 |
||
|
4
|
4
2HF-18110-01-00 Shift Pedal Assy |
2HF-18110-01-00 |
from US $46.84 |
||
| replacement | |||||
|
4
|
4
2HF-18110-02-00 Shift Pedal Assy |
2HF-18110-02-00 |
from US $46.84 |
||
|
5
|
5
3R8-18162-00-00
Pedal, Shift
|
3R8-18162-00-00 |
— | ||
|
6
|
6
1W6-18113-00-00 Cover, Shift Pedal |
1W6-18113-00-00 |
from US $6.52 |
||
|
7
|
7
902-43080-19-00
Pin (90243-08017)
90243-08017 |
902-43080-19-00 |
— | ||
|
8
|
8
90201-06042-00 Washer, Plate |
90201-06042-00 |
from US $1.70 |
||
|
9
|
9
905-08204-15-00
Spring, Torsion
|
905-08204-15-00 |
— | ||
|
10
|
10
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
10
|
10
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
11
|
11
90149-08111-00 Screw, Specl Shape |
90149-08111-00 |
from US $4.96 |
||
|
12
|
12
90170-08029-00 Nut, Hexagon |
90170-08029-00 |
from US $1.56 |
||
| replacement | |||||
|
12
|
12
90170-08193-00 Nut, Hexagon |
90170-08193-00 |
from US $1.56 |
||
|
13
|
13
90215-08014-00 Washer, Lock |
90215-08014-00 |
from US $2.55 |
||
|
14
|
14
931-01120-60-00 Oil Seal |
931-01120-60-00 |
from US $6.94 |
||
| replacement | |||||
|
14
|
14
931-01121-73-00 Oil Seal |
931-01121-73-00 |
from US $4.64 |
||
|
15
|
15
1W1-18197-01-00 Shaft |
1W1-18197-01-00 |
from US $9.07 |
||
|
16
|
16
902-0112M-34-00 Washer, Plate |
902-0112M-34-00 |
from US $2.69 |
||
|
17
|
17
99006-10600-00 Circlip |
99006-10600-00 |
from US $1.34 |
||
