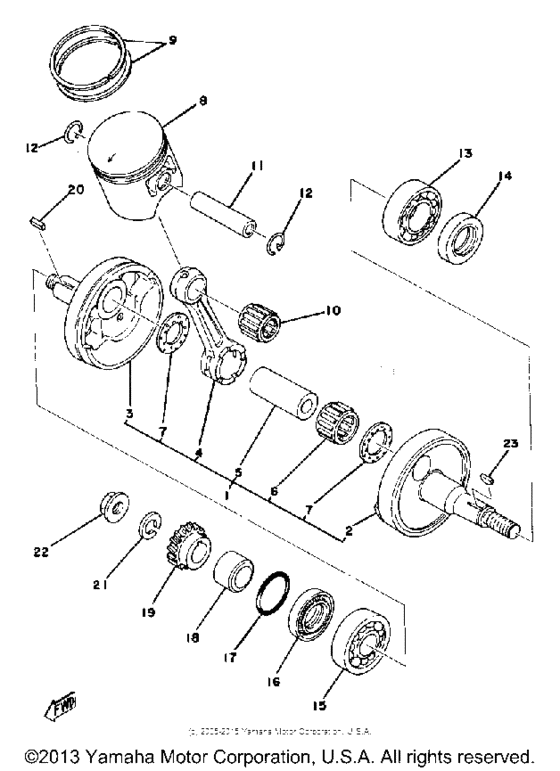

Crankshaft & Piston Diagram Yamaha IT
- Year
- 1978
- Sales region
- USA
- Engine Capacity
- 175
- Model
- IT175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2K5-11400-00-00
Crankshaft Assembly (1W1-11400-
1W1-11400- |
2K5-11400-00-00 |
— | ||
|
2
|
2
1W1-11412-01-00 Crank 1 |
1W1-11412-01-00 |
from US $157.50 |
||
|
3
|
3
1W1-11422-01-00 Crank 2 |
1W1-11422-01-00 |
from US $157.50 |
||
|
4
|
4
3R2-11651-01-00
Rod, Connecting
|
3R2-11651-01-00 |
— | ||
|
5
|
5
3M5-11681-00-00 Pin, Crank 1 |
3M5-11681-00-00 |
from US $9.26 |
||
|
6
|
6
933-10422-H0-00 Bearing, Cylinder.#10 |
933-10422-H0-00 |
from US $55.54 |
||
|
7
|
7
90209-22248-00 Washer, Special Shape |
90209-22248-00 |
from US $3.64 |
||
|
8
|
8
1W2-11631-10-96
Piston Std
|
1W2-11631-10-96 |
— | ||
|
8
|
8
1W2-11638-10-00
Piston 4 O.s. 1.00
O.S. 1.00 ALT. PART |
1W2-11638-10-00 |
— | ||
|
8
|
8
1W2-11637-10-00
Piston 3 O/s 0.75
O/S 0.75 ALT. PART |
1W2-11637-10-00 |
— | ||
|
8
|
8
1W2-11636-10-00
Piston 2 O/s 0.50
O/S 0.50 ALT. PART |
1W2-11636-10-00 |
— | ||
| replacement | |||||
|
8
|
8
3R6-11630-21-00
PISTON 4 O.S. 1.00
O/S 0.50 ALT. PART |
3R6-11630-21-00 |
— | ||
|
8
|
8
1W2-11635-10-00
Piston 1 O/s 0.25
O/S 0.25 ALT. PART |
1W2-11635-10-00 |
— | ||
| replacement | |||||
|
8
|
8
3R6-11630-12-00
PISTON KIT 2ND
O/S 0.25 ALT. PART |
3R6-11630-12-00 |
— | ||
|
9
|
9
1W2-11610-00-00
Piston Ringset Std
|
1W2-11610-00-00 |
— | ||
|
9
|
9
1W2-11610-10-00
Piston Ringset 1St
1ST ALT. PART |
1W2-11610-10-00 |
— | ||
|
9
|
9
1W2-11610-20-00
Piston Ringset 2Nd
2ND ALT. PART |
1W2-11610-20-00 |
— | ||
|
9
|
9
1W2-11610-40-00
Piston Ringset 4Th
4TH ALT. PART |
1W2-11610-40-00 |
— | ||
|
9
|
9
1W2-11610-30-00
Piston Ringset 3Rd
3RD ALT. PART |
1W2-11610-30-00 |
— | ||
|
10
|
10
93310-216E1-00 Bearing |
93310-216E1-00 |
from US $8.28 |
||
|
11
|
11
251-11633-00-00 Pin, Piston |
251-11633-00-00 |
from US $18.84 |
||
|
12
|
12
93450-17025-00 Circlip |
93450-17025-00 |
from US $1.70 |
||
|
13
|
13
933-06205-29-00 Bearing |
933-06205-29-00 |
from US $16.20 |
||
|
14
|
14
931-03251-25-00 Oil Seal, Sw-Type |
931-03251-25-00 |
from US $13.03 |
||
|
15
|
15
93306-30421-00 Bearing |
93306-30421-00 |
from US $32.44 |
||
| replacement | |||||
|
15
|
15
933-06304-42-00 Bearing |
933-06304-42-00 |
from US $26.21 |
||
|
16
|
16
93103-28011-00 Oil Seal, Sw-Type (93103-28100)93103-28100 |
93103-28011-00 |
from US $5.96 |
||
|
17
|
17
93210-180A6-00 O-Ring |
93210-180A6-00 |
from US $3.14 |
||
|
18
|
18
90387-20488-00 Collar |
90387-20488-00 |
from US $13.46 |
||
|
19
|
19
1W1-16111-00-00
Gear, Pri Drive
|
1W1-16111-00-00 |
— | ||
|
20
|
20
90282-05005-00 Key, Straight |
90282-05005-00 |
from US $1.70 |
||
|
21
|
21
90204-12007-00 Washer, Spring |
90204-12007-00 |
from US $3.26 |
||
|
22
|
22
901-79122-44-00
Nut
|
901-79122-44-00 |
— | ||
| replacement | |||||
|
22
|
22
90179-12659-00 Nut |
90179-12659-00 |
from US $1.70 |
||
|
23
|
23
90280-03017-00 Key, Woodruff |
90280-03017-00 |
from US $1.70 |
||
