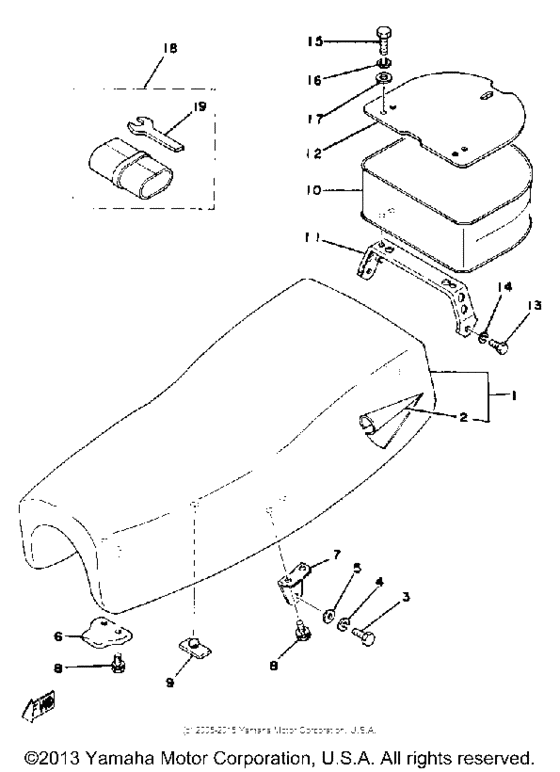

Seat Diagram Yamaha IT
- Year
- 1978
- Sales region
- USA
- Engine Capacity
- 175
- Model
- IT175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2W6-W2473-00-00
Semi-Dbl-Seat Assembly
|
2W6-W2473-00-00 |
— | ||
|
2
|
2
1W2-24771-00-00
Cover, Sm-Dbl Seat
|
1W2-24771-00-00 |
— | ||
|
3
|
3
97301-06014-00 Bolt, Hexagon |
97301-06014-00 |
from US $1.84 |
||
| replacement | |||||
|
3
|
3
97017-06014-00 Bolt(8Cp) |
97017-06014-00 |
from US $1.84 |
||
|
4
|
4
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
5
|
5
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
5
|
5
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
5
|
5
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
5
|
5
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
6
|
6
1M1-24748-00-00
Bracket, Seat
|
1M1-24748-00-00 |
— | ||
|
7
|
7
509-24738-01-00
Bracket, Seat
|
509-24738-01-00 |
— | ||
|
8
|
8
90101-06304-00 Bolt |
90101-06304-00 |
from US $4.82 |
||
|
9
|
9
509-24724-00-00 Damper, Seat |
509-24724-00-00 |
from US $5.10 |
||
|
10
|
10
1W2-24850-01-00
Carrier Box Assembly
|
1W2-24850-01-00 |
— | ||
|
11
|
11
1W2-24832-00-00
Bracket, Carrier 1
|
1W2-24832-00-00 |
— | ||
|
12
|
12
1W2-24833-01-00
Bracket, Carrier 2
|
1W2-24833-01-00 |
— | ||
|
13
|
13
97301-06014-00 Bolt, Hexagon |
97301-06014-00 |
from US $1.84 |
||
| replacement | |||||
|
13
|
13
97017-06014-00 Bolt(8Cp) |
97017-06014-00 |
from US $1.84 |
||
|
14
|
14
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
15
|
15
97001-06018-00 Bolt |
97001-06018-00 |
from US $1.07 |
||
| replacement | |||||
|
15
|
15
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
16
|
16
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
17
|
17
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
17
|
17
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
18
|
18
1W2-W2810-00-00
Tool Kit
|
1W2-W2810-00-00 |
— | ||
|
19
|
19
10V-28135-00-00 Spanner, Special |
10V-28135-00-00 |
US $45.14 |
||
