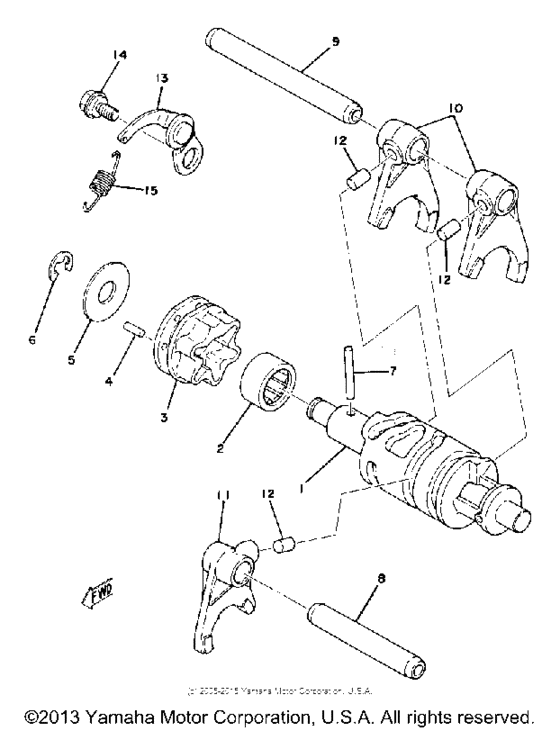

Shift shaft (1) Diagram Yamaha IT
- Year
- 1978
- Sales region
- USA
- Engine Capacity
- 175
- Model
- IT175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1W1-18540-00-00 Shift Cam Assembly |
1W1-18540-00-00 |
from US $124.34 |
||
|
2
|
2
93315-21813-00 Bearing |
93315-21813-00 |
from US $7.62 |
||
|
3
|
3
1W1-18185-00-00 Segment |
1W1-18185-00-00 |
from US $40.30 |
||
|
4
|
4
93604-12037-00 Pin, Dowel |
93604-12037-00 |
from US $1.28 |
||
|
5
|
5
1W1-18561-00-00 Plate, Side 1 |
1W1-18561-00-00 |
from US $2.69 |
||
|
6
|
6
99001-08600-00 Circlip |
99001-08600-00 |
from US $1.42 |
||
|
7
|
7
93604-30018-00 Pin, Dowel |
93604-30018-00 |
from US $2.55 |
||
|
8
|
8
2A6-18531-00-00 Bar, Shift Fork Guide 1 |
2A6-18531-00-00 |
from US $18.99 |
||
|
9
|
9
2A6-18535-00-00 Bar, Shift Fork Guide 2 |
2A6-18535-00-00 |
from US $6.30 |
||
|
10
|
10
1W1-18511-01-00
Fork, Shift 1
|
1W1-18511-01-00 |
— | ||
|
11
|
11
2A6-18512-00-00 Fork, Shift 2 |
2A6-18512-00-00 |
from US $40.63 |
||
|
12
|
12
90250-06013-00 Pin, Straight |
90250-06013-00 |
from US $1.70 |
||
|
13
|
13
1W1-18140-00-00 Stopper Lever Assembly |
1W1-18140-00-00 |
from US $18.84 |
||
|
14
|
14
50W-21631-00-00 Bolt |
50W-21631-00-00 |
from US $2.55 |
||
| replacement | |||||
|
14
|
14
90109-06190-00 Bolt |
90109-06190-00 |
from US $2.32 |
||
|
15
|
15
90506-09156-00 Spring, Tension |
90506-09156-00 |
from US $2.41 |
||
