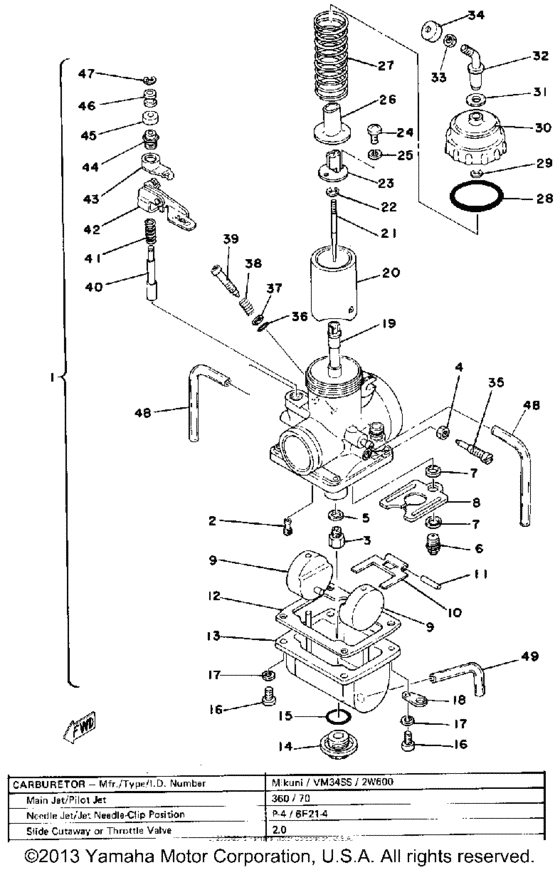

Carburetor Diagram Yamaha IT
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 175
- Model
- IT175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2W6-14101-00-00
Carburetor Assembly 1
|
2W6-14101-00-00 |
— | ||
|
2
|
2
193-14142-70-00 Jet, Pilot (# 70)70 |
193-14142-70-00 |
from US $11.88 |
||
|
3
|
3
137-14143-70-00 Jet, Main (350)350 |
137-14143-70-00 |
from US $9.77 |
||
|
3
|
3
137-14143-74-00 Jet, Main (370)370 |
137-14143-74-00 |
from US $10.67 |
||
|
3
|
3
137-14143-72-00 Jet, Main (360)360 STD |
137-14143-72-00 |
from US $9.77 |
||
|
4
|
4
802-14161-00-00 Nut, Cable Adjusting |
802-14161-00-00 |
from US $2 |
||
|
5
|
5
1G8-14153-00-00
Washer, Main Jet
|
1G8-14153-00-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
6
|
6
24X-14107-33-00 Needle Valve Set (#3.3) |
24X-14107-33-00 |
from US $56.30 |
||
|
7
|
7
239-14195-00-00 Washer, Needle Valve |
239-14195-00-00 |
from US $11.76 |
||
|
8
|
8
483-14146-00-00
Plate
|
483-14146-00-00 |
— | ||
|
9
|
9
310-14185-00-00
Float
|
310-14185-00-00 |
— | ||
|
10
|
10
310-14187-00-00
Arm, Float
|
310-14187-00-00 |
— | ||
|
11
|
11
127-14186-00-00 Pin, Float |
127-14186-00-00 |
from US $2.98 |
||
|
12
|
12
483-14184-00-00 Gasket, Float Chamber |
483-14184-00-00 |
from US $21.60 |
||
|
13
|
13
310-14181-16-00
Body, Float Chamber 1
|
310-14181-16-00 |
— | ||
|
14
|
14
500-14115-00-00 Plug, Screw |
500-14115-00-00 |
from US $30.60 |
||
|
15
|
15
558-14147-00-00 O-Ring |
558-14147-00-00 |
from US $9.07 |
||
|
16
|
16
985-80050-16-00
Screw, Pan Head
|
985-80050-16-00 |
— | ||
| replacement | |||||
|
16
|
16
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
17
|
17
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
18
|
18
313-14146-00-00 Plate |
313-14146-00-00 |
US $19.58 |
||
|
19
|
19
239-14141-44-00
Nozzle, Main P-4
|
239-14141-44-00 |
— | ||
|
20
|
20
509-14112-20-00
Valve, Throttle 1
|
509-14112-20-00 |
— | ||
|
21
|
21
239-14116-21-00
Needle (6F21-3)
6F21-3 |
239-14116-21-00 |
— | ||
|
22
|
22
164-14137-00-00
Clip
|
164-14137-00-00 |
— | ||
| replacement | |||||
|
22
|
22
3FA-14137-00-00 Clip |
3FA-14137-00-00 |
from US $2.69 |
||
|
23
|
23
509-14274-00-00
Connector
|
509-14274-00-00 |
— | ||
|
24
|
24
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
25
|
25
92990-03100-00 Washer, Spring |
92990-03100-00 |
from US $1.21 |
||
|
26
|
26
509-14136-00-00
Seat, Spring
|
509-14136-00-00 |
— | ||
|
27
|
27
363-14131-00-00
Spring, Throttle Valve
|
363-14131-00-00 |
— | ||
|
28
|
28
932-10402-89-00 O-Ring |
932-10402-89-00 |
US $5.81 |
||
|
29
|
29
363-14137-00-00 Clip |
363-14137-00-00 |
from US $12.13 |
||
|
30
|
30
500-14158-00-00
Top, Mixing Chamber (500-1415
500-1415 |
500-14158-00-00 |
— | ||
|
31
|
31
509-14198-00-00 Gasket |
509-14198-00-00 |
from US $13.60 |
||
|
32
|
32
500-14155-00-00
Guide, Cable
|
500-14155-00-00 |
— | ||
|
33
|
33
127-14161-00-00 Nut, Cable Adjusting |
127-14161-00-00 |
from US $4.96 |
||
|
34
|
34
1M1-14169-00-00 Cap |
1M1-14169-00-00 |
from US $7.97 |
||
| replacement | |||||
|
34
|
34
3X3-14169-00-00 Cap |
3X3-14169-00-00 |
from US $13.60 |
||
|
35
|
35
24X-14103-00-00
Throttle Screw Set
|
24X-14103-00-00 |
— | ||
| replacement | |||||
|
35
|
35
40T-14103-00-00 Throttle Screw Set |
40T-14103-00-00 |
from US $18.28 |
||
|
36
|
36
812-14147-00-00 O-Ring |
812-14147-00-00 |
from US $2.93 |
||
|
37
|
37
812-14235-00-00 Washer, Needle |
812-14235-00-00 |
from US $1.98 |
||
|
38
|
38
137-14134-00-00
Spring, Air Adjusting
|
137-14134-00-00 |
— | ||
| replacement | |||||
|
38
|
38
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
39
|
39
1G8-14123-00-00
Screw, Air Adjusting
|
1G8-14123-00-00 |
— | ||
|
40
|
40
1W1-14171-00-00
Plunger, Starter
|
1W1-14171-00-00 |
— | ||
|
41
|
41
256-14135-00-00
Coil, Spring
|
256-14135-00-00 |
— | ||
|
42
|
42
1W1-14175-01-00
Lever, Starter 1
|
1W1-14175-01-00 |
— | ||
|
43
|
43
275-14178-00-00
Plate, Starter Lever
|
275-14178-00-00 |
— | ||
|
44
|
44
802-14174-00-00
Cap, Plunger
|
802-14174-00-00 |
— | ||
|
45
|
45
802-14173-00-00
Cover, Plunger Cap
|
802-14173-00-00 |
— | ||
|
46
|
46
583-14918-00-00
Ring
|
583-14918-00-00 |
— | ||
|
47
|
47
737-14137-00-00 Clip |
737-14137-00-00 |
from US $2.05 |
||
|
48
|
48
310-14197-00-00 Hose |
310-14197-00-00 |
from US $4.82 |
||
| replacement | |||||
|
48
|
48
89A-14987-00-00 Hose |
89A-14987-00-00 |
from US $4.53 |
||
|
49
|
49
2J2-14196-00-00 Pipe |
2J2-14196-00-00 |
from US $25.08 |
||
