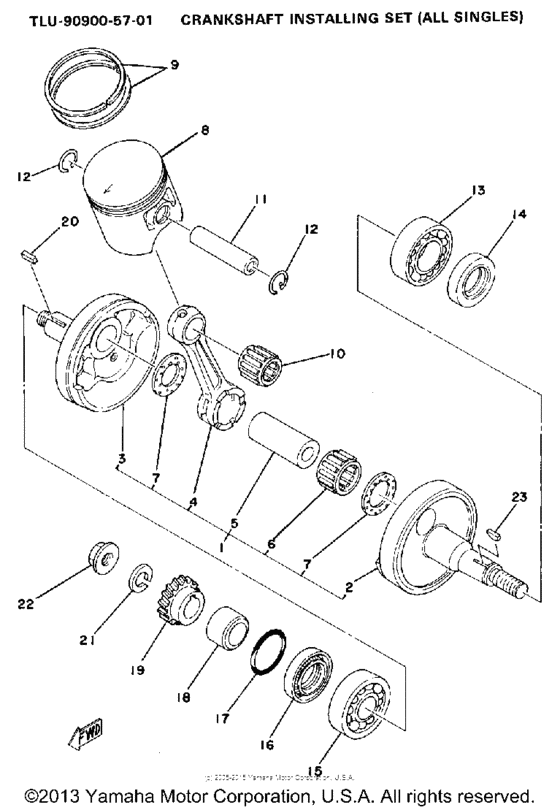

Crank-piston Diagram Yamaha IT
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 175
- Model
- IT175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2K5-11400-00-00
Crankshaft Assembly (1W1-11400-
1W1-11400- |
2K5-11400-00-00 |
— | ||
|
2
|
2
1W1-11412-01-00 Crank 1 |
1W1-11412-01-00 |
from US $157.50 |
||
|
3
|
3
1W1-11422-01-00 Crank 2 |
1W1-11422-01-00 |
from US $157.50 |
||
|
4
|
4
3R2-11651-01-00
Rod, Connecting
|
3R2-11651-01-00 |
— | ||
|
5
|
5
3M5-11681-00-00 Pin, Crank 1 |
3M5-11681-00-00 |
from US $9.26 |
||
|
6
|
6
933-10422-H0-00 Bearing, Cylinder.#10 |
933-10422-H0-00 |
from US $55.54 |
||
|
7
|
7
90209-22248-00 Washer, Special Shape |
90209-22248-00 |
from US $3.64 |
||
|
8
|
8
3R6-11631-00-96
Piston Std
|
3R6-11631-00-96 |
— | ||
|
8
|
8
3R6-11637-00-00
Piston 3 O/s 0.75
O/S 0.75 ALTERNATE PARTS |
3R6-11637-00-00 |
— | ||
|
8
|
8
2W6-11638-00-00
Piston 4 O/s 1.00
O/S 1.00 ALTERNATE PARTS |
2W6-11638-00-00 |
— | ||
|
8
|
8
2W6-11635-00-00
Piston 1 O/s 0.25
O/S 0.25 ALTERNATE PARTS |
2W6-11635-00-00 |
— | ||
|
8
|
8
3R6-11636-00-00
Piston 2 O/s 0.50
O/S 0.50 ALTERNATE PARTS |
3R6-11636-00-00 |
— | ||
|
9
|
9
3JM-11601-00-00 Piston Ring Set (Std) |
3JM-11601-00-00 |
from US $63.20 |
||
|
9
|
9
3JM-11601-10-00 Piston Ring Set (0.25Mm O/s)0.25MM O/S ALTERNATE PARTS |
3JM-11601-10-00 |
from US $62.96 |
||
|
9
|
9
3JM-11601-20-00 Piston Ring Set (0.50Mm O/s)0.50MM O/S ALTERNATE PARTS |
3JM-11601-20-00 |
from US $61.88 |
||
|
9
|
9
43G-11601-30-00 Piston Ringset 3RdPiston ring set (3rd 0/s) 3RD ALTERNATE PARTS |
43G-11601-30-00 |
US $49.01 |
||
|
9
|
9
43G-11601-40-00
Piston Ringset 4Th
4TH ALTERNATE PARTS |
43G-11601-40-00 |
— | ||
|
10
|
10
93310-216E1-00 Bearing |
93310-216E1-00 |
from US $8.28 |
||
|
11
|
11
251-11633-00-00 Pin, Piston |
251-11633-00-00 |
from US $18.84 |
||
|
12
|
12
93450-17025-00 Circlip |
93450-17025-00 |
from US $1.70 |
||
|
13
|
13
933-06205-29-00 Bearing |
933-06205-29-00 |
from US $16.20 |
||
|
14
|
14
931-03251-25-00 Oil Seal, Sw-Type |
931-03251-25-00 |
from US $13.03 |
||
|
15
|
15
93306-30421-00 Bearing |
93306-30421-00 |
from US $32.44 |
||
| replacement | |||||
|
15
|
15
933-06304-42-00 Bearing |
933-06304-42-00 |
from US $26.21 |
||
|
16
|
16
93103-28011-00 Oil Seal, Sw-Type (93103-28100)93103-28100 |
93103-28011-00 |
from US $5.96 |
||
|
17
|
17
93210-180A6-00 O-Ring |
93210-180A6-00 |
from US $3.14 |
||
|
18
|
18
90387-20488-00 Collar |
90387-20488-00 |
from US $13.46 |
||
|
19
|
19
1W1-16111-00-00
Gear, Pri Drive
|
1W1-16111-00-00 |
— | ||
|
20
|
20
90282-05005-00 Key, Straight |
90282-05005-00 |
from US $1.70 |
||
|
21
|
21
90204-12007-00 Washer, Spring |
90204-12007-00 |
from US $3.26 |
||
|
22
|
22
901-79122-44-00
Nut
|
901-79122-44-00 |
— | ||
| replacement | |||||
|
22
|
22
90179-12659-00 Nut |
90179-12659-00 |
from US $1.70 |
||
|
23
|
23
90280-03017-00 Key, Woodruff |
90280-03017-00 |
from US $1.70 |
||
