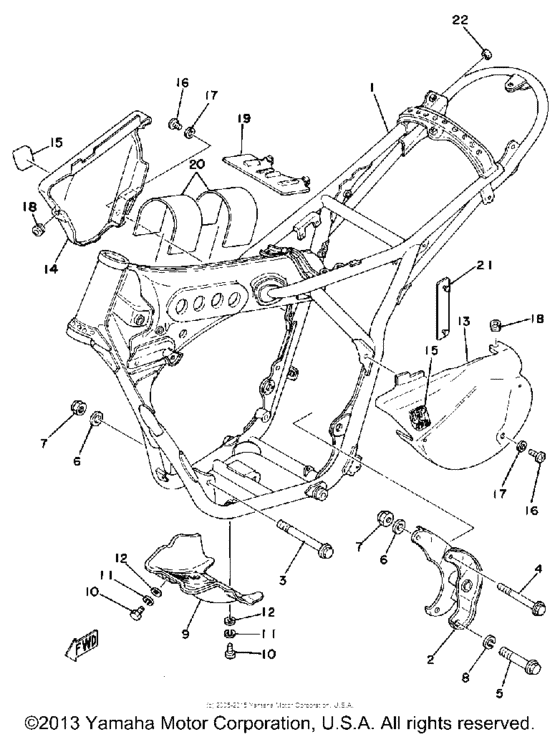

Frame-side cover Diagram Yamaha IT
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 175
- Model
- IT175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2W6-21110-01-33
Frame
|
2W6-21110-01-33 |
— | ||
|
2
|
2
1W1-21410-00-00
Engine Brkt
|
1W1-21410-00-00 |
— | ||
|
3
|
3
90105-08099-00 Bolt, FlangeM8-115L |
90105-08099-00 |
from US $5.81 |
||
|
4
|
4
90105-08100-00
Bolt, Flange
M8-95L |
90105-08100-00 |
— | ||
| replacement | |||||
|
4
|
4
95817-08095-00 Bolt, Flange(8Bt)M8-95L |
95817-08095-00 |
from US $3.40 |
||
|
5
|
5
90105-10037-00 Bolt, FlangeM10-80L |
90105-10037-00 |
from US $6.52 |
||
|
6
|
6
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
7
|
7
901-85080-89-00
Nut, Self-Locking
|
901-85080-89-00 |
— | ||
| replacement | |||||
|
7
|
7
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
8
|
8
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
8
|
8
92901-10100-00 Washer, Spring |
92901-10100-00 |
from US $1.50 |
||
| replacement | |||||
|
8
|
8
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
9
|
9
2W6-21471-00-00
Protector, Engine
|
2W6-21471-00-00 |
— | ||
|
10
|
10
97313-08018-00 Bolt, Hex |
97313-08018-00 |
from US $6.37 |
||
| replacement | |||||
|
10
|
10
901-01086-91-00 Bolt(Ja9) |
901-01086-91-00 |
from US $7.37 |
||
|
11
|
11
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
12
|
12
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
12
|
12
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
13
|
13
1W2-21711-00-00
Cover, Side 1
SKY BLUE/6COMP. YELLOW |
1W2-21711-00-00 |
— | ||
|
14
|
14
1W2-21721-01-00
Cover, Side 2
|
1W2-21721-01-00 |
— | ||
|
15
|
15
2W6-14729-00-00
Emblem, Protector
|
2W6-14729-00-00 |
— | ||
|
16
|
16
98903-06012-00 Screw, Bind |
98903-06012-00 |
from US $1.07 |
||
| replacement | |||||
|
16
|
16
98980-06012-00 Screw, Bind |
98980-06012-00 |
from US $1.07 |
||
|
17
|
17
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
17
|
17
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
18
|
18
90480-12053-00 Grommet |
90480-12053-00 |
from US $1.66 |
||
|
19
|
19
1W1-24181-00-00
Damper, Locating 1
|
1W1-24181-00-00 |
— | ||
|
20
|
20
1W1-24183-00-00
Damper, Locating 3
|
1W1-24183-00-00 |
— | ||
|
21
|
21
537-21732-00-00
Seal 1
|
537-21732-00-00 |
— | ||
|
22
|
22
90339-12003-00
Plug
|
90339-12003-00 |
— | ||
|
22
|
22
1W2-27000-10-00
Main Stand Kit 78
78 OPTIONAL PARTS |
1W2-27000-10-00 |
— | ||
