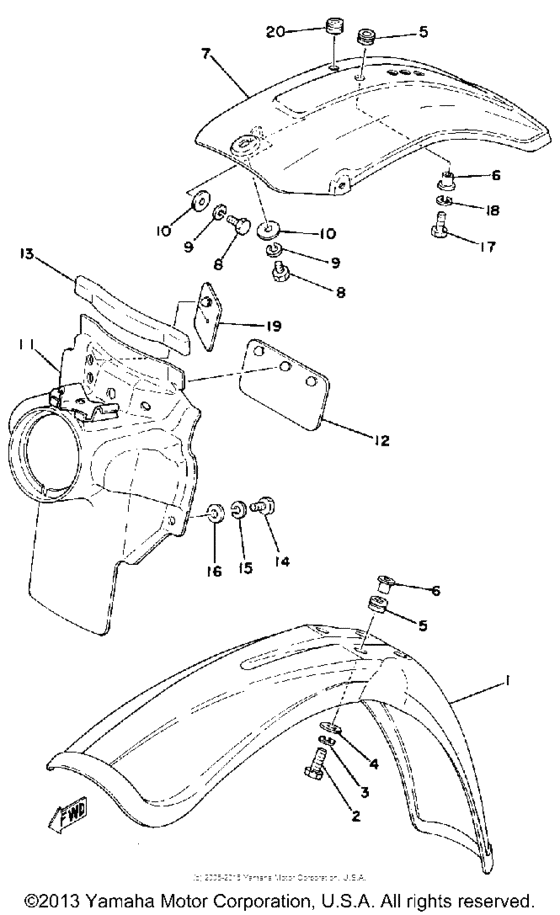

Front fender-rear fender Diagram Yamaha IT
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 175
- Model
- IT175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
999-99021-58-00
Fender, Front Set
|
999-99021-58-00 |
— | ||
|
2
|
2
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
2
|
2
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
3
|
3
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
4
|
4
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
4
|
4
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
5
|
5
90480-14198-00 Grommet |
90480-14198-00 |
from US $4.39 |
||
|
6
|
6
903-87073-91-00 Collar |
903-87073-91-00 |
from US $1.84 |
||
|
7
|
7
1W2-21611-00-00
Fender, Rear
|
1W2-21611-00-00 |
— | ||
|
8
|
8
97301-06014-00 Bolt, Hexagon |
97301-06014-00 |
from US $1.84 |
||
| replacement | |||||
|
8
|
8
97017-06014-00 Bolt(8Cp) |
97017-06014-00 |
from US $1.84 |
||
|
9
|
9
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
10
|
10
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
10
|
10
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
11
|
11
2W6-21620-00-00
Guard, Mud
|
2W6-21620-00-00 |
— | ||
|
12
|
12
1M1-21621-00-00 Flap |
1M1-21621-00-00 |
from US $8.82 |
||
|
13
|
13
565-21746-00-00
Damper
|
565-21746-00-00 |
— | ||
|
14
|
14
97301-06014-00 Bolt, Hexagon |
97301-06014-00 |
from US $1.84 |
||
| replacement | |||||
|
14
|
14
97017-06014-00 Bolt(8Cp) |
97017-06014-00 |
from US $1.84 |
||
|
15
|
15
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
16
|
16
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
16
|
16
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
17
|
17
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
17
|
17
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
18
|
18
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
19
|
19
1W2-21621-00-00
Flap
|
1W2-21621-00-00 |
— | ||
|
20
|
20
90480-15058-00 Grommet |
90480-15058-00 |
from US $1.35 |
||
