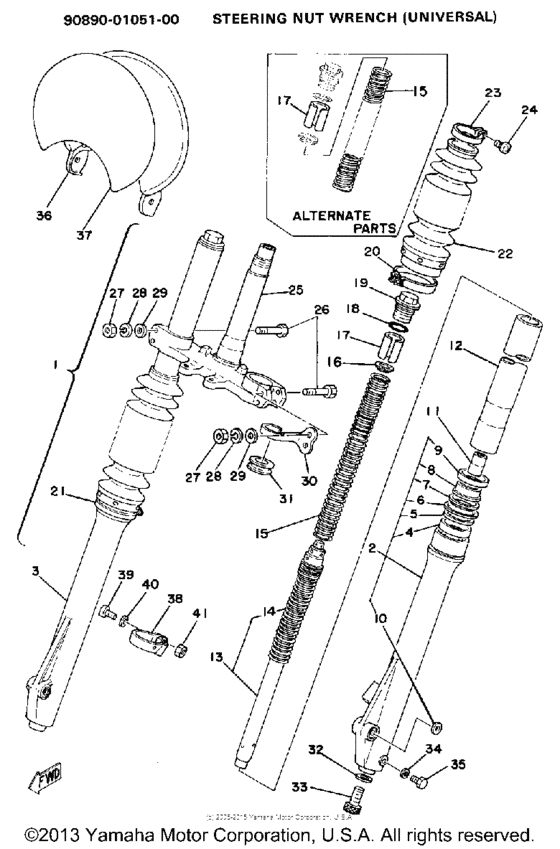

Front fork Diagram Yamaha IT
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 175
- Model
- IT175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2W6-23101-00-00
Front Fork Assembly
|
2W6-23101-00-00 |
— | ||
|
2
|
2
2W6-23126-00-00
Tube, Outer 1
|
2W6-23126-00-00 |
— | ||
|
3
|
3
2W6-23136-00-00
Tube, Outer 2
|
2W6-23136-00-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
48Y-23145-00-00 Oil Seal |
48Y-23145-00-00 |
from US $16.86 |
||
|
5
|
5
509-23146-L0-00
Washer, Oil Seal
|
509-23146-L0-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
6
|
6
1W1-23156-L0-00
Clip, Oil Seal
|
1W1-23156-L0-00 |
— | ||
|
7
|
7
1W1-23153-L0-00
Ring, Snap
|
1W1-23153-L0-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
2W6-23144-00-00
Seal, Dust
|
2W6-23144-00-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
999-99015-10-00
Cover, Dust Seal
|
999-99015-10-00 |
— | ||
|
10
|
10
1W1-23168-L0-00
Cap, Front Fork
|
1W1-23168-L0-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
1W1-23173-L0-00 Taper Spindle |
1W1-23173-L0-00 |
from US $24.65 |
||
|
12
|
12
2W6-23110-00-00
Inner Tube 1
|
2W6-23110-00-00 |
— | ||
|
13
|
13
2W6-23170-00-00
Cylinder, Frtfrk
|
2W6-23170-00-00 |
— | ||
|
14
|
14
1G8-23151-L0-00
Spring, Rebound
|
1G8-23151-L0-00 |
— | ||
|
15
|
15
2W6-23141-00-00
Spring, Front Fork
|
2W6-23141-00-00 |
— | ||
|
16
|
16
583-23142-00-00
Seat, Spring Upper
|
583-23142-00-00 |
— | ||
|
17
|
17
2W6-23118-00-00
Spacer
|
2W6-23118-00-00 |
— | ||
|
18
|
18
240-23114-00-00 Gasket |
240-23114-00-00 |
from US $5.24 |
||
|
19
|
19
2W6-23111-00-00
Bolt, Cap (583-23111-00)
583-23111-00 |
2W6-23111-00-00 |
— | ||
|
20
|
20
1W1-23318-L0-00
Holder, Cable 1
|
1W1-23318-L0-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
21
|
21
509-23489-L0-00
Band
|
509-23489-L0-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
2N6-23191-00-00 Boot, Front Fork |
2N6-23191-00-00 |
from US $49.03 |
||
|
23
|
23
341-92090-60-00 Band, B00T |
341-92090-60-00 |
from US $28.30 |
||
|
24
|
24
509-23194-L0-00 Screw, Boot Band |
509-23194-L0-00 |
from US $2.98 |
||
|
25
|
25
2X7-23340-00-33
Under Bracket
|
2X7-23340-00-33 |
— | ||
|
26
|
26
90101-08340-00 Bolt |
90101-08340-00 |
from US $5.04 |
||
|
27
|
27
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
| replacement | |||||
|
27
|
27
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
28
|
28
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
29
|
29
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
29
|
29
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
30
|
30
1W1-23317-01-00
Holder, Cable
|
1W1-23317-01-00 |
— | ||
|
31
|
31
1W1-23389-00-00 Guide, Cable |
1W1-23389-00-00 |
from US $12.75 |
||
|
32
|
32
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $3.54 |
||
|
33
|
33
1T3-23181-50-00
Bolt, Hex Sckt Head
|
1T3-23181-50-00 |
— | ||
|
34
|
34
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
35
|
35
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.21 |
||
|
36
|
36
1W2-23485-00-00
Plate, Number
|
1W2-23485-00-00 |
— | ||
|
37
|
37
1W2-23395-00-00
Emblem
|
1W2-23395-00-00 |
— | ||
|
38
|
38
1W2-23318-00-00
Holder, Cable 1
|
1W2-23318-00-00 |
— | ||
|
39
|
39
98501-05018-00 Screw, Pan Head |
98501-05018-00 |
from US $1.56 |
||
| replacements | |||||
|
39
|
39
98507-05018-00 Screw, Pan Head |
98507-05018-00 |
from US $1.34 |
||
|
39
|
39
98580-05018-00 Screw Panhead (669) |
98580-05018-00 |
from US $1.34 |
||
|
40
|
40
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
40
|
40
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
40
|
40
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.07 |
||
